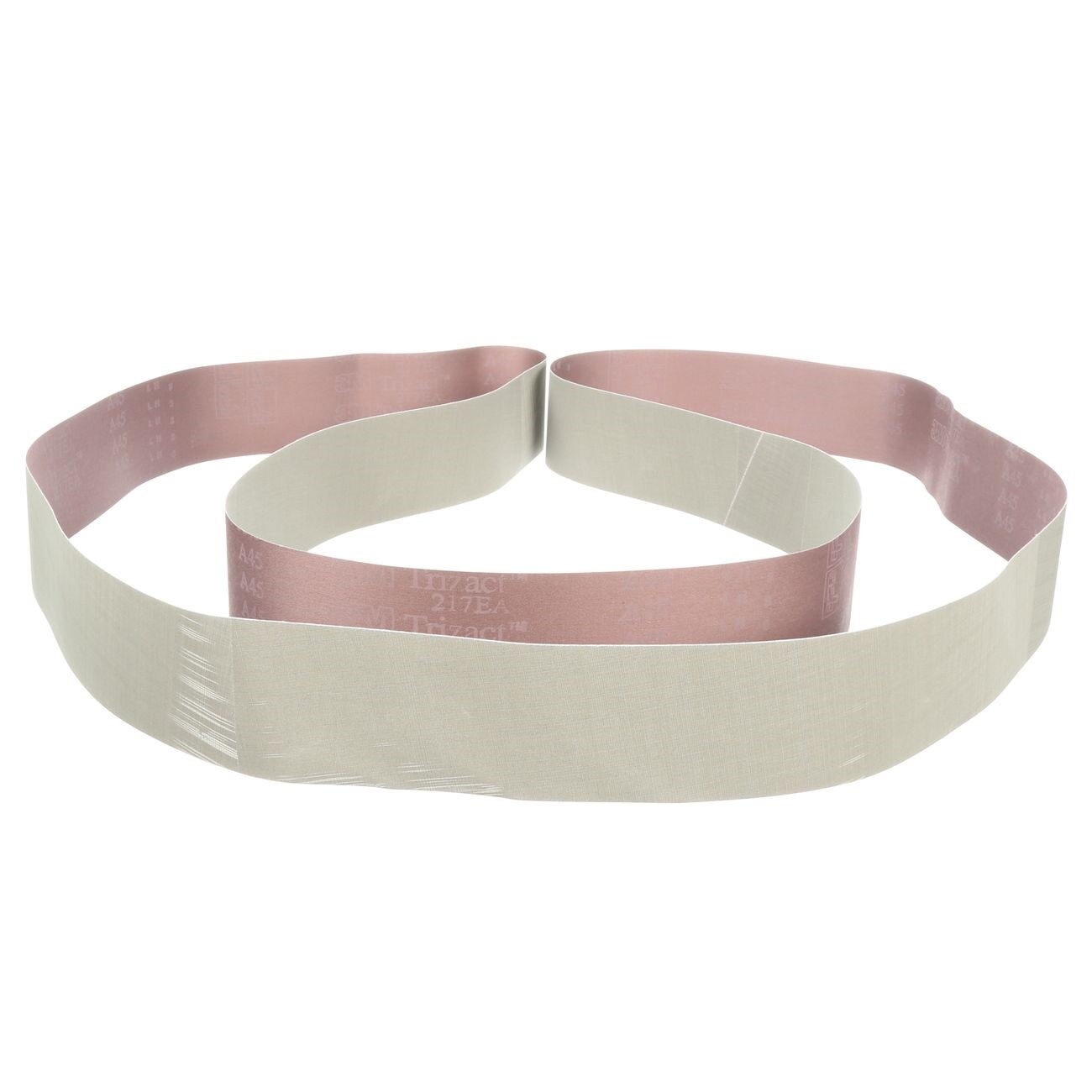

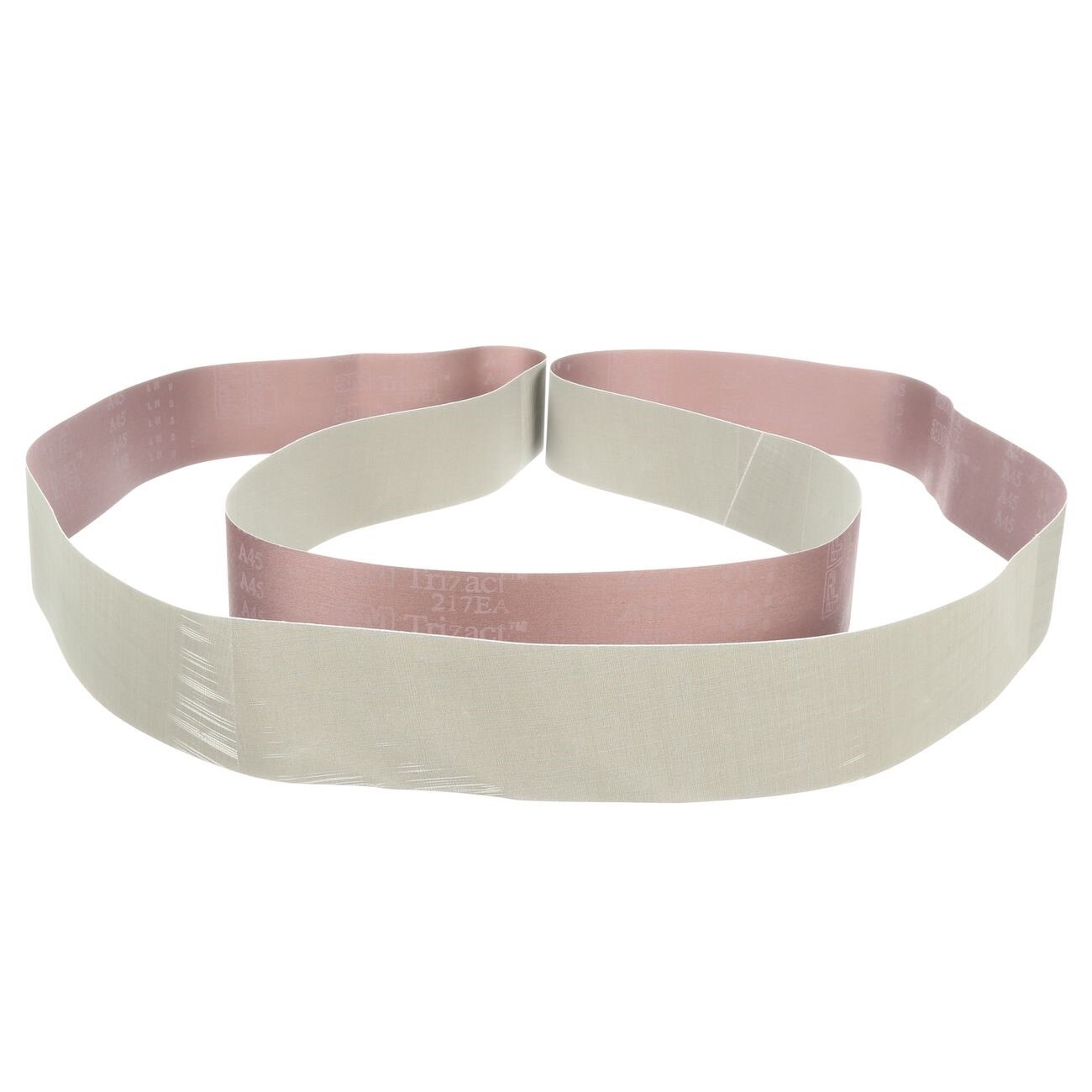

3M 7010294496 Trizact 217EA Abrasive Belt 60x1.5 in

Product Description

The 3M 7010294496 Trizact 217EA is a coated abrasive belt engineered for intermediate finishing and fine polishing applications in metalworking and fabrication. It uses microreplicated pyramid technology, in which micron-graded aluminum oxide particles are formed into uniform pyramid structures on a JE-weight rayon cloth backing. As the pyramids wear, fresh mineral is continuously exposed, delivering a consistent cut rate and predictable finish throughout the life of the belt. The grinding aid built into the construction helps reduce heat buildup, limiting the risk of warping or discoloration on heat-sensitive workpieces.

This belt is suited for light-pressure finishing operations ahead of plating, buffing, or final surface prep. The flexible JE-weight rayon backing conforms to contoured and irregular surfaces, making it practical for detail work and shaped components. Its consistent performance characteristics also make it a reliable choice for automated and robotic finishing lines where repeatability is critical. Fabricators, metal finishers, and production shop technicians are the primary users of this product.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh abrasive mineral for consistent cut throughout belt life
• JE-weight rayon cloth backing flexes over contoured surfaces for uniform contact and finish
• Produces finer surface finishes than conventional coated abrasive belts
• Grinding aid reduces heat generation, minimizing risk of workpiece warping and discoloration
• Engineered for light-pressure applications including pre-plate and pre-buff finishing
• Consistent abrasive life supports use in robotic and automated finishing systems

Compatibility

Designed for use on compatible belt finishing machines accepting a 60-inch length by 1.5-inch width abrasive belt. Appropriate for ferrous and non-ferrous metals in intermediate finishing and fine polishing operations prior to plating or buffing.

Installation Notes

Installation should be performed by trained personnel familiar with abrasive belt machinery. Power down and lockout the machine before mounting or replacing the belt. Verify belt tracking and tension according to the equipment manufacturer's specifications before resuming operation. Inspect the belt for damage or fraying prior to each use and replace immediately if defects are found.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: JE-weight Rayon Cloth
• Belt Length: 60 inches
• Belt Width: 1.5 inches
• Weight: 0.12 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 50
• UPC: 00051125157100

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010294496
