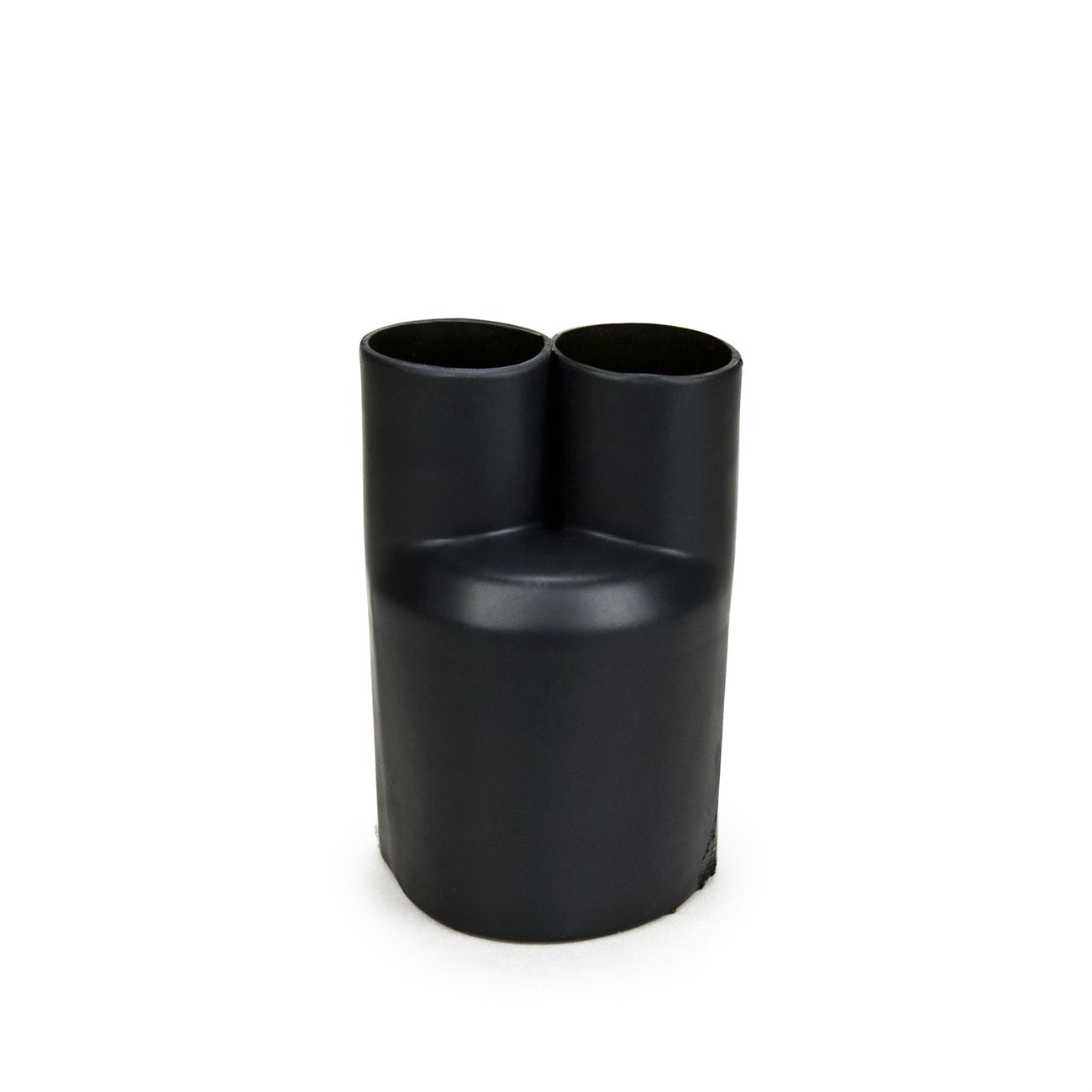

3M 7010293610 Heat Shrinkable Cable Breakout Boot

Product Description

The 3M 7010293610 is a heat shrinkable cable breakout boot designed to insulate and seal cable breakouts in multiconductor armored or sheathed cables and conduit ends. Sold as a single unit, this boot carries the model designation HDBB-230-1-250 and features a 2-way outlet configuration in black. It is constructed from flame retardant, cross-linked polyolefin material meeting the requirements of MIL-I-81765-1. An internal adhesive coating is factory applied to ensure reliable environmental sealing once the boot is shrunk in place. Electrical contractors and cable assembly technicians install this boot wherever dependable mechanical and electrical protection is required at cable breakout points.

This boot is suited for use in multiconductor armored cable assemblies and sheathed cable installations where the cable transitions from a single run into multiple conductor paths. It is also applicable at conduit ends requiring environmental protection. The 2-way outlet design accommodates a single cable entry splitting into two exits, making it a practical solution in industrial wiring, control panel builds, and infrastructure cable management applications where environmental sealing and flame retardancy are required by specification.

Key Features

• Heat shrinkable cross-linked polyolefin construction provides durable insulation at cable breakout points
• Flame retardant material meets MIL-I-81765-1 material requirements
• Internal adhesive coating activates during shrink process for reliable environmental sealing
• 2-way outlet configuration for single-entry, dual-exit cable breakouts
• Black color for standard cable management identification

Compatibility

Designed for use with multiconductor armored or sheathed cables and conduit ends requiring heat shrinkable breakout boot protection at cable transition points.

Installation Notes

Installation is performed by licensed electricians or qualified cable assembly technicians. Power down and de-energize all circuits before working on cable assemblies. Apply uniform heat using an appropriate heat gun, working from the center of the boot outward toward the outlets to ensure even shrinkage and proper adhesive activation. Do not use an open flame as the heat source, as uneven temperatures can damage the boot or prevent a proper environmental seal.

Technical Specifications

• Configuration: 2-Way Outlet
• Color: Black
• Material: Flame Retardant Cross-Linked Polyolefin
• Internal Coating: Adhesive for Environmental Sealing
• Military Specification: MIL-I-81765-1
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 00051135359938

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010293610
