3M 7010292774 Convolute Light Deburring Wheel 12 in

Product Description

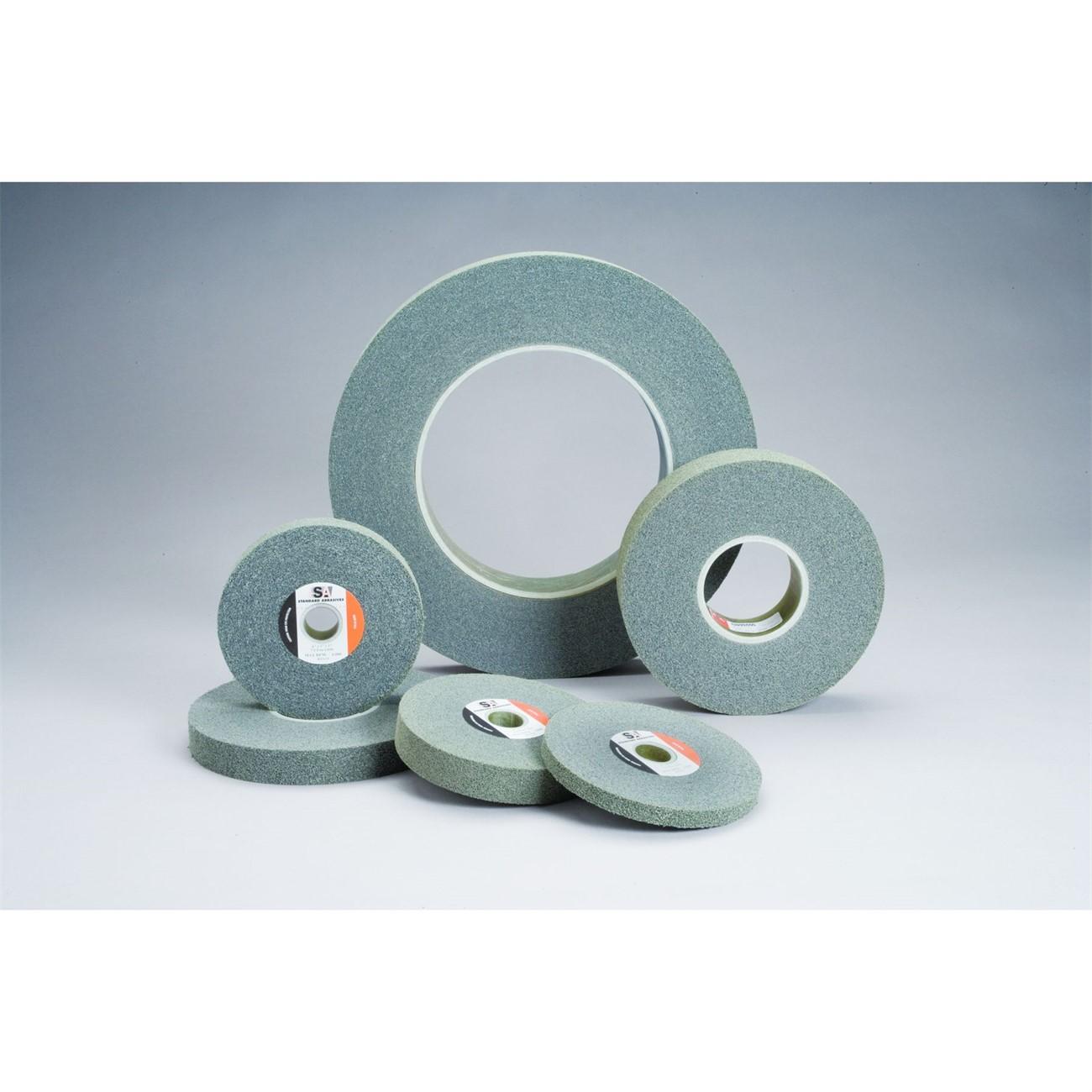

The 3M 7010292774 is a convolute light deburring wheel designed for finishing and deburring parts that require critical tolerances. Built with a soft density construction, the abrasive material conforms to the substrate surface, reducing the risk of undercutting or gouging during use. The wheel measures 12 inches in diameter with a 5-inch arbor and weighs approximately 4 pounds. Its non-metallic composition prevents workpiece contamination, and the construction maintains a smear-resistant finish throughout the service life of the wheel. Licensed trades and production technicians working with precision components will find this wheel suited to both manual and automated material finishing operations.

This wheel is appropriate for use on automated equipment, straight-shaft stationary tools, portable tools, and feed-through machines. It is well suited to light deburring tasks, blending machine marks and belt marks, and finishing small parts in production or job-shop environments. The soft density design delivers a fast finish rate, requiring less operator effort compared to denser wheel constructions. Both metalworking and fabrication applications benefit from this wheel where surface integrity and part tolerance are priorities.

Key Features

• Soft density abrasive conforms to substrate, preventing undercutting and gouging
• Non-metallic construction eliminates risk of workpiece contamination
• Fast finish rate reduces operator effort during deburring and blending operations
• Maintains a smear-resistant finish on finished surfaces
• Compatible with automated equipment, stationary tools, portable tools, and feed-through machines
• Suitable for blending machine marks, belt marks, and finishing small precision parts

Compatibility

Designed for use on automated equipment, straight-shaft stationary and portable tools, and feed-through machines where a convolute light deburring wheel with a 12-inch diameter and 5-inch arbor is required.

Installation Notes

Installation and mounting should be performed by qualified personnel following the tool or machine manufacturer's guidelines. Always power down and isolate the equipment before mounting or removing the wheel. Verify that the spindle speed rating of the machine does not exceed the rated speed of the wheel before operation. Inspect the wheel for damage before each use and never use a damaged or cracked wheel.

Technical Specifications

• Wheel Diameter: 12 inches
• Arbor Size: 5 inches
• Wheel Type: Convolute
• Density: Light (Soft)
• Package Dimensions: 12.38 x 12.38 x 3.75 inches
• Weight: 4.019 pounds
• Unit of Measure: Each
• UPC: 051115433141

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010292774
