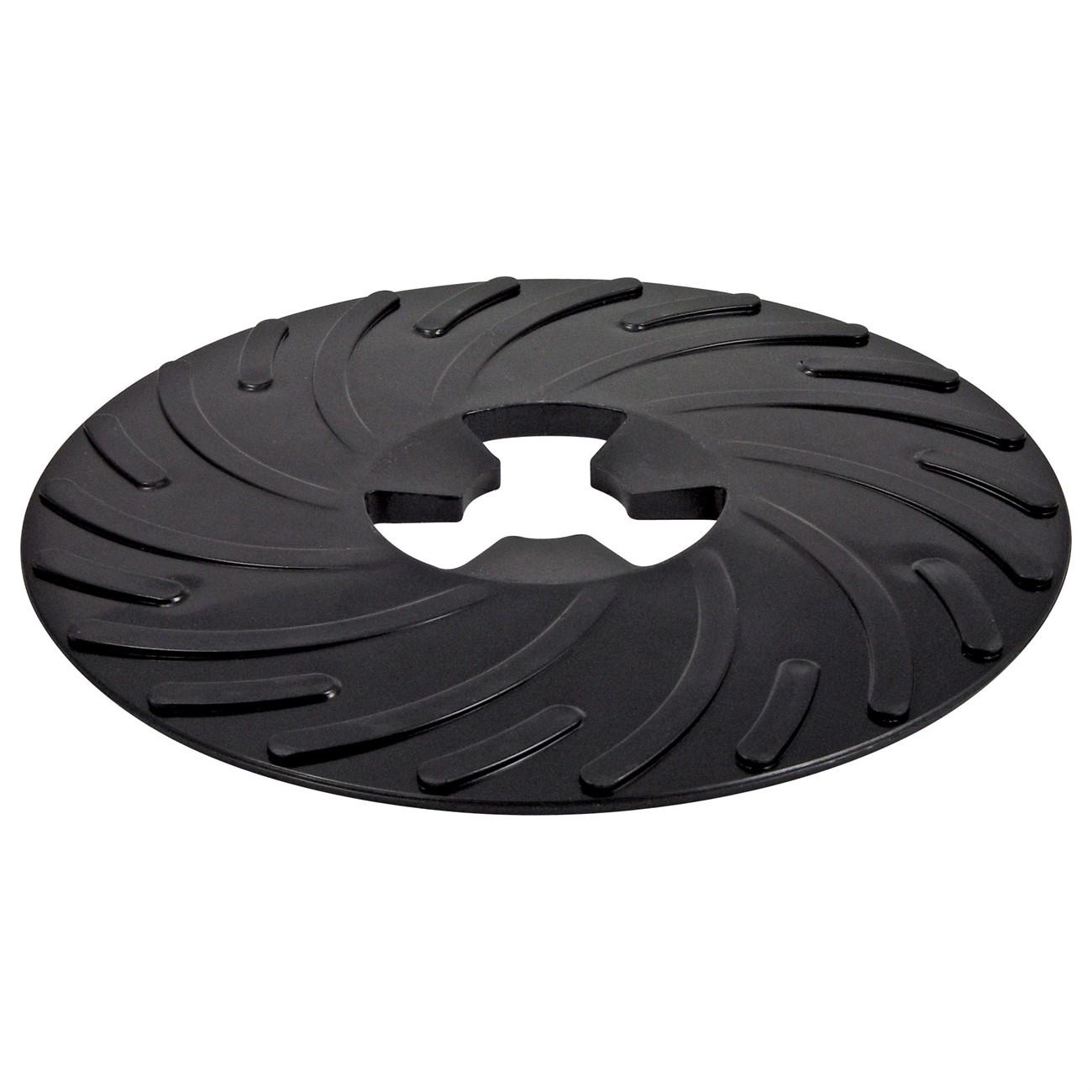

3M 7000148244 Disc Pad Face Plate Ribbed 9 Inch

Product Description

The 3M 7000148244 is a ribbed disc pad face plate designed to reduce heat buildup during grinding and finishing operations. The ribbed surface geometry allows air to circulate between the pad and the disc, resulting in a cooler running disc and extended abrasive life. Constructed in a hard black formulation, this face plate is sized for 9-inch diameter fibre discs with a 7/8-inch arbor hole. It is compatible with standard disc pad hubs and is intended for use by metalworking professionals, fabricators, and grinding technicians in production and maintenance environments.

This face plate is used in angle grinder and disc grinder setups where 9-inch fibre discs are the abrasive of choice. It accepts a 4-1/2-inch disc pad hub or a 2-1/2-inch hub, offering flexibility in tool configuration depending on the application. Typical use cases include weld blending, surface preparation, and stock removal on metal workpieces in fabrication shops and industrial maintenance settings.

Key Features

• Ribbed surface design promotes airflow for cooler disc operation and reduced heat-related wear
• Hard black construction provides firm, consistent backing for aggressive material removal
• Compatible with 4-1/2-inch or 2-1/2-inch disc pad hubs for configuration flexibility
• Sized for 9-inch diameter x 7/8-inch fibre discs
• Sold individually (each)

Compatibility

Designed for use with 9-inch diameter x 7/8-inch fibre discs. Accepts a 4-1/2-inch disc pad hub or a 2-1/2-inch hub.

Installation Notes

Installation and replacement should be performed by a qualified operator familiar with angle grinder safety procedures. Ensure the grinder is powered off and unplugged before mounting or removing the face plate. Verify that the hub size and disc diameter match the face plate specifications before use. Follow applicable ANSI B7 grinding safety standards and all tool manufacturer guidelines.

Technical Specifications

• Disc Diameter: 9 inches
• Arbor Size: 7/8 inches
• Backing Hardness: Hard
• Color: Black
• Compatible Hub Sizes: 4-1/2 inches, 2-1/2 inches
• Weight: 0.66 pounds
• UPC: 00051144817290

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000148244
