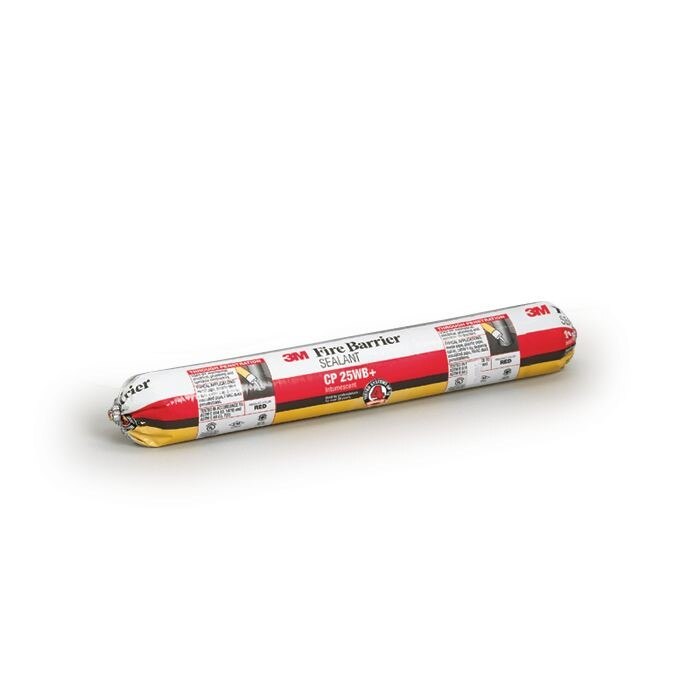

3M 7000145569 Cp 25WB+ Firestop Sealant 20 Fl Oz

Product Description

The 3M 7000145569 is a latex-based intumescent firestop sealant designed for use in fire-rated construction assemblies. When properly installed in tested and listed systems, it provides up to 4-hour fire protection. The sealant expands under heat to block the spread of fire, smoke, and noxious gases through penetrations in fire-rated walls, floors, and ceilings. It dries to a red color for easy visual inspection and requires no mixing. It also functions as an acoustic barrier, achieving an STC rating of 54 when tested in an STC 54-rated wall assembly.

This product is suited for commercial and residential construction where penetrating items such as conduit, pipe, cable, and duct pass through fire-rated assemblies. It is installed by licensed contractors, fire protection specialists, and journeyman tradespeople working on new construction or retrofit projects that must meet International Building Code requirements and other life-safety code mandates. The sausage-style packaging is compatible with standard bulk sausage guns for controlled application in confined penetration openings.

Key Features

• Intumescent latex formula expands under heat to seal fire, smoke, and gas penetrations
• Up to 4-hour fire protection in tested and listed systems when properly installed
• Dries red for straightforward visual confirmation of applied coverage
• STC rating of 54 provides effective acoustic barrier performance in rated wall assemblies
• Meets IBC and other key life-safety building code requirements
• Meets VOC environmental regulations in line with LEED intent
• No mixing required — ready to apply directly from sausage packaging

Compatibility

Designed for use in tested and listed firestop systems where penetrating items pass through fire-rated wall and floor assemblies in commercial and residential construction.

Installation Notes

Installation must be performed by qualified personnel familiar with firestop system requirements under the International Building Code and applicable local life-safety codes. Confirm the specific tested and listed system designation before applying to ensure the installation meets the required fire-resistance rating. Follow the published system drawing for correct sealant depth and penetrating item annular space dimensions. Do not substitute components or deviate from listed system specifications.

Technical Specifications

• Fire Protection Rating: Up to 4 hours in tested and listed systems
• STC Rating: 54 (tested in STC 54-rated wall assembly)
• Formula Type: Latex-based intumescent
• Dry Color: Red
• Package Style: Sausage, 20 fl oz
• Weight: 2.05 pounds
• UPC: 00051115116421

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000145569
