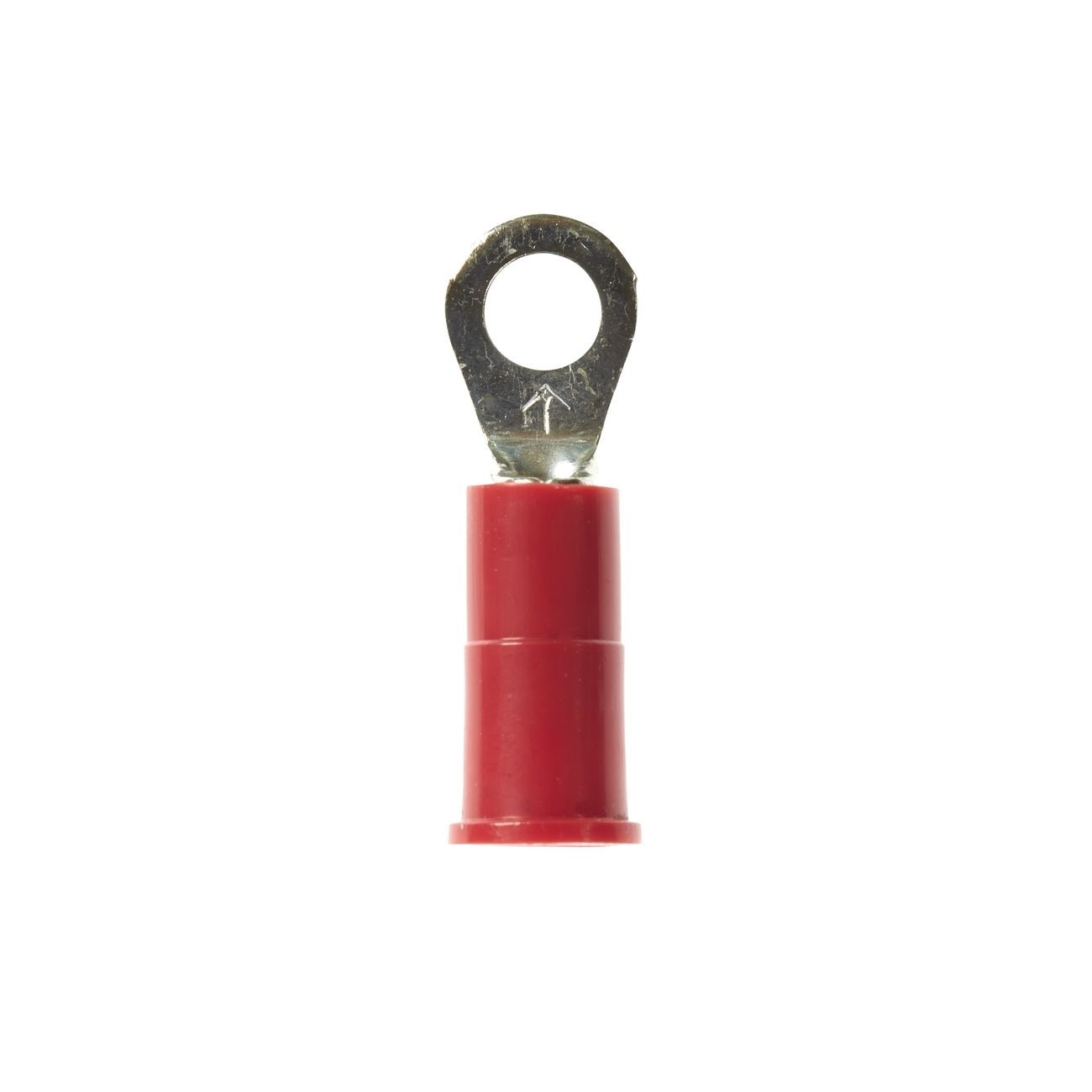

3M 7000133683 Vinyl Insulated Ring Terminal Awg 22-18

Product Description

The 3M 7000133683 is a vinyl insulated ring terminal designed for secure wire-to-stud electrical connections in light commercial and residential wiring applications. Compatible with AWG 22-18 wire gauge, it features a closed-ring tongue style that requires the mounting screw to be fully removed before the terminal can be disconnected — making it one of the most secure tongue configurations for permanent terminations. The vinyl insulation sleeve provides basic protection against abrasion and incidental contact. Sold in packs of 10 bags, this terminal suits bench-stock and service-van inventory for electricians and installers working with low-voltage control wiring.

This ring terminal is suited for control panel wiring, low-voltage circuit terminations, and general electrical assembly work where a stud size 8 fastener is used. It is commonly installed in HVAC control boards, electrical enclosures, and equipment junction points where a vibration-resistant, non-removable connection is required. The AWG 22-18 wire range covers the fine-gauge conductors typical of thermostat wiring, sensor leads, and light-load control circuits.

Key Features

• Closed ring tongue style — terminal stays in place unless mounting screw is removed
• Accepts AWG 22-18 wire gauge for fine-gauge and light-load control wiring
• Fits stud size 8 mounting hardware
• Vinyl insulation sleeve provides abrasion resistance and basic electrical isolation
• Sold in packs of 10 bags for easy bench-stock replenishment

Compatibility

Designed as a standard ring terminal replacement for AWG 22-18 conductors terminated to stud size 8 fasteners in control wiring, electrical panels, and equipment enclosures.

Installation Notes

Installation is typically performed by licensed electricians or HVAC technicians during control wiring termination or panel assembly work. Always de-energize the circuit and verify zero voltage with a meter before making or breaking any terminal connections. Use a properly sized wire stripper and crimping tool rated for insulated terminals to ensure a reliable mechanical and electrical crimp. Follow applicable NEC requirements for terminal sizing and conductor preparation.

Technical Specifications

• Wire Gauge: AWG 22-18
• Stud Size: 8
• Terminal Style: Ring
• Insulation Material: Vinyl
• Package Quantity: 10 bags
• Weight: 0.07 pounds
• UPC: 00051128600467

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133683
