3M 7000133650 Block Fork Insulated 16 to 14 AWG Conductor Butted Seam

Product Description

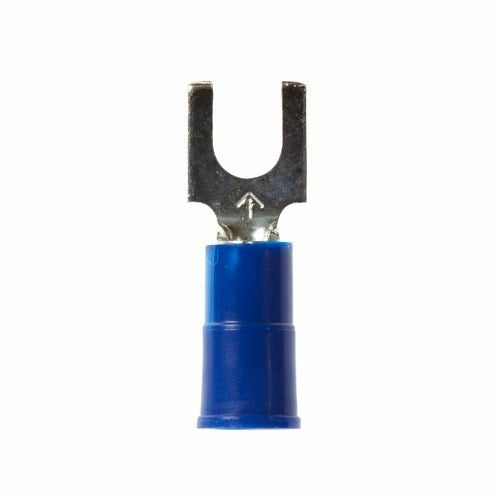

The 3M Block Fork Terminal MPN 7000133650 is designed for secure electrical connections in various applications. This terminal is ideal for use with 16 to 14 AWG conductors and is rated for 600 VAC. It features a butted seam barrel and a funnel-designed polyvinyl chloride sleeve to ensure easy wire insertion. Made from electrolytic copper with a tin-plated finish, it provides reliable conductivity while resisting corrosion.

• Crimp connection for strong electrical connections
• Funnel sleeve for easy wire insertion
• Vinyl insulation prevents electrical shorts

Product Highlights

This product is suitable for terminal block applications and meets various industry standards, ensuring safe and efficient performance.

Product Information

Standard Information

• Manufacturer: 3M
• Min Order Quantity: 1

Technical Specifications

• Type: Block Insulated
• Voltage Rating: 600 VAC
• Conductor Size: 16 to 14 AWG
• Temperature Rating: -40 to 221 degrees F
• Stud Size: #8
• Barrel Size: 1/4 inches L
• Color: Blue
• Material: Electrolytic Copper/Vinyl
• Finish: Tin Plated
• Dimensions: 0.3 inches W x 0.03 inches THK
