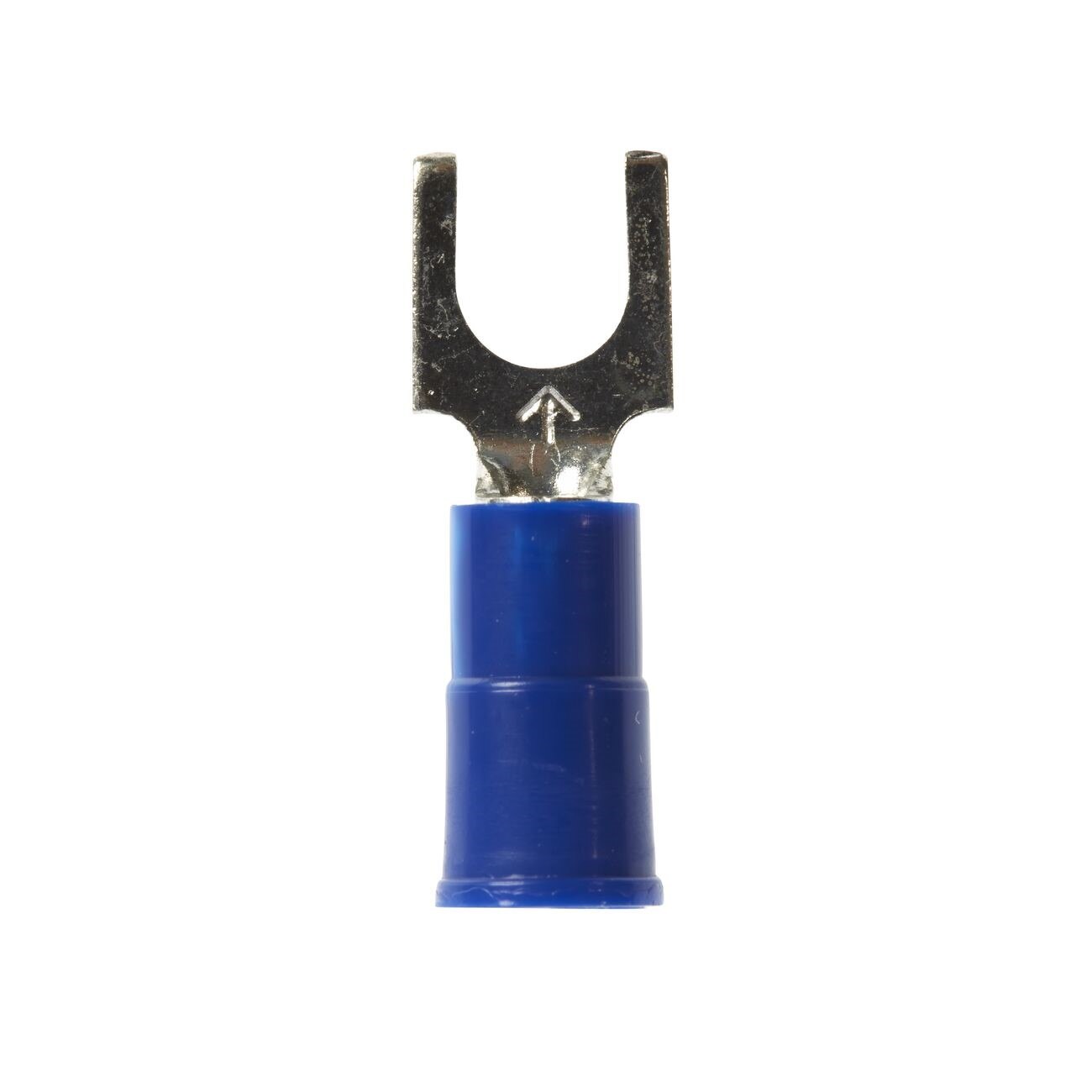

3M 7000133649 Block Fork Terminal Awg 16-14 Stud Size 6

Product Description

The 3M 7000133649 is a vinyl insulated block fork terminal designed for secure wire termination in terminal block applications. It accepts wire gauges from 16 to 14 AWG and fits a number 6 stud size. The flat-sided body allows the terminal to lie flush against the barrier portion of a terminal block, providing the same mechanical holding strength as a standard fork terminal while maintaining proper spacing and alignment within the block. Electricians and panel wirers use this terminal for organized, professional terminations in control panels, junction boxes, and similar enclosures.

This block fork terminal is suited for residential and light commercial electrical work wherever terminal blocks are used for wire management and circuit distribution. Its vinyl insulation provides a degree of protection at the connection point, and the flat-sided geometry prevents the terminal from rotating or shifting once seated against the terminal block barrier. The 10-bag case quantity makes it appropriate for both service work and production panel assembly.

Key Features

• Flat sides lie flush against terminal block barriers for proper fitment and alignment
• Accepts 16 to 14 AWG wire range
• Fits number 6 stud size
• Vinyl insulation at the barrel protects the termination point
• Delivers the same holding strength as a standard fork terminal in a block-specific profile
• Sold in packs with a minimum order quantity of 10

Compatibility

Designed as an OEM-style replacement and standard-use block fork terminal compatible with terminal blocks accepting a number 6 stud and wiring in the 16 to 14 AWG range.

Installation Notes

Installation is performed by licensed electricians or qualified panel assemblers. De-energize and lockout the circuit before terminating any conductors. Use a proper ratcheting or calibrated crimping tool rated for vinyl insulated fork terminals to ensure a gas-tight crimp; never use pliers as a substitute. Follow NEC requirements for wire gauge, terminal rating, and enclosure type applicable to the installation.

Technical Specifications

• Wire Range: 16-14 AWG
• Stud Size: 6
• Insulation Material: Vinyl
• Weight: 0.07 pounds
• UPC: 00051128599914
• Minimum Order Quantity: 10

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000133649
