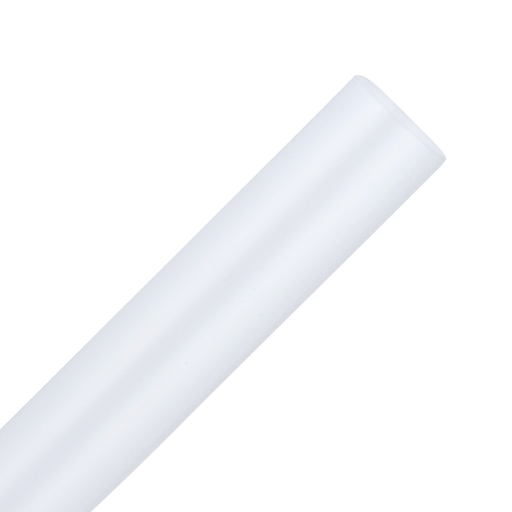

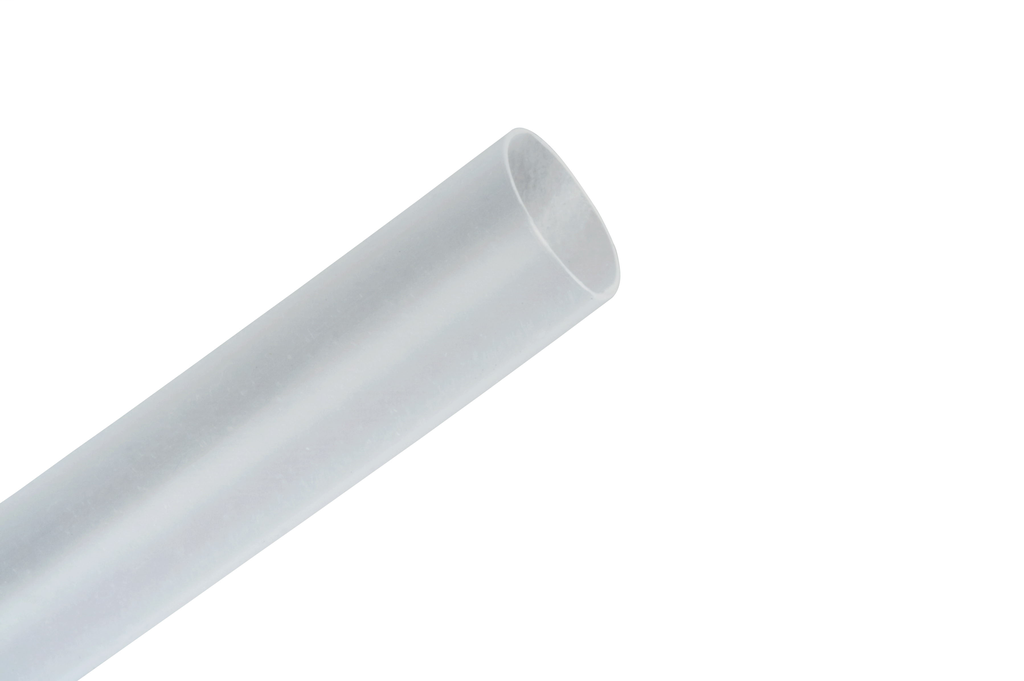

3M 7000133502 Heat Shrink Thin-Wall Tubing FP-301-3/8-Clear-48

Product Description

3M Heat Shrink Tubing FP-301 is designed for a variety of applications. The MPN is 7000133502. This tubing provides a balance of electrical, physical, and chemical properties, suitable for both industrial and military use. It offers a shrink ratio of two to one and is flame-retardant, making it ideal for 600V rated applications.

• Flexible polyolefin material
• Operating temperature range from negative sixty-seven to two hundred seventy-five degrees Fahrenheit
• Resistant to cold flow and split.

Product Highlights

This tubing is color coded for easy wire identification. Its high expansion ratio makes it a reliable choice for wire harness covering, fire-resistant covering, and wire bundling.

Product Information

Standard Information

• Item ID: 3M7000133502
• Manufacturer: 3M

Technical Specifications

• Shrink Ratio: 2:1
• Shrink Temperature: 212 deg F
• Temperature Rating: -67 to 275 deg F
• Type: Flexible
• Voltage Rating: 600 VAC
• Wall Type: Thin
• Inner Diameter Expanded: 3/8 in
• Inner Diameter Recovered: 0.187 in
• Wall Thickness Recovered: 0.025 in
• Length: 48 in
• Material: Polyolefin
• Color: Clear
