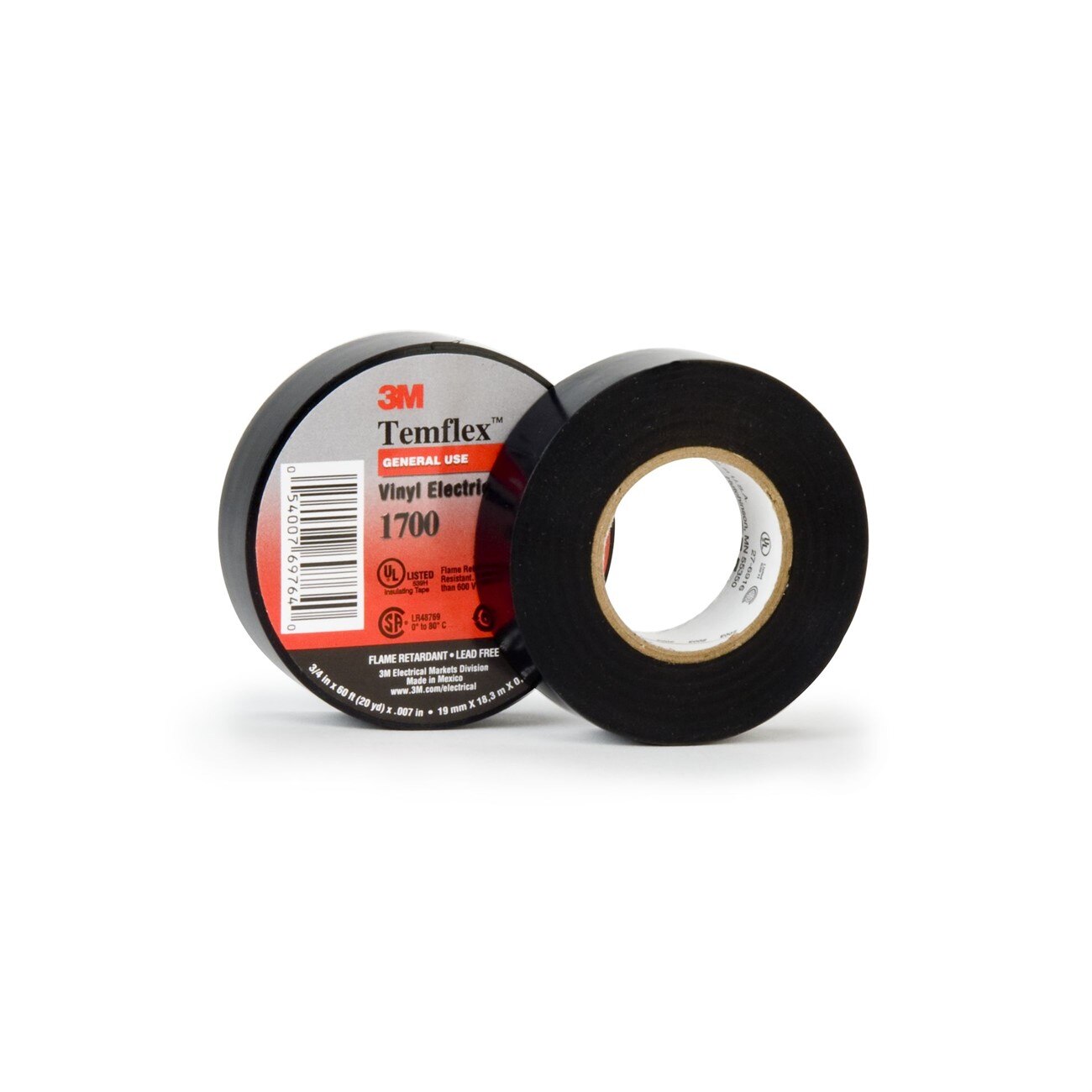

3M 7000132902 Vinyl Electrical Tape 1 in X 66 Ft

Product Description

The 3M 7000132902 is a general-purpose vinyl insulating tape designed for electrical work across residential, commercial, and light industrial applications. This is the Temflex 1700 formulation, a flame-retardant, cold-resistant tape built to handle routine electrical insulation, protective jacketing, and wire harnessing tasks. The tape measures 1 inch wide and 66 feet long per roll, giving technicians substantial coverage per unit. It carries UL Listed and CSA Certified ratings for continuous use up to 176 degrees F (80 degrees C), making it a code-appropriate choice for standard low-voltage wiring applications.

This tape is suited for electricians and maintenance technicians working on wire splices, harness wrap, protective jacketing, and general insulation tasks. Its vinyl construction provides reliable performance in environments where moisture, abrasion, alkalies, acid exposure, copper corrosion, or variable weather conditions are concerns. The roll format makes it practical for both panel work and field service use.

Key Features

• Flame-retardant vinyl construction rated to 176 degrees F (80 degrees C)
• Resistant to abrasion, moisture, alkalies, acids, and copper corrosion
• Cold-resistant formulation for variable weather conditions
• UL Listed and CSA Certified for electrical insulation applications
• 1 inch wide x 66 ft per roll for extended coverage
• Suitable for protective jacketing and wire harnessing

Compatibility

Designed as a general-purpose vinyl electrical insulating tape suitable for standard low-voltage wiring, splicing, and jacketing tasks in residential and commercial electrical work.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC guidelines. De-energize all circuits before applying or removing tape from any conductor or splice. Stretch the tape slightly during wrap to ensure a tight, void-free bond. Do not use as a substitute for listed wire connectors or as primary insulation on conductors exceeding the tape rated temperature.

Technical Specifications

• Width: 1 inch
• Length: 66 ft per roll
• Temperature Rating: 176 degrees F (80 degrees C)
• Flame Retardant: Yes
• Certifications: UL Listed, CSA Certified
• Weight: 0.27 pounds
• Unit of Measure: Roll

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132902
