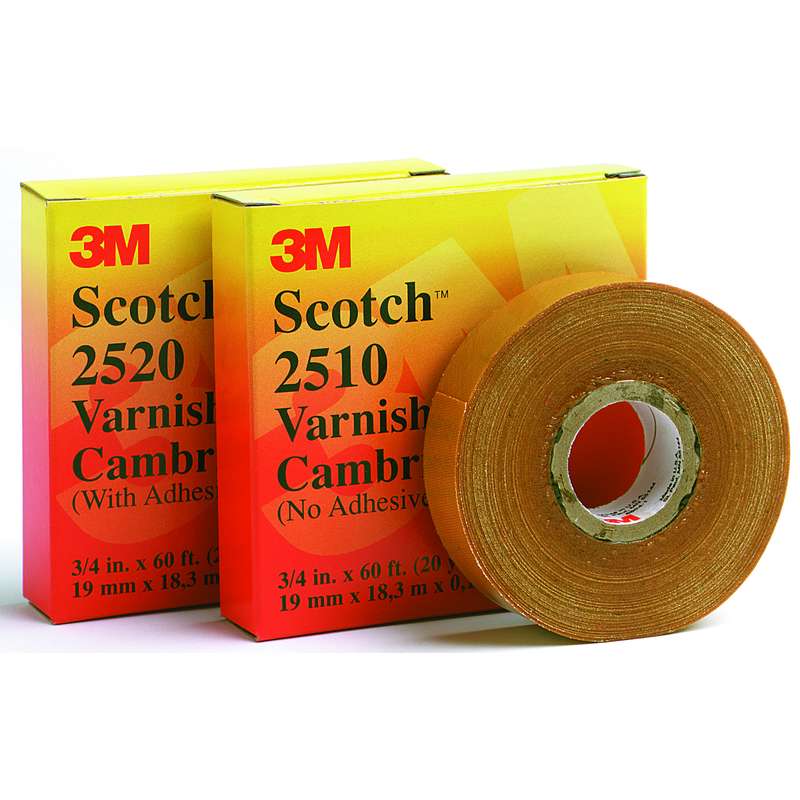

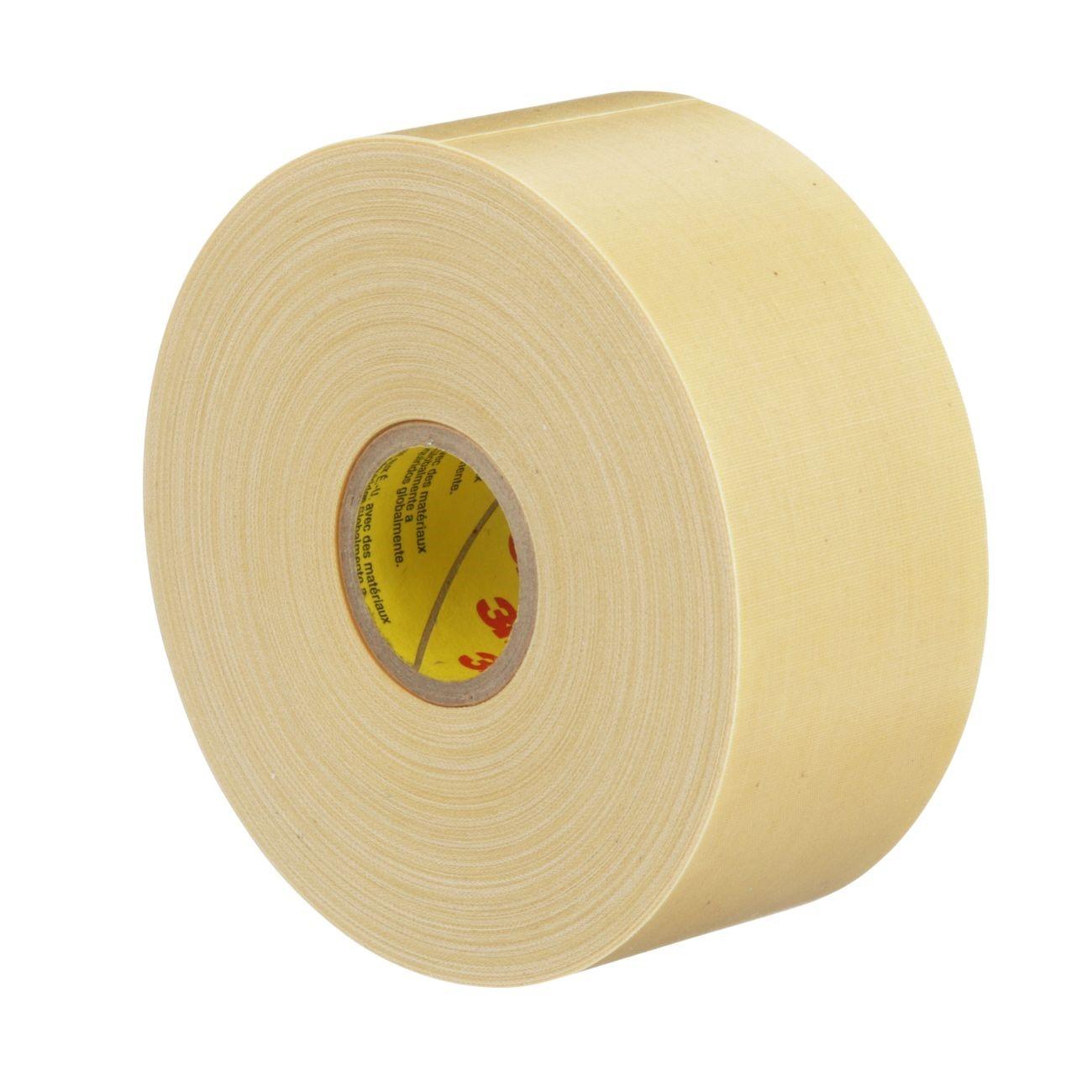

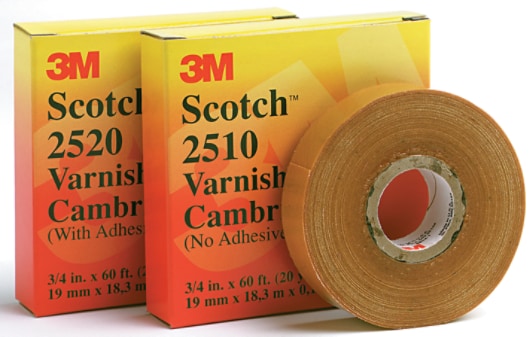

3M 7000132812 Scotch Varnished Cambric Tape 2520 1-1/2 in x 36 yd (Roll, Case Pack 24)

Product Description

The 3M 7000132812 is Scotch varnished cambric electrical insulating tape, model 2520, sized 1-1/2 in x 36 yd. The tape is 8 mil (0.2 mm) thick with a woven cotton cambric backing coated with insulating varnish and a pressure-sensitive rubber resin adhesive. It resists temperatures up to 105 �C (221 �F) and is specified for electrical insulation, splicing, motor leads, bus bars, and service drop connections.

• Size: 1-1/2 in x 36 yd; thickness: 8 mil (0.2 mm); unit: roll
• Woven cotton cambric backing with varnish coating and pressure-sensitive rubber resin adhesive
• Temperature rating up to 105 �C (221 �F); meets ASTM D-1000, D-295, D-374; RoHS 2011/65/EU compliant

Product Highlights

Varnished cambric insulating tape, 1-1/2 in x 36 yd, 8 mil thickness, cotton-cloth backing, rubber resin adhesive, temperature rating to 105 �C, case pack 24

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000132812
• Country of Origin: US

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: 7000132812
• Model: 2520
• Product Type: Varnished cambric electrical insulating tape
• Width: 1-1/2 in (38 mm)
• Length: 36 yd (33 m)
• Thickness: 8 mil (0.2 mm)
• Backing Material: Woven cotton cambric (cloth)
• Adhesive Type: Pressure-sensitive rubber resin
• Maximum Operating Temperature: 105 �C (221 �F)
• Tensile Strength: 876 N
• Adhesion Strength: 13 in-oz
• Dielectric Strength: 800 V/mil
• Standards and Compliance: ASTM D-1000; ASTM D-295; ASTM D-374; RoHS 2011/65/EU
• Case Pack: 24 per case
• UOM: Roll
• Color: Yellow
• Country of Origin: USA
