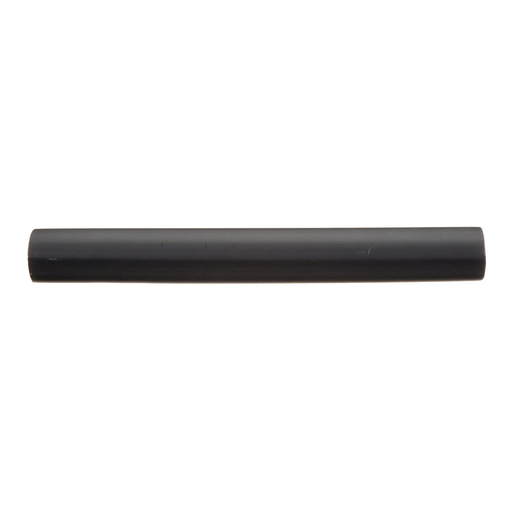

3M 7000132157 Sleeve Heat Shrink CBL 1.1IN 0.37IN 9IN

Product Description

The 3M 7000132157 adhesive-lined direct bury heat shrink cable sleeve is designed for uses in electrical splices, connections, and terminations. This sleeve provides mechanical and weather-resistant protection suitable for 600/1000 VAC applications. Made from cross-linked polyolefin, it has a heavy-duty wall, a three-to-one shrink ratio, and is split-resistant for easy installation.

• Reliable for splicing, connection, and termination.
• Offers mechanical and environmental protection.
• Fast shrinking for efficient installation.

Product Highlights

This product is well suited for various electrical tasks demanding high-quality sealing and protection.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: IT1.100BK9inchL

Technical Specifications

• Inner Diameter Expanded: 1.1 inches
• Inner Diameter Recovered: 0.37 inches
• Length: 9 inches
• Voltage Rating: 600/1000 VAC
• Wall Type: Heavy Duty
• Wire Size: 2 to 4/0 AWG
• Shrink Ratio: 3:1
• Temperature Rating: -67 to 230 degrees Fahrenheit
• Shrink Temperature: 250 degrees Fahrenheit
• Material: Cross Linked Polyolefin
• Package Quantity: 100 EACH
• Voltage: 1 kV
• Dielectric Strength: 500 V/mil
• Max Operating Temperature: 100.0 degrees Celsius
• Operating Temperature: -55 degrees Celsius
• Tensile Strength: 2400 lb/in
• MIL SPEC: YES
• Military Color Code: BLACK
• Military Spec: AMS-DTL-23053/15
• UL: YES
• WALL TYPE| Single Or Dual: HEAVY WALL
• UNSPSC Code: 39121723
