3M 7000129412 Conspicuity Marking Roll 983-32 Red White

Product Description

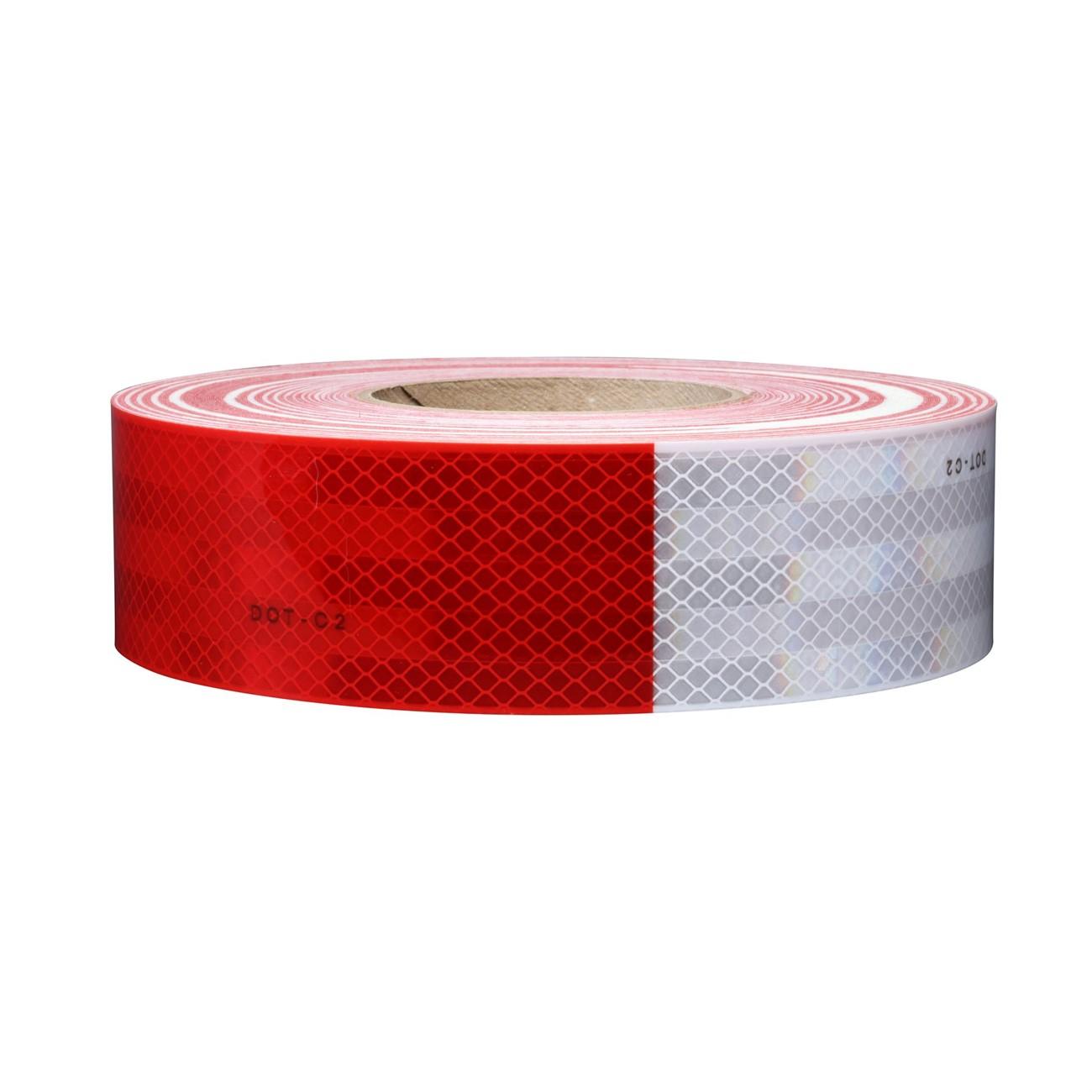

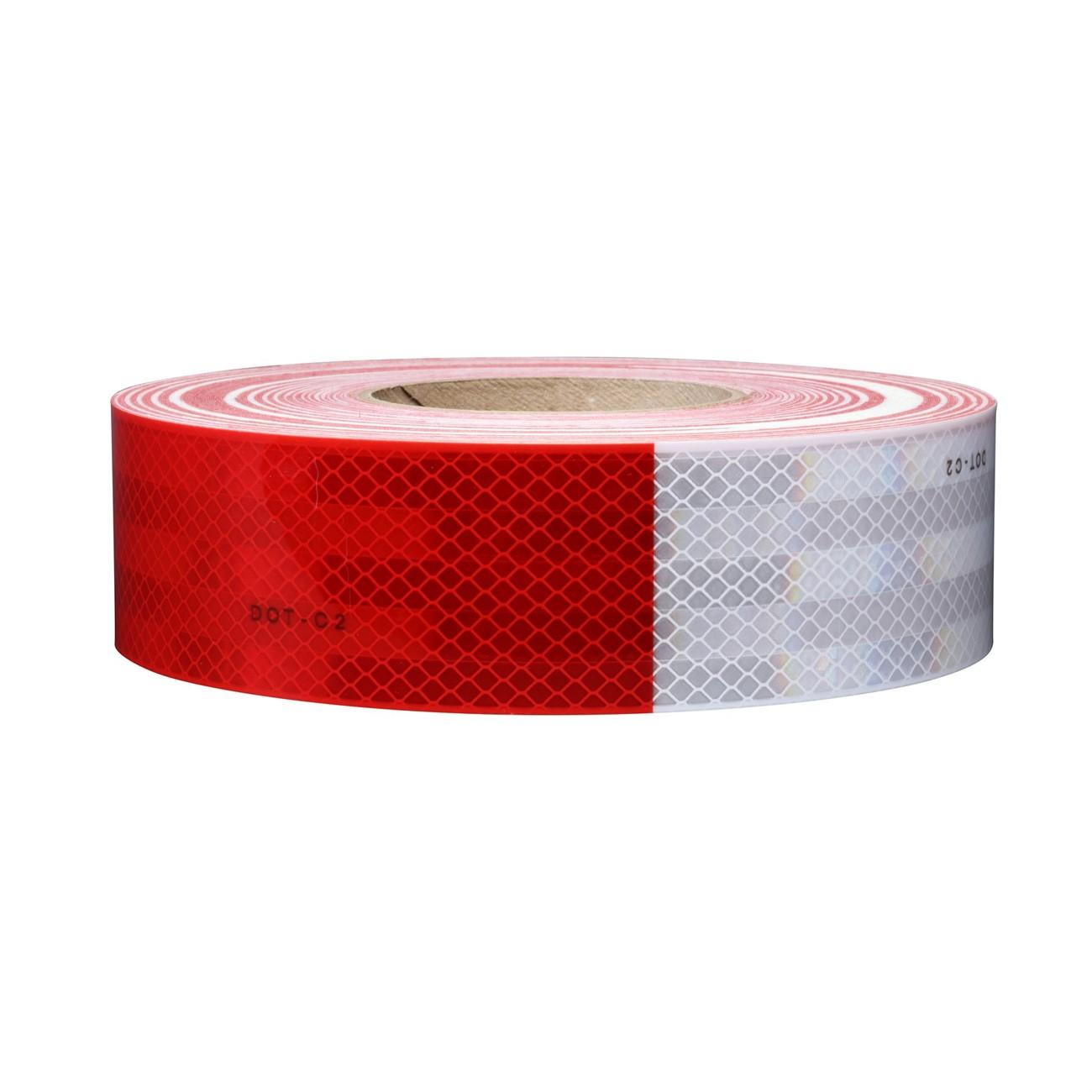

The 3M 7000129412 is a Diamond Grade Conspicuity Marking Roll in the 983-32 series, designed to increase the visibility of large vehicles and trailers in low-light and nighttime conditions. The roll uses highly reflective prismatic sheeting pre-cut into 2 inch by 18 inch strips with alternating 11 inch red and 7 inch white stripes. This kiss-cut strip format speeds field application by eliminating the need to measure and cut on site. Fleet operators, safety coordinators, and commercial vehicle technicians install this material to meet conspicuity marking requirements on trucks, trailers, and heavy equipment.

This roll is intended for exterior application on the sides and rear surfaces of commercial trucks, semi-trailers, flatbeds, tankers, and other large vehicles where retroreflective conspicuity striping is required. The alternating red and white stripe pattern meets common commercial vehicle marking standards. The roll format covers large surface areas efficiently, making it well suited for new-build trailer assembly, fleet refurbishment, and field repair of damaged conspicuity tape.

Key Features

• Prismatic Diamond Grade sheeting delivers high retroreflectivity for extended detection distance at night
• Kiss-cut into 2 inch x 18 inch strips with alternating 11 inch red and 7 inch white segments for fast, consistent application
• Roll format: 2 inches wide by 50 yards long for high-volume coverage
• Pre-patterned alternating red and white stripes eliminate on-site measuring and cutting
• Engineered for exterior mounting on trucks, trailers, and large commercial vehicles

Compatibility

Designed for application to the flat exterior surfaces of commercial trucks, semi-trailers, and large vehicles requiring retroreflective conspicuity marking.

Installation Notes

Surface preparation is critical before applying conspicuity tape — clean the mounting surface thoroughly to remove dirt, grease, and moisture to ensure proper adhesion. Ambient and surface temperatures should be within the manufacturer-recommended range at time of application. No special tools are required beyond a squeegee or roller to press the strip firmly against the substrate and eliminate air bubbles. Installers should verify that the finished marking pattern meets all applicable federal and local regulations for commercial vehicle conspicuity before returning the vehicle to service.

Technical Specifications

• Width: 2 inches
• Length: 50 yards
• Strip Size: 2 inches x 18 inches (kiss-cut)
• Stripe Pattern: Alternating 11 inch red and 7 inch white segments
• Color: Red and White
• Unit of Measure: Roll
• Weight: 3.06 pounds
• UPC: 50051138676365

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000129412
