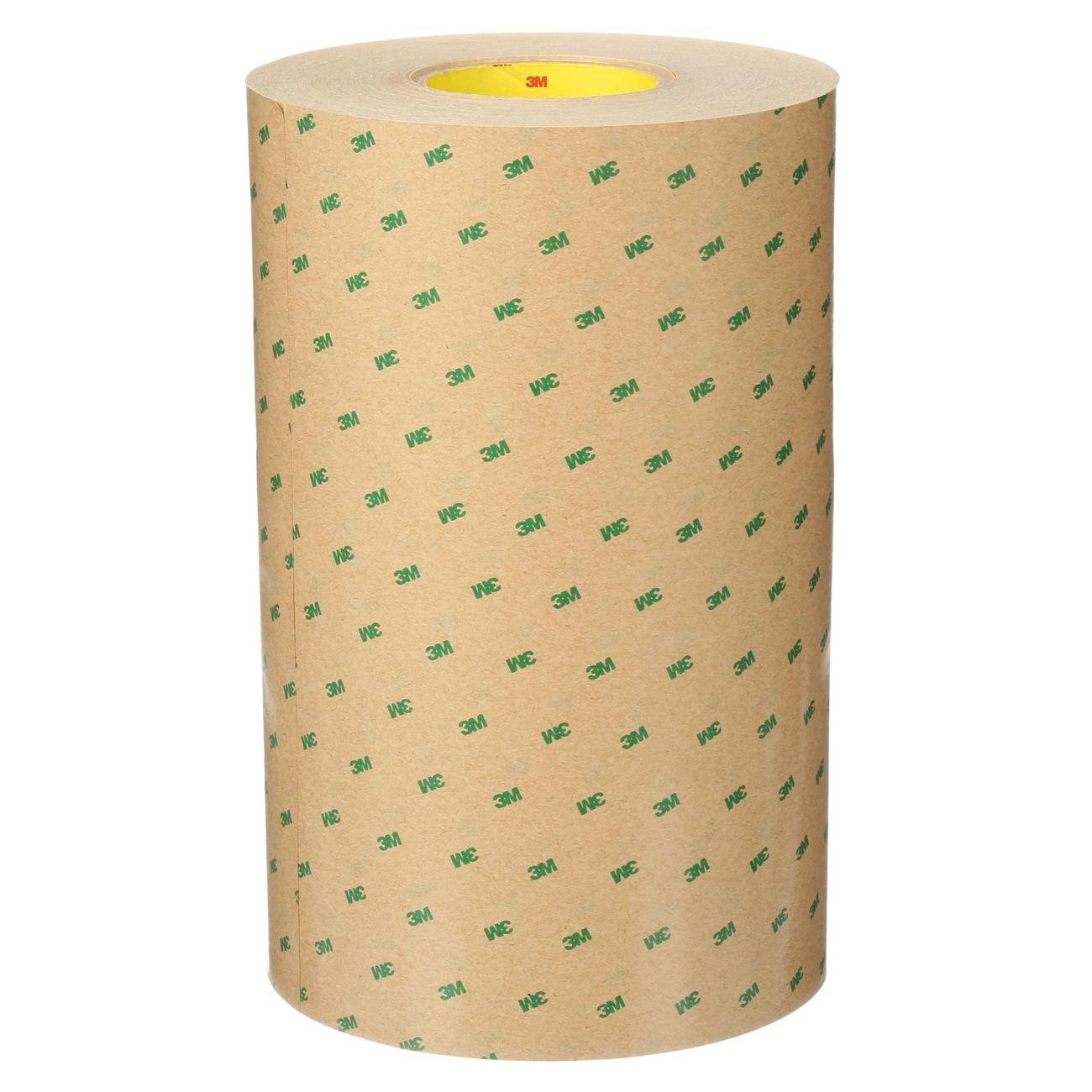

3M 7000123562 Adhesive Transfer Tape 1 Inch 60 Yd

Product Description

The 3M 7000123562 is an acrylic adhesive transfer tape designed for bonding a wide range of surfaces, including low-surface-energy (LSE) plastics and textured or rough substrates. The tape features a 5.0 mil acrylic adhesive layer that delivers strong initial tack and long-term holding power. It resists humidity, water, solvents, chemicals, and UV exposure, and maintains performance at temperatures up to 250 degrees F (121 degrees C). Supplied on a 60 Densified Kraft liner, it is suited for die-cutting and high-volume converting operations. Industrial assemblers, fabricators, and production technicians are the primary installers of this product.

This transfer tape is used in general-purpose surface bonding across residential and light commercial manufacturing applications. Common uses include mounting, laminating, and splicing operations where a clean, permanent bond is needed without added bulk from a carrier film. The tape performs well on foam, painted surfaces, and textured plastics that challenge standard adhesives. It is the thicker counterpart to 3M Adhesive Transfer Tape 9471, making it appropriate for applications that require more adhesive mass and fill on uneven surfaces.

Key Features

• 5.0 mil acrylic adhesive bonds to LSE plastics, foam, and textured surfaces
• High temperature resistance up to 250 degrees F (121 degrees C)
• Excellent resistance to humidity, water, solvents, chemicals, and UV light
• 60 Densified Kraft liner supports clean die-cutting and converting
• Very high initial adhesion for immediate handling strength
• Transparent construction for aesthetically clean finished assemblies

Compatibility

Designed as a general-purpose adhesive transfer tape for bonding LSE plastics, foam, painted metal, and other textured or rough surfaces in fabrication and assembly applications.

Installation Notes

Surface preparation is critical — clean and degrease all substrates before application to maximize bond strength. Apply firm, even pressure across the tape to ensure full contact with the substrate. This product is intended for use by fabricators, assemblers, and converting technicians in controlled production environments. Remove the liner carefully during application to avoid adhesive contamination or stretching.

Technical Specifications

• Adhesive Thickness: 5.0 mil
• Tape Width: 1 inch
• Tape Length: 60 yards
• Color: Transparent
• Liner Type: 60 Densified Kraft
• Maximum Temperature: 250 degrees F (121 degrees C)
• Unit of Measure: Roll
• Weight: 0.78 pounds
• Package Dimensions: 13.38 inches x 13.38 inches x 10 inches
• UPC: 00021200246180

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123562
