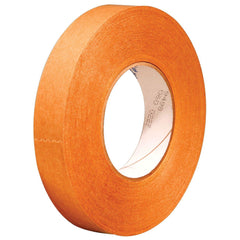

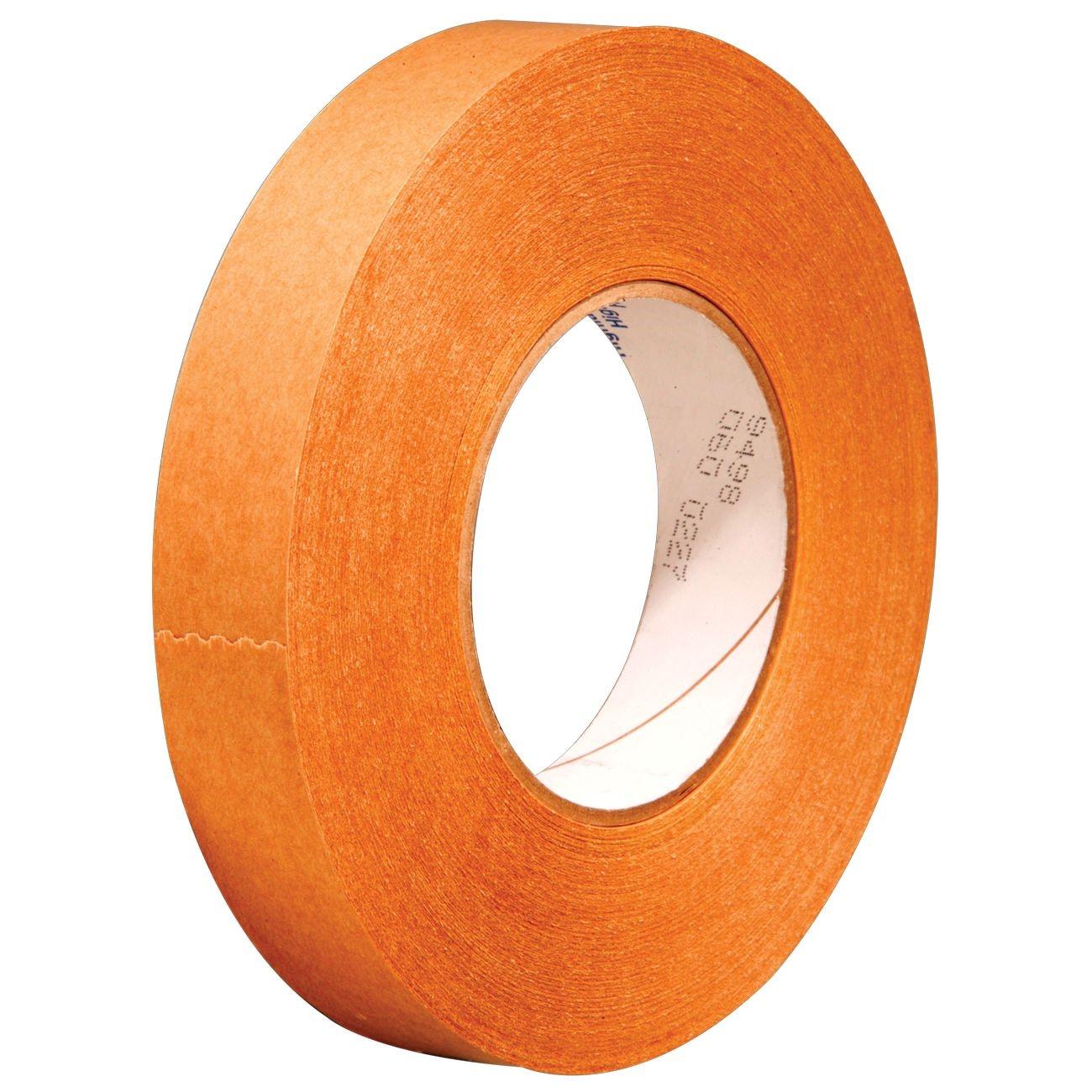

3M 7000123445 Adhesive Transfer Tape 0.75 in 120 Yd

Product Description

The 3M 7000123445 is an adhesive transfer tape designed for high-speed splicing and core starting applications in demanding industrial environments. Built on a 60 lb densified kraft liner, this tape delivers ultra-high peel strength and excellent shear strength, making it well suited for flying splice operations at process speeds exceeding 2,000 feet per minute. The acrylic adhesive bonds reliably to most substrates, including low surface energy plastics, and conforms to irregular surfaces. It carries a moderate temperature resistance rating, performing up to 250 degrees F for extended dwell times and handling brief oven exposures at higher temperatures when dwell times are ten seconds or less.

This tape is commonly used in the printing industry for roll-to-roll splicing, core starting, and related converting operations. Its wet grab characteristics make it effective where immediate adhesion at speed is critical. Industrial converters, press operators, and maintenance technicians working in high-speed print and packaging environments are the primary installers and end users of this product.

Key Features

• Ultra-high peel strength and excellent shear strength for rigorous splicing applications
• Strong wet grab performance supports flying splice and core starting use
• Bonds to most substrates including low surface energy plastics
• Moderate temperature resistance up to 250 degrees F for extended dwell periods
• 60 lb densified kraft liner simplifies die-cutting operations
• Conformable construction adapts to irregular surfaces

Compatibility

Designed for use in high-speed printing and converting equipment where flying splice and core starting tape is required, particularly in systems operating at process speeds exceeding 2,000 feet per minute.

Installation Notes

Application is performed by press operators or converting technicians following equipment manufacturer splice procedures. Ensure all mating surfaces are clean and dry before applying the tape to achieve rated adhesion. When using in oven environments, confirm dwell time and temperature fall within rated limits before deployment. Follow all facility safety protocols when working around moving machinery at process speed.

Technical Specifications

• Width: 0.75 inches
• Length: 120 yards
• Color: Transparent
• Temperature Resistance: Up to 250 degrees F continuous; brief exposures at higher temperatures with dwell times of ten seconds or less
• Liner: 60 lb Densified Kraft
• Unit of Measure: Roll
• Package Weight: 0.76 pounds
• Package Length: 13.38 inches
• Package Width: 13.25 inches
• Package Height: 10 inches
• UPC: 00021200840975

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123445
