3M 7000119840 Pps Mix Ratio Insert Generic 3 Oz

Product Description

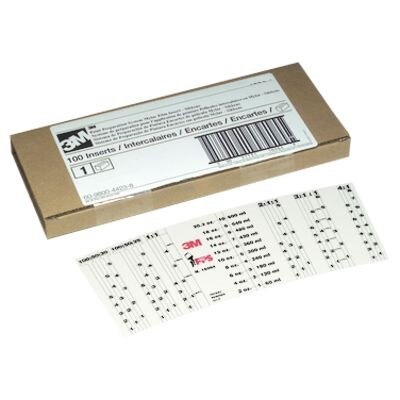

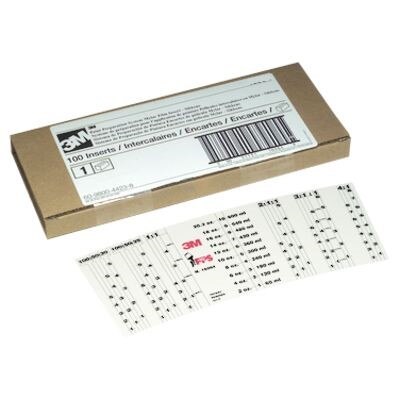

The 3M 7000119840 is a PPS (Paint Preparation System) mix ratio film insert designed for use with generic solventborne paint formulations. The insert fits inside compatible PPS cups and displays printed mix ratios directly on the film surface, allowing painters and refinish technicians to measure and blend paint, reducer, and hardener without separate measuring containers. Graduated increments are marked in 15 ml and 0.5 oz steps up to a total volume of 90 ml and 3 oz. Supported mix ratios include 1:1, 2:1:1, 3:1:1, 4:1:1, 5:1:1, and 6:1:1, along with 3M Tri-Scale scalers 1 through 6. This insert is a consumable component within the PPS mixing system and is installed by automotive refinish technicians and body shop professionals.

This insert is designed for use with the 3M PPS 3 oz cup configuration. It is compatible with the 6 fl oz cup part numbers 16115 and 16121, and with the 3 fl oz lids and liners part numbers 16028 and 16328. It is intended for solventborne coatings including basecoats, clearcoats, and primers requiring precise ratio mixing. Typical use is in automotive body shops, fleet refinishing facilities, and collision repair centers where small-batch mixing accuracy is required.

Key Features

• Mix ratios printed directly on film insert for quick, at-a-glance reference during mixing
• Supports six mix ratios: 1:1, 2:1:1, 3:1:1, 4:1:1, 5:1:1, and 6:1:1
• Includes 3M Tri-Scale scalers 1 through 6 for flexible batch sizing
• Graduated increments of 15 ml and 0.5 oz up to 90 ml and 3 oz total
• Designed for generic solventborne paint mixes
• Sold in packs of 5 inserts

Compatibility

Compatible with 3M PPS 6 fl oz cups PN16115 and PN16121, and with 3M PPS 3 fl oz lids and liners PN16028 and PN16328. Intended for generic solventborne paint formulations.

Installation Notes

This insert is a single-use consumable placed inside a PPS mixing cup before paint is added. Follow the PPS system assembly sequence: place the liner in the cup, insert the mix ratio insert against the liner, then add paint components to the marked ratio lines. Dispose of the insert with the liner after use. No tools are required for installation.

Technical Specifications

• Total Volume Capacity: 90 ml / 3 oz
• Graduated Increments: 15 ml / 0.5 oz
• Supported Mix Ratios: 1:1, 2:1:1, 3:1:1, 4:1:1, 5:1:1, 6:1:1
• Tri-Scale Scalers: 1 through 6
• Unit of Measure: Pack
• Minimum Order Quantity: 5
• Weight: 0.08 pounds
• UPC: 00051131160675

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000119840
