Product Description

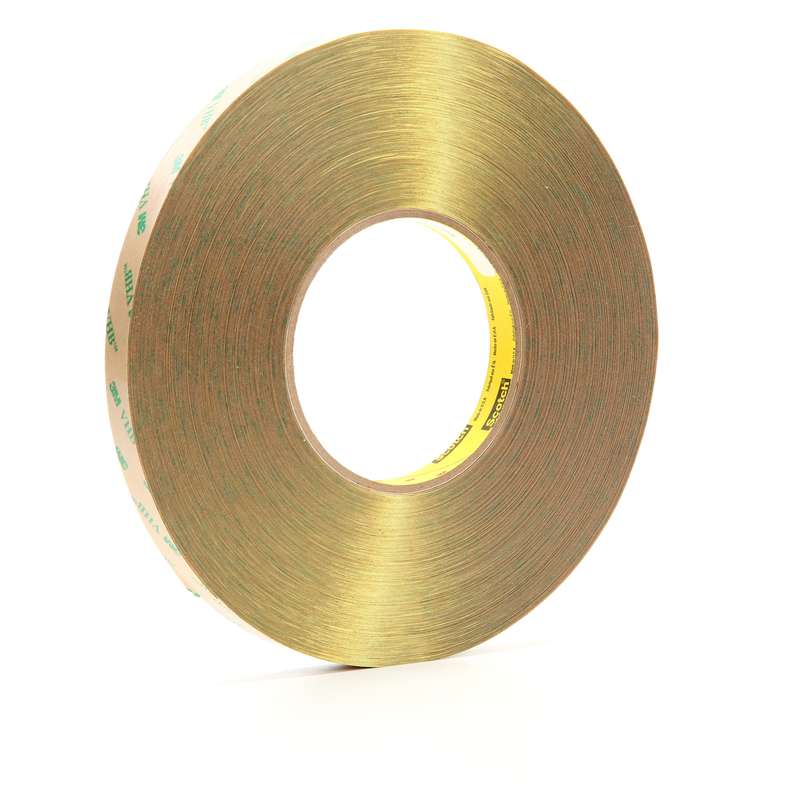

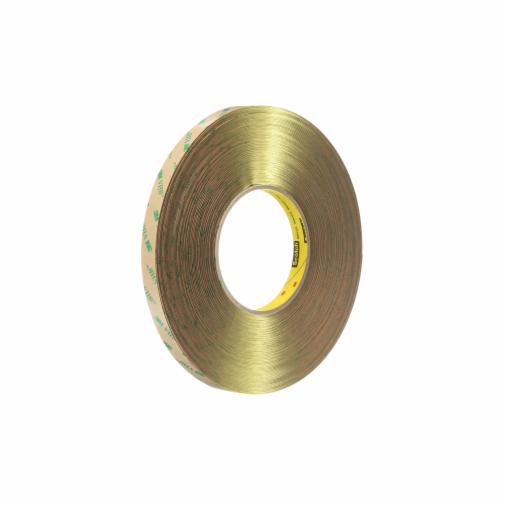

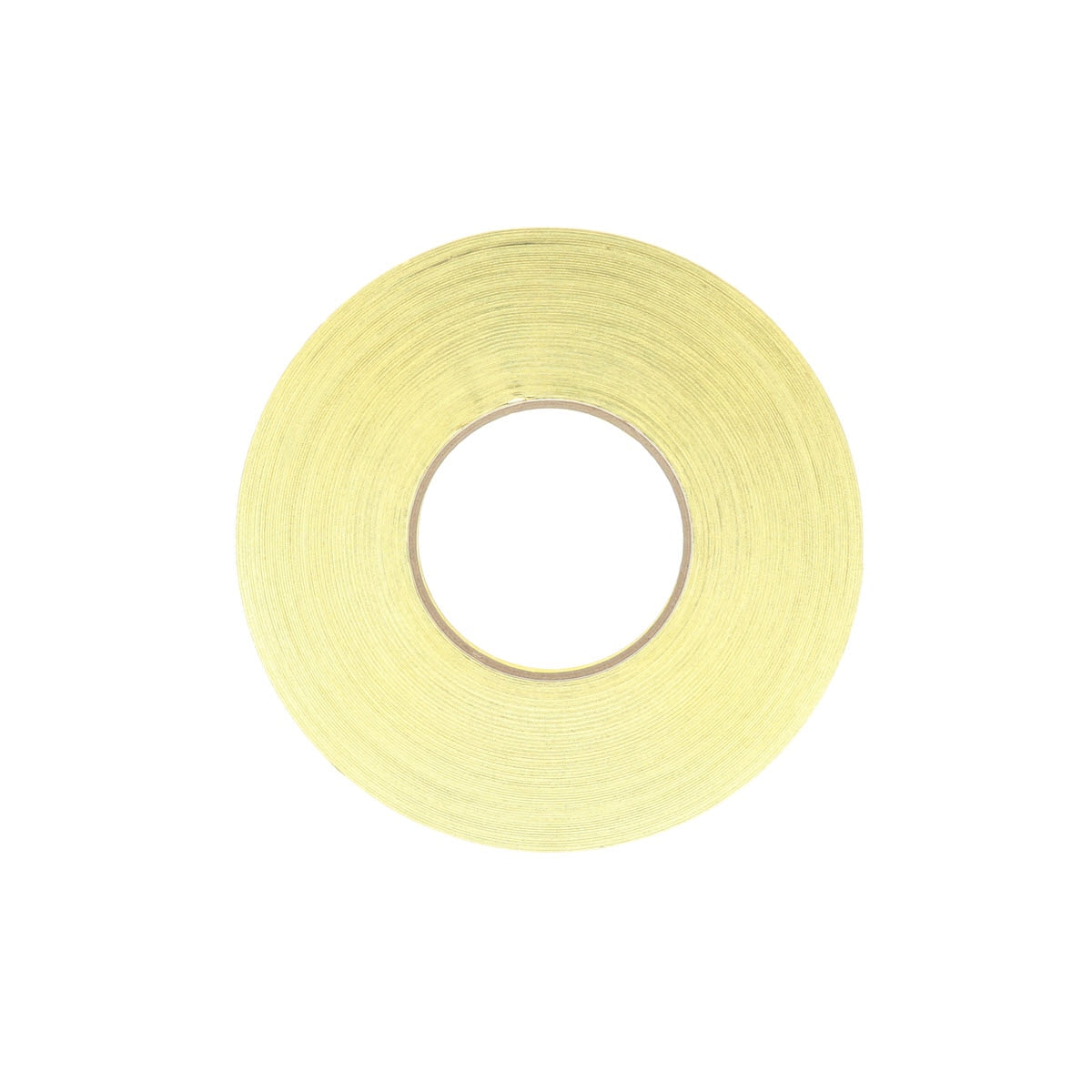

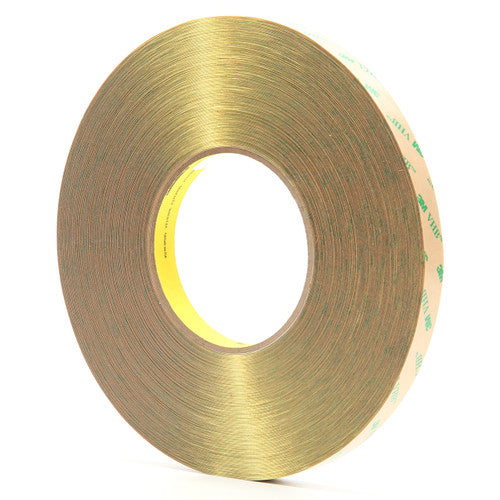

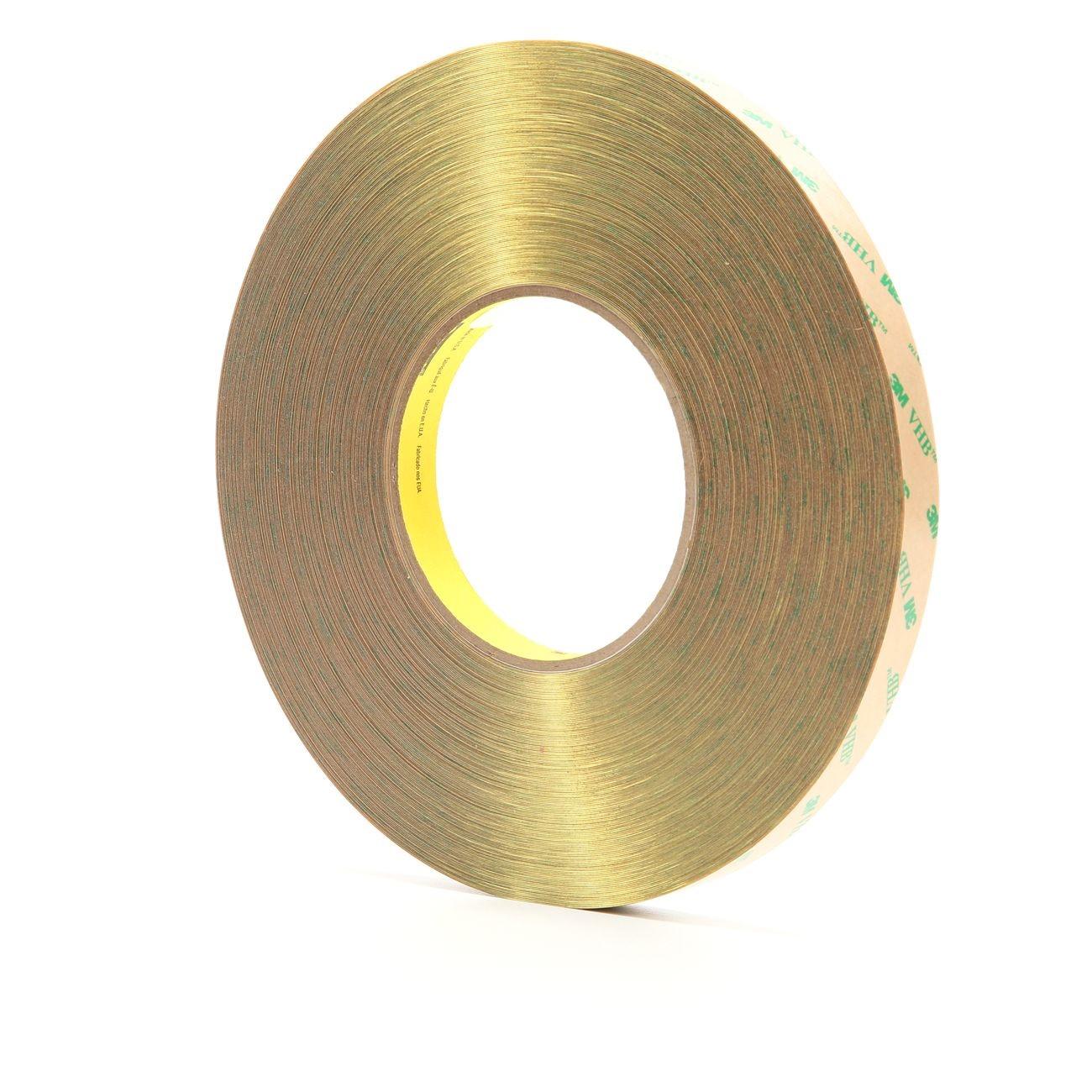

The 3M 7000115608 VHB F9473PC adhesive transfer tape is a thin, double-sided tape designed to conform to various applications. Made with 10 mil 3M High Performance Acrylic Adhesive 100MP, it provides exceptional holding power and long-lasting adhesion for fast, strong results. Ideal for industrial joining, metal fabrication, and bonding applications.
- Thin, double sided tape
- Conforms to a wide variety of applications
- Exceptional holding power and long-lasting adhesion
Product Highlights
This VHB adhesive transfer tape offers a durable, long-lasting solution for both indoor and outdoor use, replacing rivets and liquid adhesives.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 7000115608
-
Country of Origin: US
Technical Specifications
-
Brand: 3M
-
MPN: 7000115608
-
UOM: Roll
-
Adhesive Type: Acrylic
-
Face Side Adhesive Type: High Performance Acrylic
-
Color: Transparent
-
Width: 1/2 Inch
-
Length: 60 yd
-
Thickness: 10 mil
-
Min. Temperature Rating: -40 °F
-
ProductCategory: Tapes & Adhesives
-
ProductSegment: Tapes
-
ProductLine: Transfer Tapes
-
Series: F9473PC
-
Applications: Interior and Exterior Industrial to Replace Rivets, Spot Welds, Liquid Adhesives and Other Permanent Fasteners
-
Product Type: Adhesive Transfer Tape
-
Primary Color: Clear
-
Liner Material: Polycoated Kraft Paper
-
Shear Strength: 80lb/in²
-
Adhesion Strength: 9lb/in
-
Adhesive Material: Acrylic
-
Resistance Properties: Insulation Resistant; Solvent Resistant; UV Resistant
-
Maximum Operating Temperature: +500°F
-
Overall Length (Metric): 54.864 m
-
Overall Width (Imperial): 0.5 in
-
Overall Width (Metric): 12.7 mm
-
Total Tape Thickness without Liner (Imperial): 10 mil
-
Total Tape Thickness without Liner (Metric): 0.254 mm
-
Indoor/Outdoor: Indoor/Outdoor
-
Primary Liner: 58# Polycoated Kraft Paper
-
Primary Liner Thickness (mm): 0.11mm
-
Product Number: F9473PC
-
Maximum Operating Temperature (Celsius): 260 ℃
-
Minimum Operating Temperature (Celsius): -40 ℃
-
Primary Liner Color: Tan
-
Primary Liner Thickness (Imperial): 4.2 mil
-
Smallest Saleable Unit: Roll
-
Specifications Met: UL 746C
-
Overall Length (Imperial): 60 yd
-
Industries: Aerospace, Oil & Gas, Woodworking, Specialty Vehicles, Appliance, General Industrial, Metalworking, Automotive, Construction, Converter Solutions, Medical, MRO, Signage, Transportation, Military & Government, Electronics
-
Application: Emblem Attachment
-
Brands: VHB™
