Description

Product Description

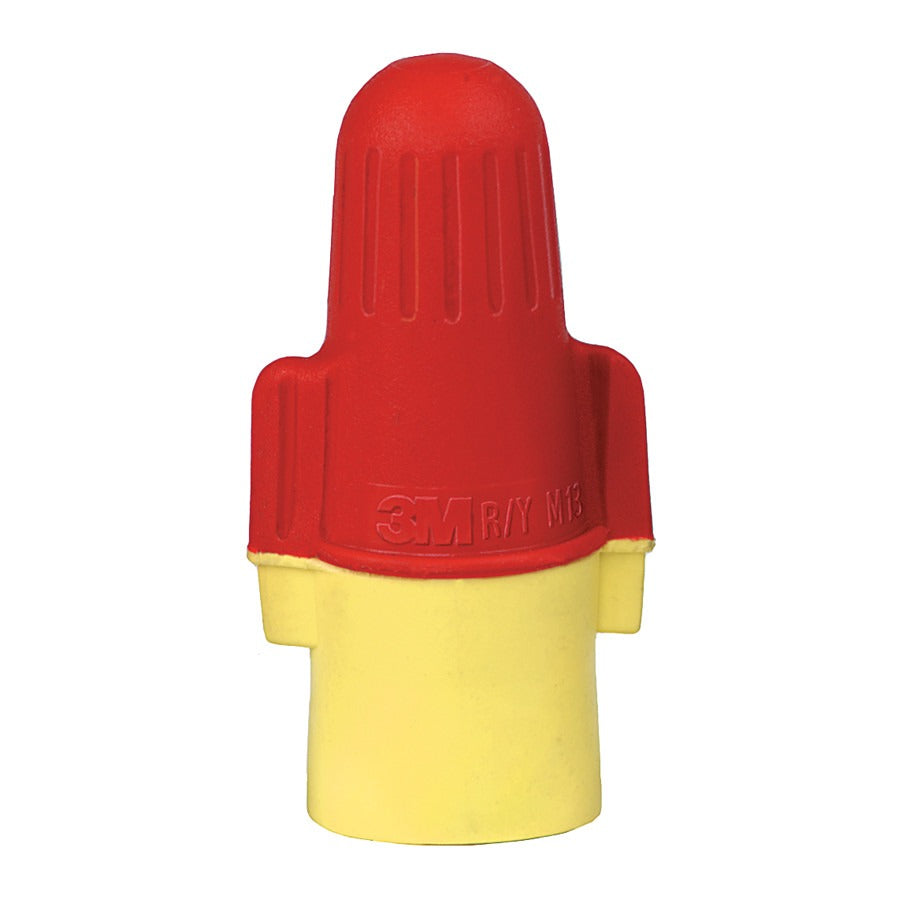

The 3M 7000058824 Performance Plus Wire Connector is a twist-on connector designed to join and insulate two or more conductor ends in pigtail applications. It features a flexible spring that expands for increased wire range and a flexible skirt to help prevent copper exposure. The connector is UL listed for 600 V and is supplied in bulk packaging of 500 per jug and 4000 per case.

  • Flexible spring with strong bite for expanded wire range and reuse; flexible skirt reduces copper exposure
  • Electrical rating: 600 V; accepts 22 to 8 AWG solid or stranded aluminum and copper conductors; temperature rating up to 221 deg F
  • Flame-retardant, winged shell design with spring steel internal construction; packaged 500 per jug (4000 per case)

Product Highlights

Twist-on, flame-retardant wire connector; 22–8 AWG compatibility; 600 V rating; 500 per jug / 4000 per case

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: 7000058824
  • Country of Origin: US
Technical Specifications
Brand
3M
MPN
7000058824
Product Name
Performance Plus Wire Connector R/Y+JUG
Type
Twist-on wire connector
Application
Electrically connect two or more conductor ends in a pigtail application and insulate the connection
Shell Style
Winged
Spring Type
Live action / square wire spring
Shell Material
Plastic (polypropylene and thermoplastic elastomer insulation)
Spring Material
Spring steel
Conductor Range
22 to 8 AWG
Wire Type
Solid/stranded aluminum and copper
Voltage Rating
600 V
Temperature Rating
221 deg F
Special Features
Flame retardant; flexible skirt to help prevent copper exposure; corrosion-resistant coating; dual color coding
Certifications
UL Listed; CSA Certified; RoHS Compliant; CE; UL 486C File No. E23438; CSA C22.2 188-MI983 File No. LR15503
Package Quantity
500 per jug; 4000 per case
Product Type
Connector
Material
Plastic (shell/insulation) and spring steel (internal)
Dimensions
10.38 x 4.82 x 10.38 inches
