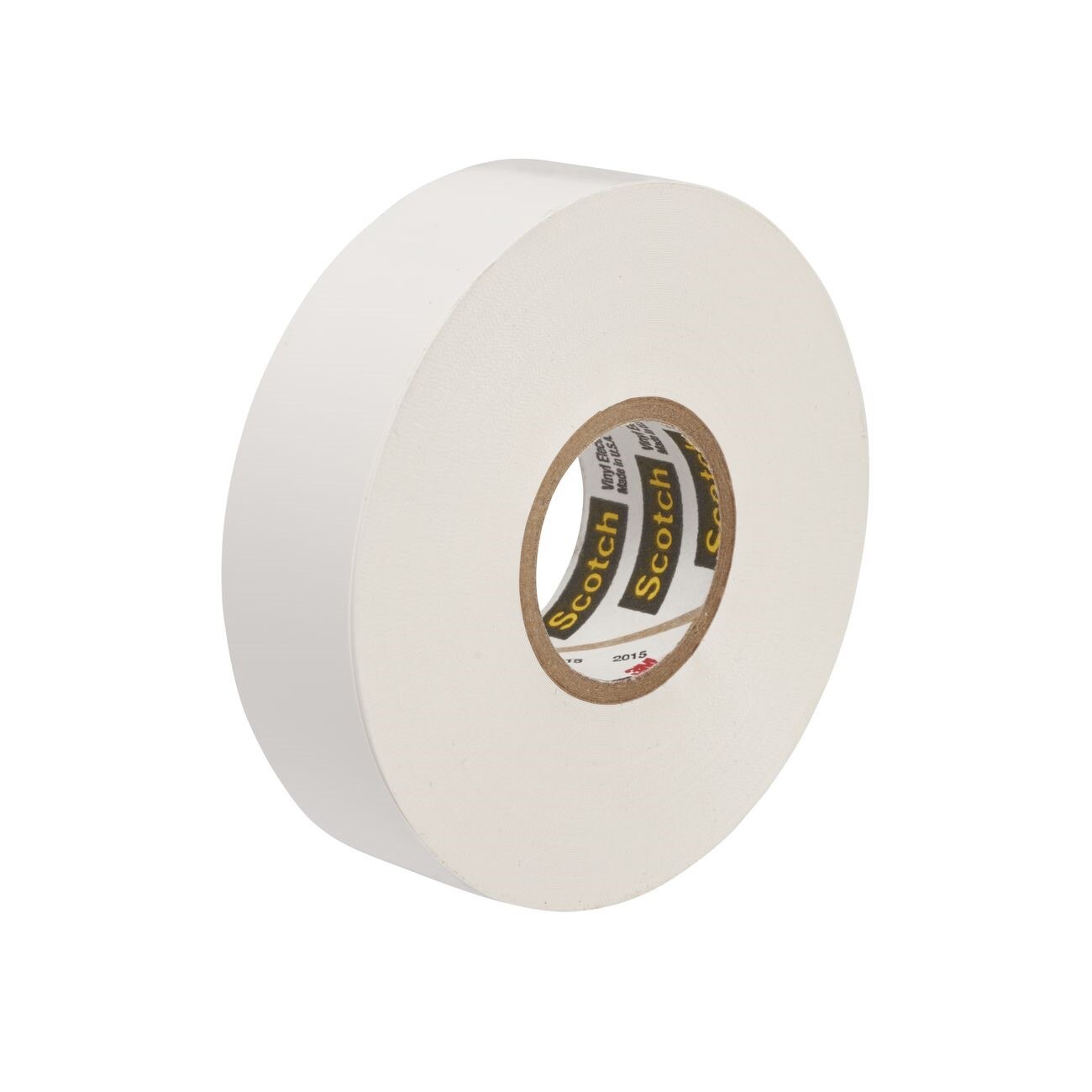

3M 7000058436 Vinyl Electrical Tape 0.5in X 20ft White

Product Description

The 3M 7000058436 is a white vinyl electrical tape from the Scotch 35 series, engineered for insulating, color-coding, and phasing electrical conductors, splices, and connections. It measures 0.5 inches wide by 20 feet long with a 0.007-inch thickness, delivering a conformable, moisture-resistant wrap that meets the demands of low-voltage electrical work. The white color makes it a reliable choice for circuit identification and phase marking in panels, junction boxes, and conduit runs. Licensed electricians and electrical contractors are the primary installers, though experienced industrial maintenance technicians also work with this product regularly.

This tape is suited for residential, commercial, and light industrial electrical applications where color-coded insulation or phase identification is required. It performs well in standard indoor environments, junction boxes, switchgear, and motor control centers. The vinyl backing conforms around irregular shapes and wire bundles without lifting or unraveling. At 0.5 inches wide, it is particularly useful for tight spaces and smaller-gauge conductors where a full-width tape would be awkward to apply.

Key Features

• White color for phase marking, circuit identification, and color-coded insulation
• 0.007-inch thick vinyl backing for conformability around wire bundles and splices
• 0.5-inch width designed for tight spaces and smaller-gauge conductor work
• Moisture-resistant construction suitable for junction boxes and conduit applications
• Sold per roll with a minimum order quantity of 10 rolls

Compatibility

Designed as an OEM-style replacement and general-use electrical tape compatible with standard low-voltage insulation and color-coding applications in residential and commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Always de-energize and lock out the circuit before handling any conductors or applying tape to splices or terminations. Stretch the tape slightly while wrapping to ensure a tight, gap-free bond, and overlap each pass by at least half the tape width. Do not use this tape as the sole insulation method on conductors rated beyond the tape's listed voltage rating.

Technical Specifications

• Width: 0.5 inches
• Length: 20 feet
• Thickness: 0.007 inches
• Color: White
• Weight: 0.053 pounds
• UOM: Each (per roll)
• Minimum Order Quantity: 10 rolls
• UPC: 00054007102328

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000058436
