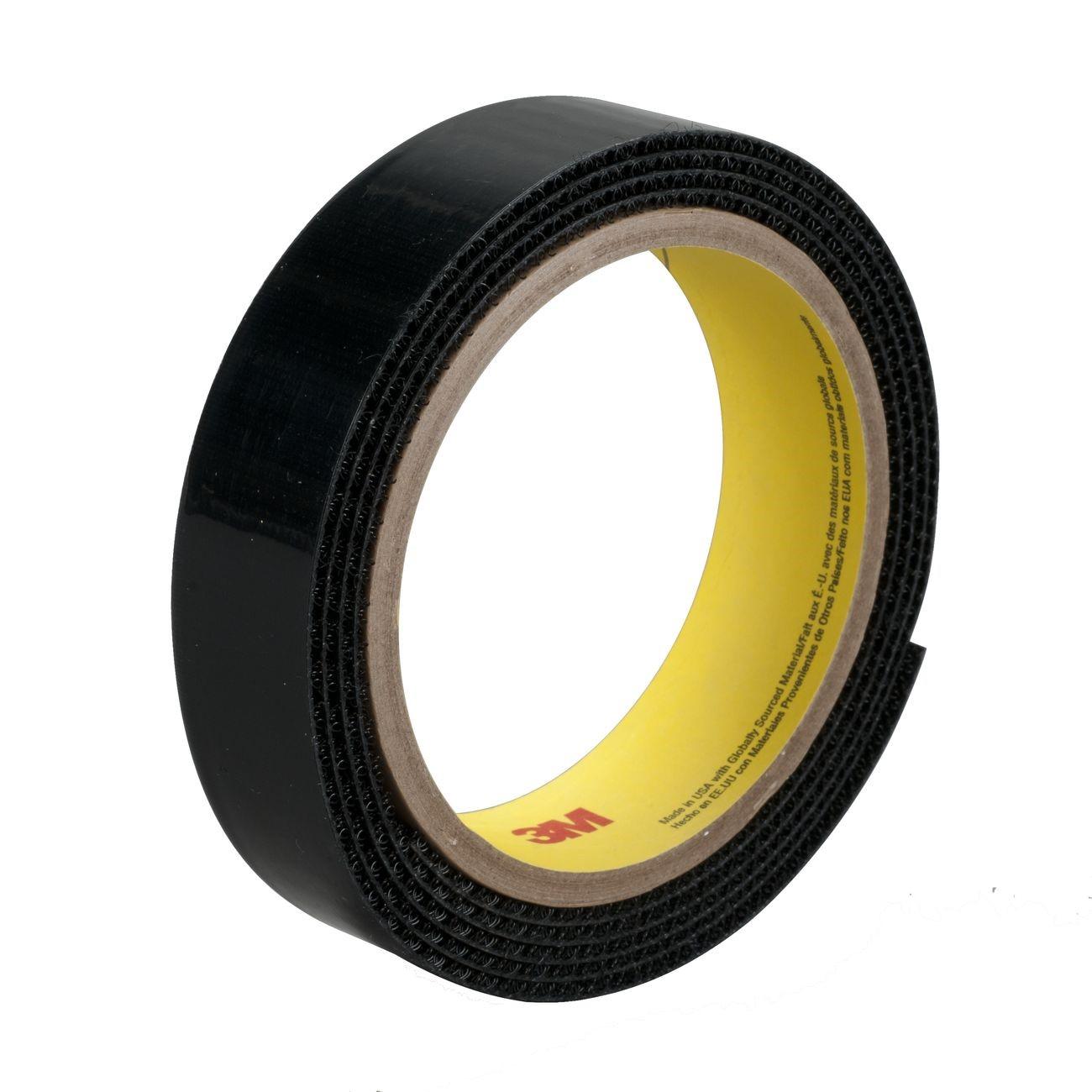

3M 7000051776 Flame Resistant Loop Fastener Tape 1x50yd

Product Description

The 3M 7000051776 is a flame resistant loop fastener tape designed for hook-and-loop assembly in applications where fire resistance is a required performance criterion. Sold as a 1-inch-wide roll spanning 50 yards, the tape features a black loop material measuring 0.15 inches in thickness. It is intended for use by HVAC technicians, electricians, and mechanical contractors who need a reliable, code-conscious fastening solution in environments where ignition risk or flame-spread ratings are a concern. The roll format supports efficient field cutting to length during installation or panel assembly work.

This tape is suited for indoor mechanical and electrical enclosure applications where standard non-rated fastener tapes are not acceptable. Typical use cases include securing insulation blankets, wire bundles, access panels, and thermal or acoustic materials in commercial HVAC systems, electrical control panels, and similar assemblies requiring flame resistant components. Each case contains 12 rolls, making it practical for stocking at a shop or job site where ongoing fastener tape consumption is expected.

Key Features

• Flame resistant loop material rated for use in fire-sensitive assemblies
• 1-inch width x 50-yard roll length provides extended coverage per roll
• 0.15-inch tape thickness for low-profile fastening
• Black color for finished appearance in visible installations
• Sold in cases of 12 rolls for consistent job site supply

Compatibility

Designed for use as the loop component in hook-and-loop fastener systems; intended to pair with a compatible hook-side fastener tape in mechanical, electrical, and HVAC panel or insulation assembly applications.

Installation Notes

Surface preparation is critical before applying pressure-sensitive fastener tape — clean, dry, and degrease the substrate to ensure full adhesive contact. Allow adequate dwell time after application before subjecting the bond to load. Installation should follow applicable building and mechanical codes, including NFPA and local fire code requirements where flame resistant materials are specified. Cut to length using shears or a utility knife; avoid stretching the tape during application.

Technical Specifications

• Width: 1 inch
• Length: 50 yards
• Thickness: 0.15 inches
• Color: Black
• Flame Resistance: Yes
• Unit of Measure: Roll
• Weight: 1.65 pounds
• Minimum Order Quantity: 12 rolls per case
• UPC: 00021200626760

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000051776
