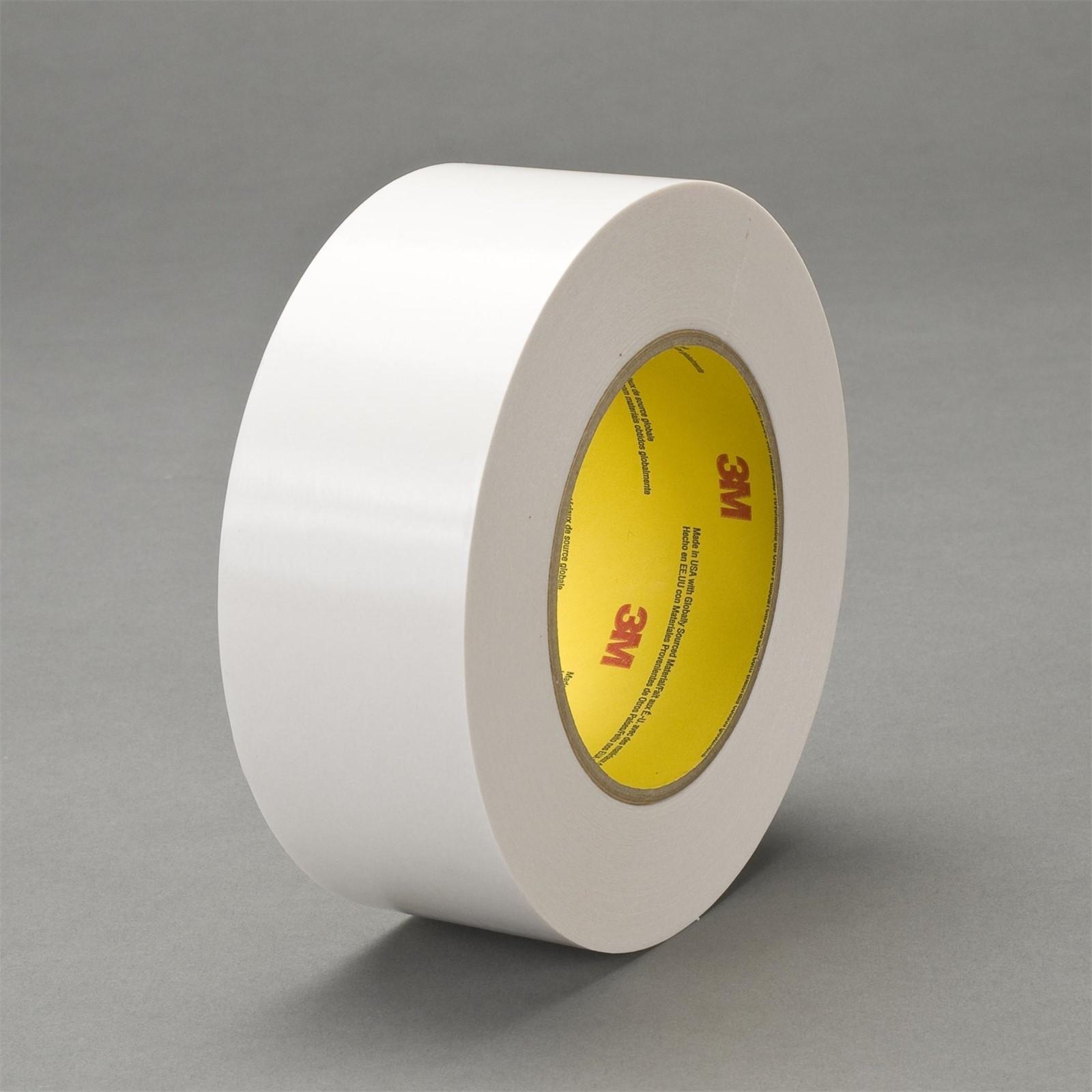

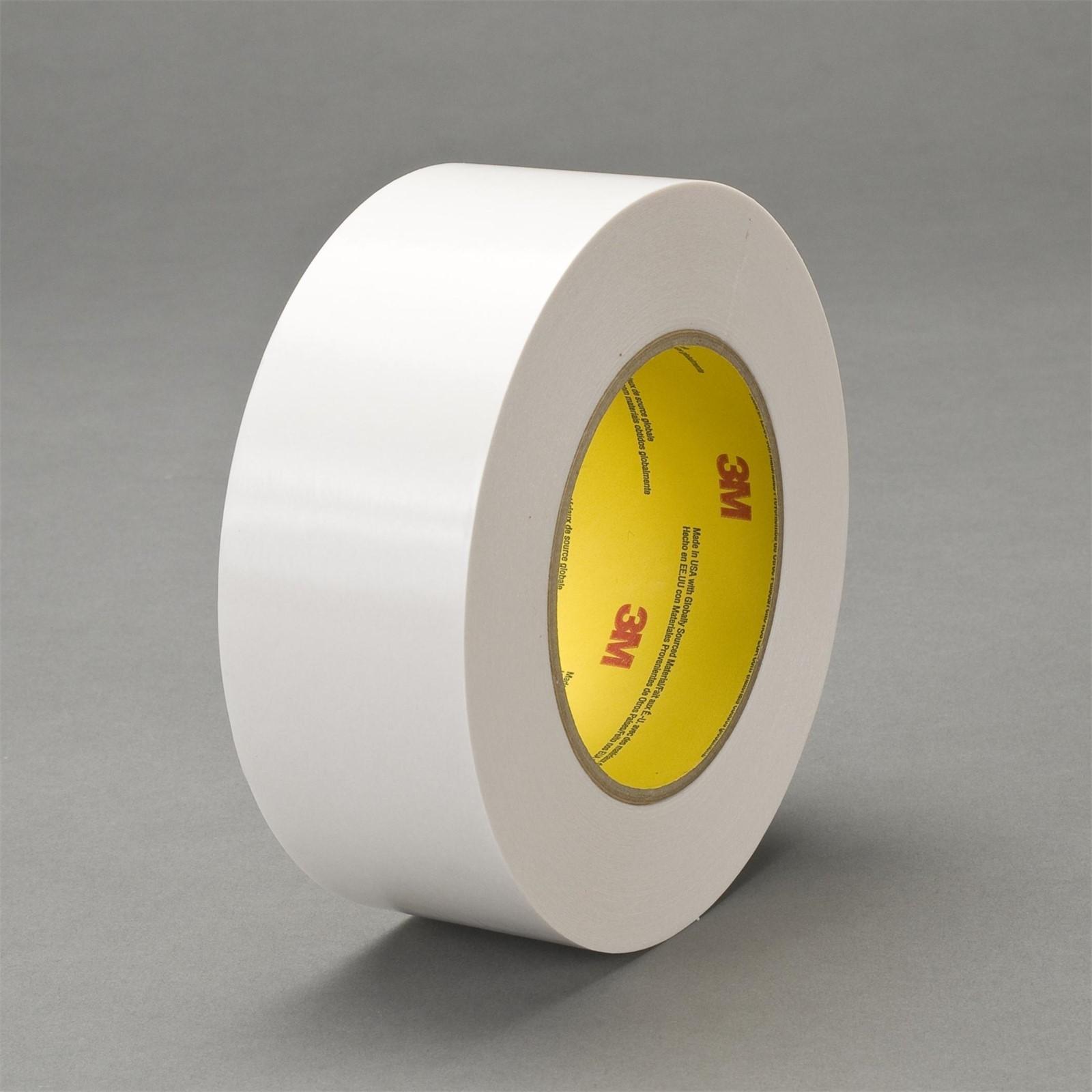

3M 7000049276 Double Coated Tape 0.95 in 60.15 Yd Roll

Product Description

The 3M 7000049276 is a double-coated pressure-sensitive tape built on a non-woven tissue carrier with an acrylic adhesive on both sides. It delivers a strong balance of high initial tack and reliable holding power across a wide temperature range. The tape ships on a 55 lb. densified kraft paper liner that simplifies release and placement during application. At 0.95 inches wide and 60.15 yards long per roll, it suits high-volume industrial splicing and bonding operations. Installers and production technicians working in converting, printing, and packaging lines are the primary users of this product.

This tape is designed for high-speed splicing applications where fast adhesion and consistent shear strength are required. It bonds reliably to kraft paper, coated papers, and plastic substrates, making it a practical choice for web splicing on printing presses, paper converting lines, and similar continuous-feed manufacturing processes. Its good moisture resistance supports performance in environments where humidity or minor exposure to liquids is a factor.

Key Features

• Pressure-sensitive acrylic adhesive provides high initial tack and strong holding power
• Non-woven tissue carrier supports clean, consistent performance in splicing operations
• Performs across a broad temperature range without adhesive failure
• Excellent peel, tack, and shear strength for rigorous splicing demands
• Bonds to kraft paper, coated papers, and plastic substrates
• Good moisture resistance for varied operating environments
• 55 lb. densified kraft paper liner for easy release and controlled application

Compatibility

Designed for high-speed splicing and double-sided bonding applications in paper converting, printing, and packaging operations where adhesion to paper and plastic substrates is required.

Installation Notes

This tape is applied by production technicians and industrial maintenance personnel, not a licensed trade contractor. Ensure the bonding surface is clean, dry, and free of dust or oils before application. Liner should be removed carefully to avoid stretching the tissue carrier. Follow the equipment manufacturer guidelines for splice tension and overlap length in automated splicing systems.

Technical Specifications

• Width: 0.95 inches
• Length: 60.15 yards
• Unit of Measure: Roll
• Adhesive Type: Pressure-sensitive acrylic
• Carrier: Non-woven tissue
• Liner: 55 lb. densified kraft paper
• Color: Transparent
• Package Weight: 0.62 pounds
• Package Length: 12.31 inches
• Package Width: 12.31 inches
• Package Height: 12.63 inches
• UPC: 00051115316555

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000049276
