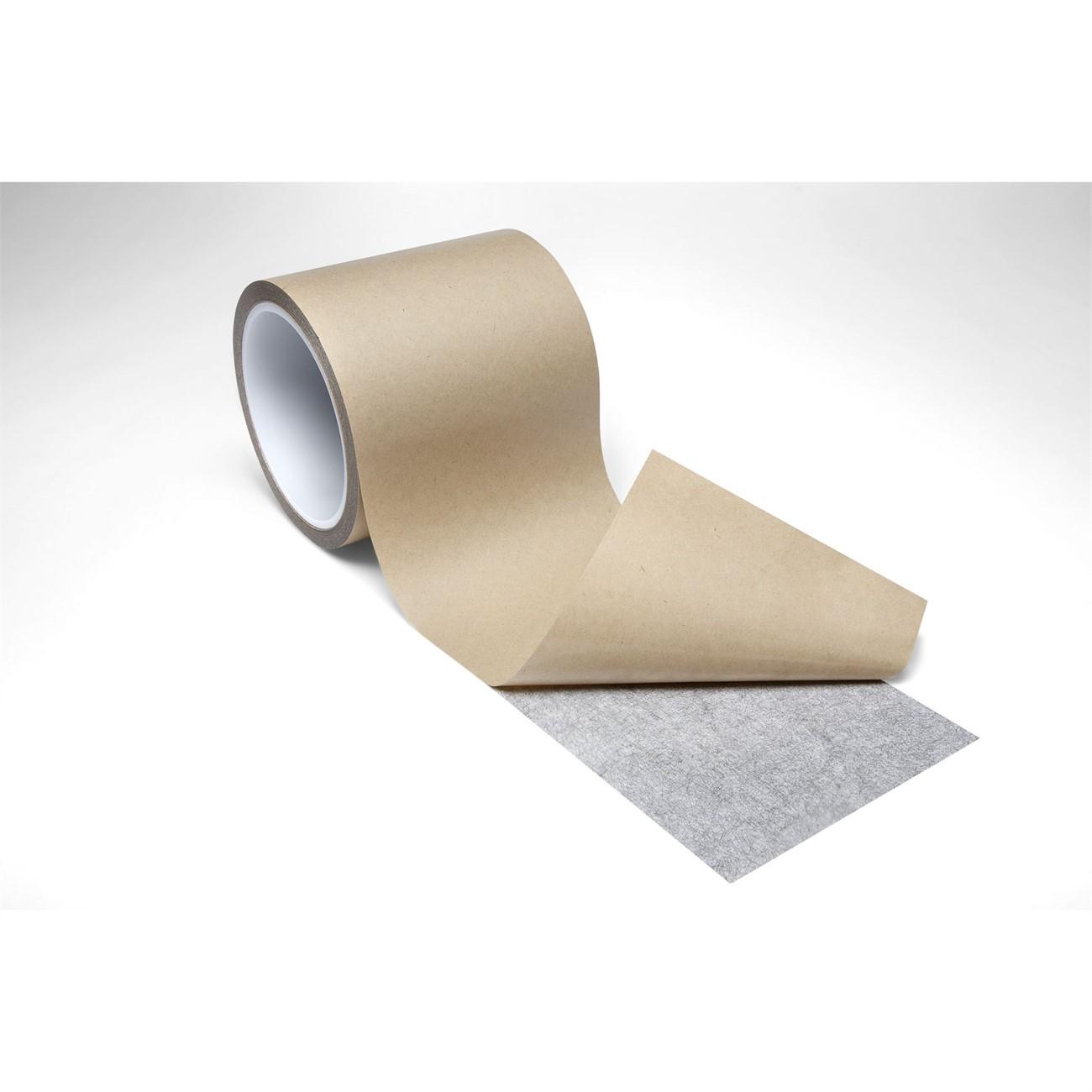

3M 7000048870 Electrically Conductive Tape 9713 1in X 36yd

Product Description

The 3M 7000048870 is an XYZ-axis electrically conductive pressure-sensitive tape designed for EMI and RFI shielding in demanding electronic assemblies. This is 3M tape 9713, measuring 1 inch wide by 36 yards long at 3.0 mil thickness with a 4.0 mil polycoated kraft paper liner. The acrylic adhesive system delivers medium-temperature performance and high solvent resistance. It bonds effectively to both high surface energy (HSE) and low surface energy (LSE) substrates, making it suitable across a broad range of component and housing materials. Licensed electricians and electronics assembly technicians working in shielding applications will find this tape suited to high-productivity workflows.

This tape is used in electronic device manufacturing, EMI shielding enclosures, PCB grounding paths, and RF shielding gasket applications. Its XYZ-axis conductivity means electrical continuity is maintained in all three dimensional planes, not just along the tape surface. It is well suited for shielding seams, grounding flex circuits, and bonding conductive materials in commercial and industrial electronic assemblies where solvent exposure and temperature variation are concerns.

Key Features

• XYZ-axis electrical conductivity for three-dimensional EMI and RFI shielding
• Pressure-sensitive acrylic adhesive with medium-temperature and high solvent resistance
• Bonds to both high surface energy and low surface energy substrates
• 3.0 mil tape thickness with 4.0 mil polycoated kraft paper liner for controlled application
• 1 inch width by 36 yard roll length for high-productivity coverage

Compatibility

Designed as a conductive adhesive tape for EMI and RFI shielding applications in electronic assemblies requiring XYZ-axis conductivity across HSE and LSE substrate types.

Installation Notes

Installation is typically performed by electronics assembly technicians or licensed electricians working on shielding enclosures and grounded circuit paths. Ensure all surfaces are clean, dry, and free of oils or contaminants before applying the tape to achieve full adhesive contact. Power down and de-energize any circuit or assembly before applying conductive tape to live shielding paths. Follow applicable IPC standards and facility ESD protocols when handling conductive materials in sensitive electronic environments.

Technical Specifications

• Tape Thickness: 3.0 mil
• Liner Thickness: 4.0 mil
• Liner Material: Polycoated Kraft Paper
• Width: 1 inch
• Length: 36 yards
• Adhesive Type: Pressure Sensitive Acrylic
• Conductivity Axis: XYZ-Axis
• Application: EMI/RFI Shielding
• Temperature Performance: Medium Temperature
• Solvent Resistance: High
• Weight: 0.56 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 9
• UPC: 00021200432156

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048870
