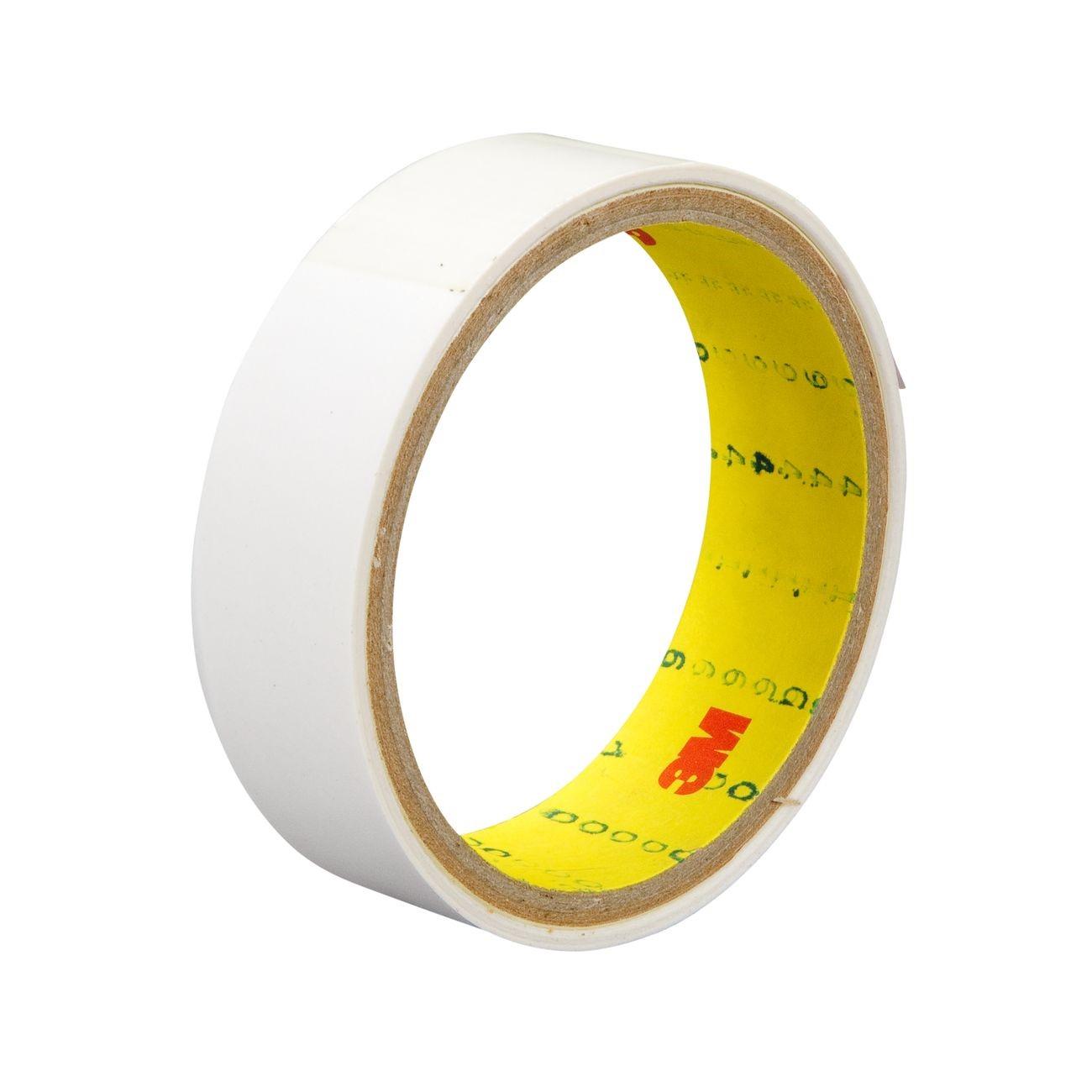

3M 7000048535 Repositionable Double Coated Tape 9416 White

Product Description

The 3M 7000048535 is a double coated tissue tape featuring two distinct acrylic adhesives on a 70 lb polycoated kraft paper liner. One side carries Acrylic Adhesive 400, which delivers strong peel strength and good low-temperature performance across a wide range of substrates including metals, glass, wood, paper, paint, and many plastics. The opposite side uses Repositionable Acrylic Adhesive 1000, which bonds firmly to most surfaces yet releases cleanly without leaving residue. The tape measures 0.75 inches wide by 72 yards long with a total thickness of 2.6 mil. This product is white in color and is sold per roll.

This tape suits applications where one bond must be permanent and the other must allow repositioning or clean removal. Typical uses include window label mounting, paper bonding, light assembly work, and general fabrication tasks that require differential adhesion. The UV resistance and optical clarity of Adhesive 400 make it well suited for label and glazing applications. Short-term heat resistance up to 250 degrees F extends its usability in environments with moderate thermal exposure. Trade professionals in signage, light manufacturing, and facilities maintenance will find this tape useful across a broad set of bonding and assembly tasks.

Key Features

• Differential double coat: permanent Acrylic Adhesive 400 on one side, repositionable Acrylic Adhesive 1000 on the other
• Short-term heat resistance up to 250 degrees F
• UV resistant with good optical clarity for window and label applications
• Good solvent resistance from Adhesive 400
• Clean removal provided by Repositionable Acrylic Adhesive 1000 with no surface damage
• Carrier: double coated tissue on a 70 lb polycoated kraft paper liner

Compatibility

Designed for bonding similar and dissimilar materials including metals, glass, wood, papers, painted surfaces, and many plastics where a differential adhesive system is required.

Installation Notes

Surface preparation is critical — clean and dry all substrates before application to ensure full adhesive contact. When using the repositionable side, avoid repeated re-application cycles, as adhesive performance may diminish over time. Store unused rolls away from direct heat and humidity to preserve adhesive integrity. No specialized tools are required for application, though a roller or squeegee helps ensure uniform contact on flat surfaces.

Technical Specifications

• Width: 0.75 inches
• Length: 72 yards
• Thickness: 2.6 mil
• Color: White
• Adhesive System: Acrylic Adhesive 400 (permanent) and Repositionable Acrylic Adhesive 1000
• Liner: 70 lb polycoated kraft paper
• Short-Term Heat Resistance: 250 degrees F
• Weight: 0.54 pounds
• Unit of Measure: Roll
• UPC: 00021200678547

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048535
