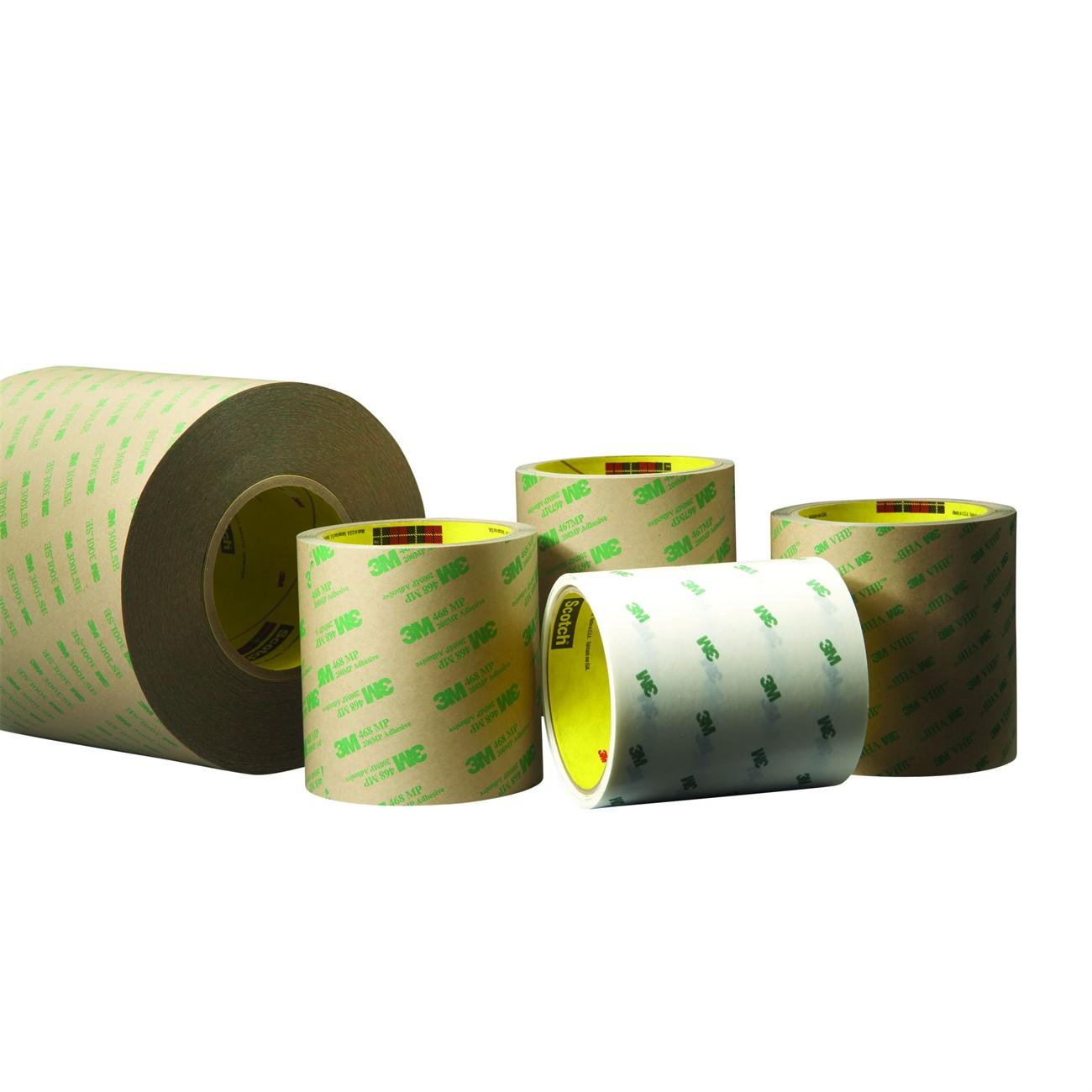

3M 7000048452 Adhesive Transfer Tape 1 in 60 Yd High Temp

Product Description

The 3M 7000048452 is a transparent, double-sided adhesive transfer tape built on 3M High Temperature Acrylic Adhesive 100. The tape is 2 mil (0.05 mm) thick, 1 inch wide, and 60 yards long, delivering a thin profile without sacrificing bond integrity. It is designed for high-strength, high-temperature, and chemically demanding applications in the aerospace, automotive, and electronics industries. A 62-lb densified kraft paper release liner is included and helps reduce edge burr during hand tool processing of metal plates. Licensed contractors, assembly technicians, and fabricators working in precision bonding environments are the primary installers of this product.

This tape is suited for applications that require a long-lasting bond under thermal stress, UV exposure, and chemical contact. It performs in both residential and commercial fabrication environments, with particular relevance in aerospace structural bonding, automotive trim and component assembly, and electronics manufacturing where low outgassing is a critical requirement. The tape is processed in roll form, making it compatible with standard hand tool and automated dispensing workflows.

Key Features

• High Temperature Acrylic Adhesive 100 base provides short-term temperature tolerance up to 450 degrees F (232 degrees C)
• 2 mil (0.05 mm) thickness delivers a thin, low-profile bond layer
• Low outgassing properties meet the requirements of aerospace, automotive, and electronics applications
• 62-lb densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
• Outstanding UV and chemical resistance for performance longevity
• High peel and shear strength suitable for extreme operating conditions

Compatibility

Designed for bonding applications in aerospace, automotive, and electronics markets where high temperature acrylic adhesive performance and low outgassing are required.

Installation Notes

Application should be performed by qualified technicians familiar with pressure-sensitive adhesive transfer tapes. Clean and dry all bonding surfaces thoroughly before application to ensure maximum adhesion. Apply firm, even pressure across the tape surface after positioning to achieve full contact bond. Follow applicable industry and facility safety standards when working with adhesives in enclosed or low-ventilation environments.

Technical Specifications

• Width: 1 inch
• Length: 60 yards
• Thickness: 2 mil (0.05 mm)
• Short-Term Temperature Tolerance: 450 degrees F (232 degrees C)
• Adhesive Type: High Temperature Acrylic Adhesive 100
• Liner: 62-lb densified kraft paper
• Appearance: Transparent
• Unit of Measure: Roll
• Weight: 0.51 pounds
• UPC: 00021200117091

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048452
