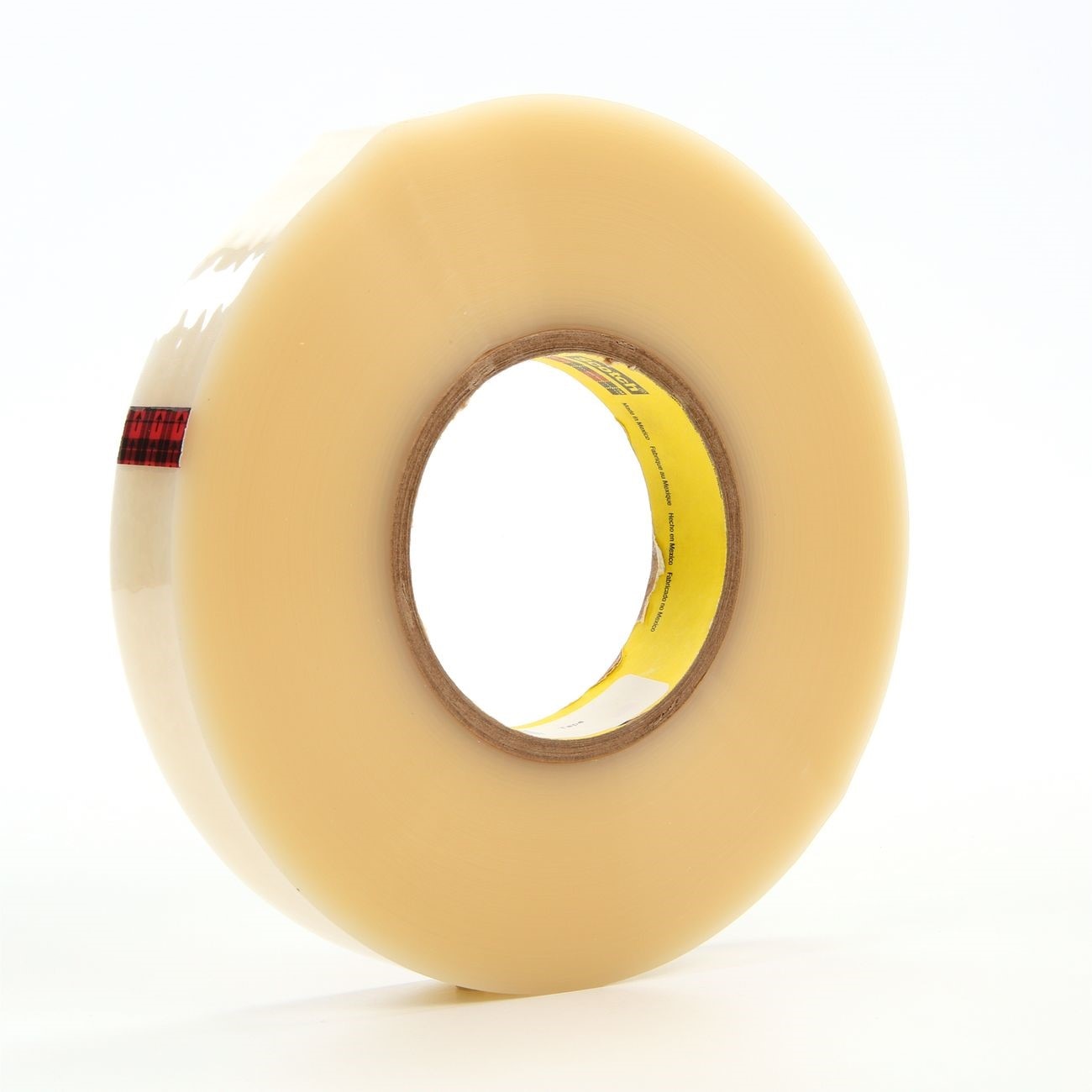

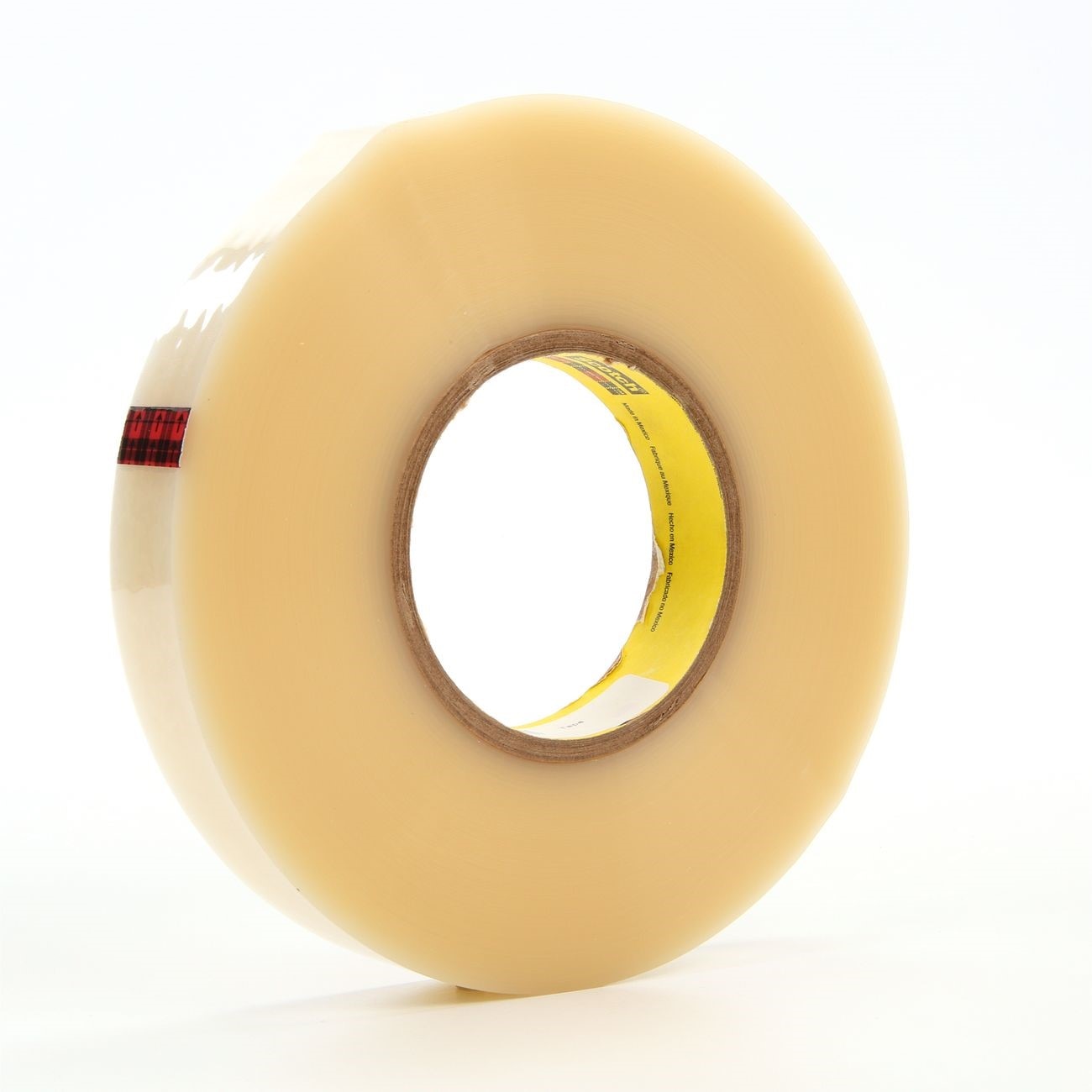

3M 7000047524 Polyester Film Tape 853 Transparent 2.2 Mil

Product Description

The 3M 7000047524 is a transparent polyester film tape rated at 2.2 mil total thickness, backed with a solvent-resistant acrylic adhesive. Designed for demanding industrial splicing and masking applications, the film carrier is a dimensionally stable polyester that resists stretching under high tension. The acrylic adhesive system delivers strong chemical and solvent resistance, reducing the risk of adhesive softening or undercutting in environments where solvents or aggressive process chemicals are present. This roll measures 0.75 inches wide by 72 yards long and weighs 0.22 pounds. It is handled by maintenance technicians, production line operators, and industrial tradespeople working in manufacturing and processing environments.

This tape is suited for high-tension butt splicing applications where film integrity and adhesive stability are critical. Typical use cases include splicing rolls of film or foil in converting operations, masking during precision coating or plating processes, and holding components during high-temperature or solvent-exposed processing steps. The transparent film allows visual alignment during application, which is useful in close-tolerance splicing work. It is sold by the roll with a minimum order quantity of 48 rolls.

Key Features

• 2.2 mil polyester film carrier resists stretching under high tension
• Solvent-resistant acrylic adhesive provides high chemical resistance
• Transparent film enables accurate visual alignment during splicing
• Engineered for high-tension butt splicing in converting and manufacturing environments
• Roll size: 0.75 inches wide by 72 yards long

Compatibility

Designed as an OEM-style industrial tape solution for high-tension butt splicing and solvent-resistant masking applications in manufacturing and converting operations.

Installation Notes

Application is typically performed by production technicians or maintenance personnel. Ensure the substrate surface is clean, dry, and free of oils or contaminants before applying the tape. Firm pressure application improves initial adhesion and long-term bond performance. Follow all applicable facility safety protocols when working near solvents or chemical process environments.

Technical Specifications

• Film Thickness: 2.2 mil (0.05 mm)
• Width: 0.75 inches
• Length: 72 yards
• Film Material: Polyester
• Adhesive Type: Solvent-resistant acrylic
• Finish: Transparent
• Unit of Measure: Roll
• Weight: 0.22 pounds
• UPC: 00021200035876

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047524
