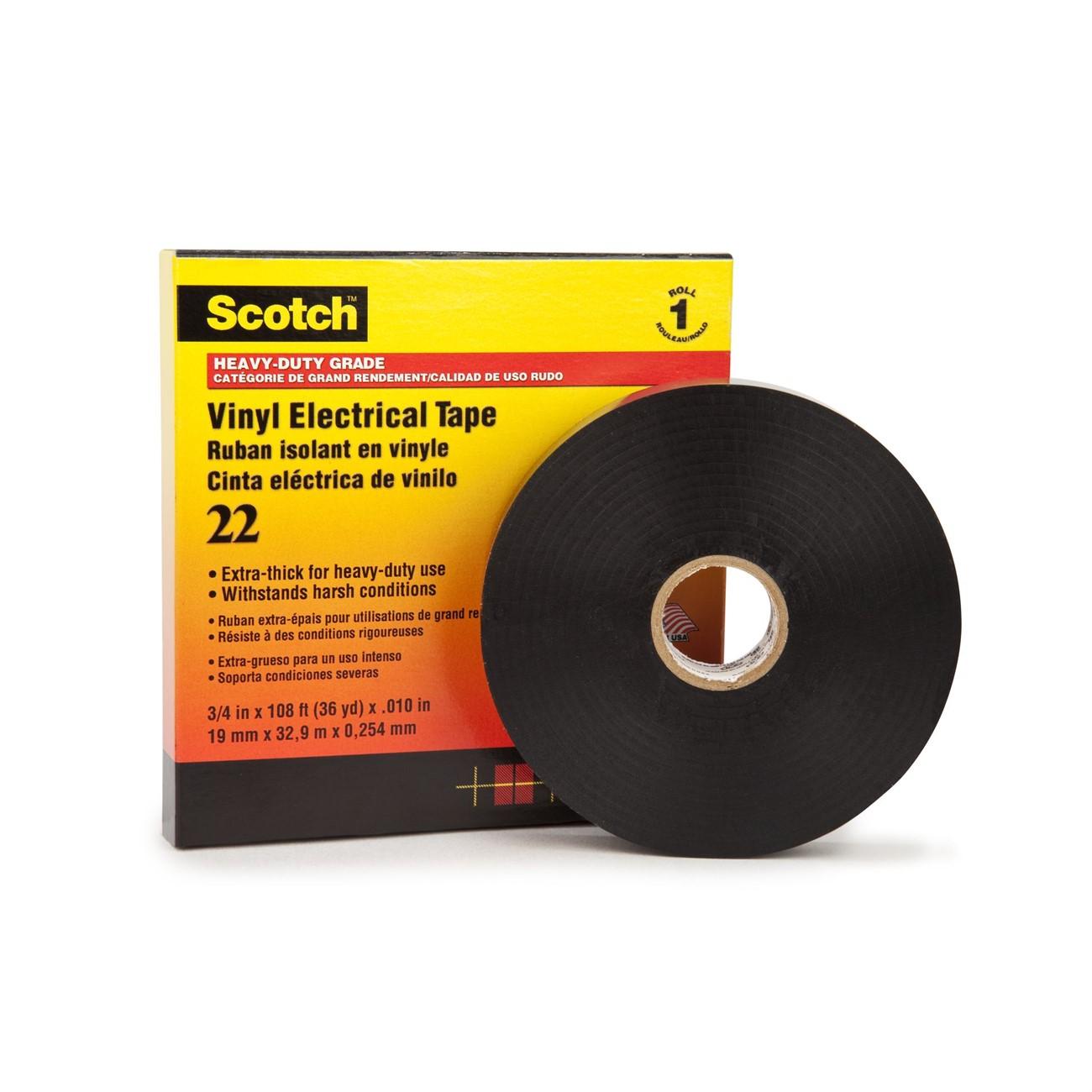

3M 7000031344 Heavy Duty Vinyl Electrical Tape 10-mil

Product Description

The 3M 7000031344 is a heavy duty vinyl electrical insulation tape rated for use up to 600 volts and 176 degrees F (80 degrees C). At 10 mils thick, it is one of the thickest vinyl electrical tapes in the Scotch lineup, built for insulation applications that demand greater mechanical strength and abrasion resistance. The tape measures 0.75 inches wide by 36 yards long per roll and is UL Listed under UL 510 as a flame-retardant electrical insulation tape. Electricians and maintenance technicians use it where standard-duty vinyl tape is not sufficient for the job.

This tape is suited for heavy duty insulation work in both residential and commercial electrical applications. Typical uses include insulating wire splices, terminations, and connections where mechanical abuse or abrasion is a concern. Its thickness makes it a practical choice for applications involving irregular surfaces or locations where extra dielectric protection is required. Each roll is sold individually, with a minimum order quantity of 12 rolls.

Key Features

• 10-mil thickness provides superior mechanical strength compared to standard vinyl electrical tapes
• UL Listed for electrical insulation up to 600 volts
• Rated to 176 degrees F (80 degrees C) for use in higher-temperature environments
• UL 510 flame-retardant construction
• High abrasion resistance suited for demanding insulation applications
• 0.75 inches x 36 yards per roll for extended coverage

Compatibility

Designed as a heavy duty electrical insulation tape for use on wire splices, terminations, and connections in standard electrical wiring systems rated up to 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and verify circuits are de-energized before applying tape to any splice or termination. Ensure surfaces are clean and dry before wrapping to achieve proper adhesion. Do not use this tape as a substitute for listed wire connectors or as primary insulation where code requires listed components.

Technical Specifications

• Tape Thickness: 10 mils
• Width: 0.75 inches
• Length: 36 yards per roll
• Voltage Rating: 600 volts
• Temperature Rating: 176 degrees F (80 degrees C)
• Flame Rating: UL 510 Flame-Retardant
• Listing: UL Listed Electrical Insulation
• Weight: 0.54 pounds
• Unit of Measure: Roll
• UPC: 00054007100348

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000031344
