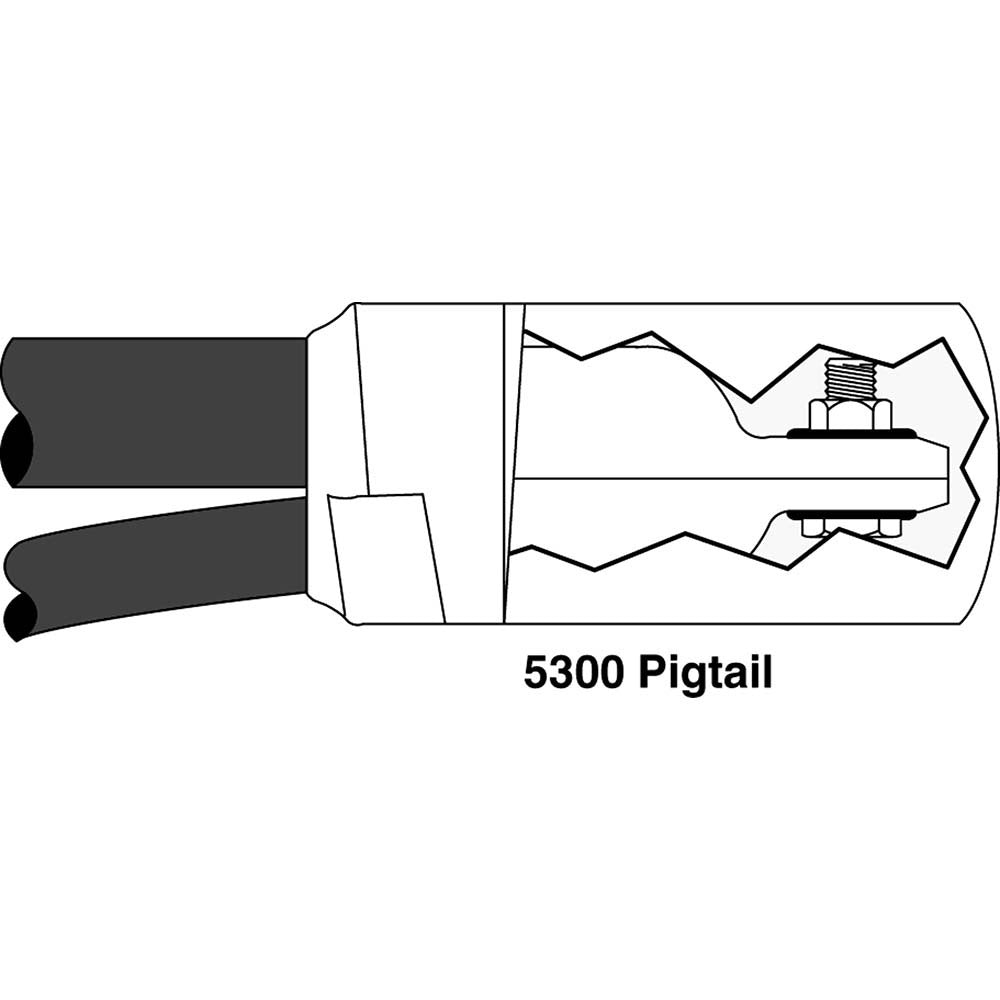

3M 7000005806 Molded Connector Kit 2-1/0 Awg

Product Description

The 3M 7000005806 is a molded connector kit designed for splicing feeder and motor lead conductors in electrical installations. The kit accommodates feeder wire sizes from 2 AWG up to 1/0 AWG and motor lead wire sizes from 4 AWG up to 1/0 AWG, covering a metric cross-section range of 25 to 50 square millimeters. Each package includes three splices, making it suitable for three-phase connections in a single kit. Licensed electricians and industrial maintenance technicians use this kit where reliable, insulated conductor splicing is required in motor circuit applications.

This kit is suited for use in motor feeder circuits, variable frequency drive installations, and general electrical distribution work where conductor splices must be protected and insulated to code requirements. The molded construction provides consistent compression and insulation around the splice joint. It is appropriate for both new construction and retrofit work in commercial and industrial electrical systems.

Key Features

• Accommodates feeder wire from 2 AWG to 1/0 AWG (35 to 50 sq mm)
• Accommodates motor lead wire from 4 AWG to 1/0 AWG (25 to 50 sq mm)
• Includes three splices per kit for complete three-phase motor circuit coverage
• Black insulator color provides visual identification and UV resistance typical of molded splice components
• Molded connector design delivers uniform insulation and mechanical protection at the splice point

Compatibility

Designed as an OEM-style replacement and standard-use molded connector kit for feeder and motor lead splicing applications within the compatible wire size range of 2 to 1/0 AWG (25 to 50 sq mm).

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for conductor splicing and motor circuit wiring. De-energize and lock out the circuit at the disconnect or overcurrent device before beginning any splice work. Verify conductor size falls within the kit's specified AWG range before installation. Do not reuse splice components once applied.
