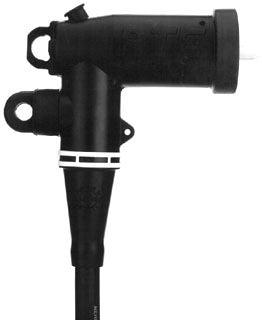

3M 5810-CA-2 200 Amp Industrial Loadbreak Elbow 5-15 kV

Product Description

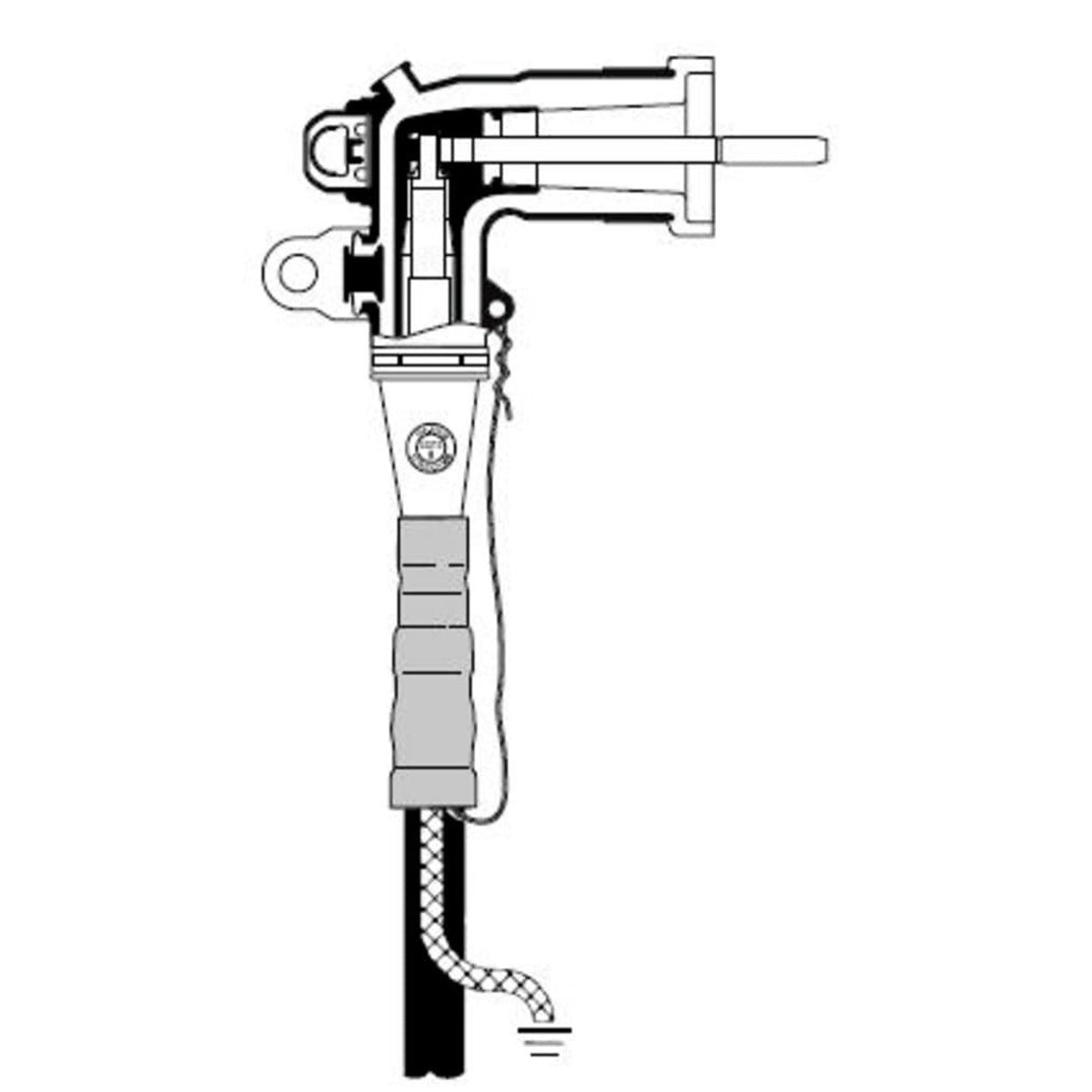

3M 5810-CA-2 is a 200 Amp Industrial Loadbreak Elbow designed for electrical applications. This elbow is suitable for use in voltage ratings from five to fifteen kilovolts. The kit includes essential components such as an elbow body, loadbreak probe, probe installation tool, and silicone lubricant, making it ideal for reliable connections in underground settings.

• Includes necessary installation components
• Rated for 200 amps and 5 kV to 15 kV
• Meets ANSI/IEEE Standard 386

Product Highlights

This industrial loadbreak elbow is designed for safe and efficient connections.

Product Information

Standard Information

• Catalog Number: 5810-CA-2
• Manufacturer: 3M Electrical Products

Technical Specifications

• Insulation Material: EPDM Rubber
• Current Rating: 200 Amp
• Voltage Rating: 5 kV; 8 kV; 15 kV
• Conductor Size: 2 AWG Stranded; 1 AWG Solid
• Dimensions: Cable Insulation Outer Diameter from 0.495 to 0.585 Inch
• Sub Brand: Loadbreak Elbow
