3M 567-BOX SLF-STRIP TAP CONN 100/BX 567-BOX

Product Description

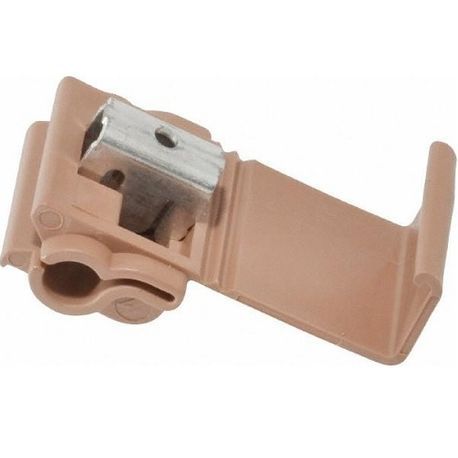

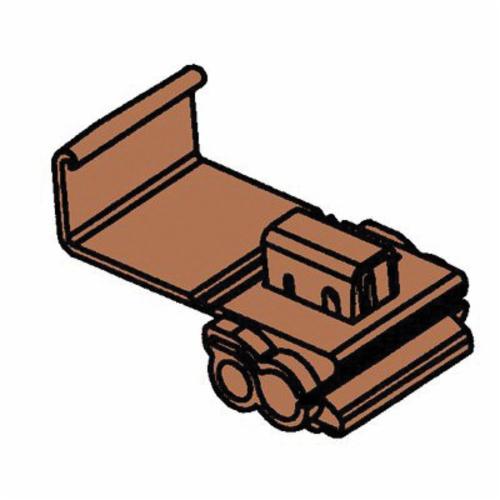

The 3M Scotchlok Insulation Displacement Connector, MPN 567-BOX, connects a tap wire to a run wire while insulating the connection. This connector is designed for various wiring needs including control circuit wiring and fixture wiring. The product is suitable for use with solid or stranded copper wire.

• Self-stripping design
• Flame retardant material
• Compatible with 18 to 14 AWG tap and 12 to 10 AWG run wires

Product Highlights

The 3M 567-BOX is ideal for electrically connecting wires in residential and commercial applications. It provides a simple and reliable solution for making tap connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 567-BOX

Technical Specifications

• Type: Insulation Displacement
• Wire Size: 18 to 14 AWG (Tap) / 12 to 10 AWG (Run)
• Voltage Rating: 600 VAC
• Material: Flame Retardant Polypropylene
• Color: Brown
• Temperature Rating: 105 deg C
• Dimensions: 0.03 in THK
• Standard & Approvals: UL 486C, CSA Certified
