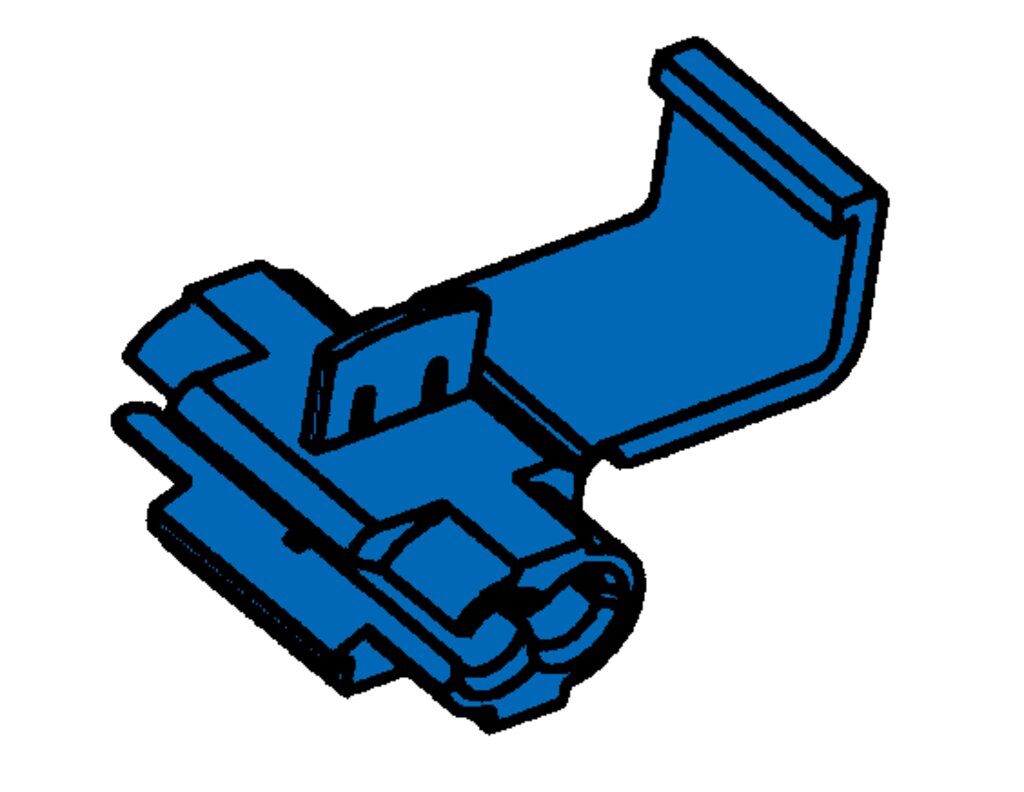

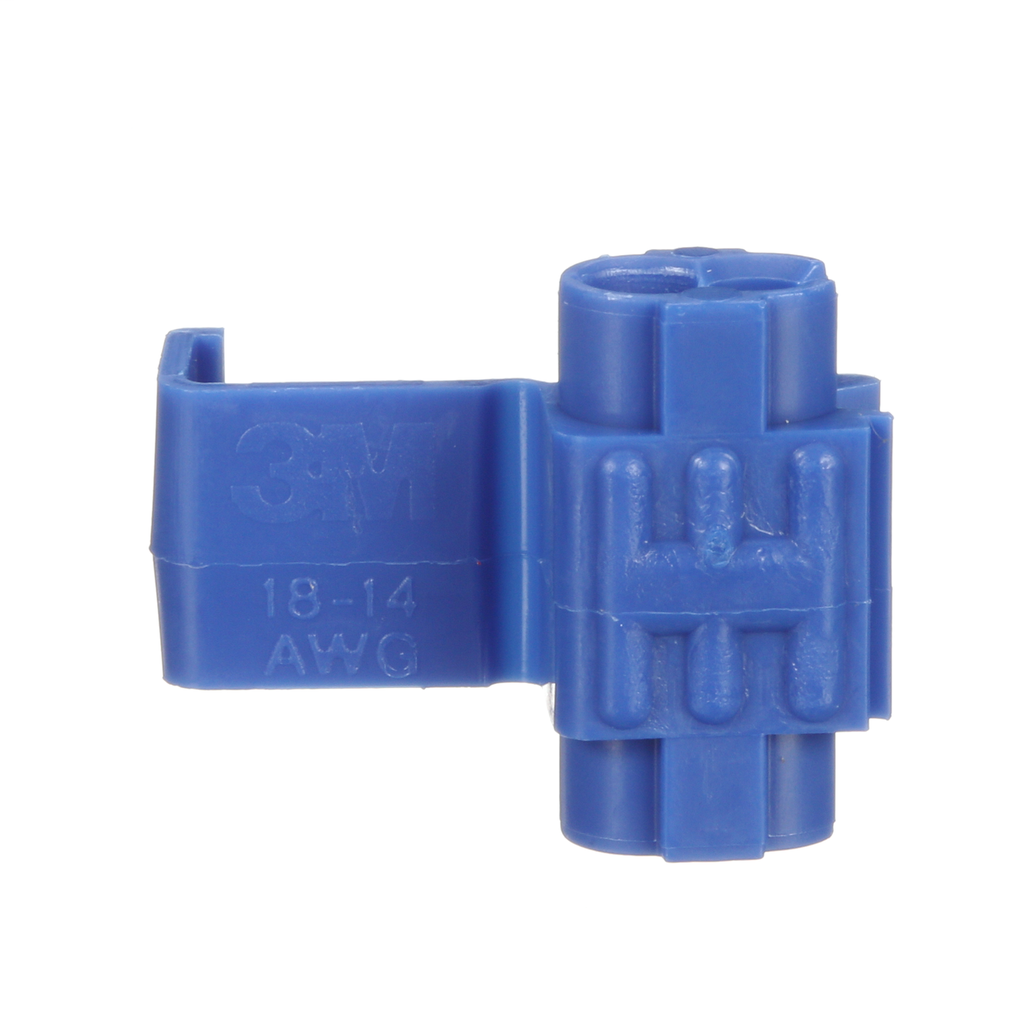

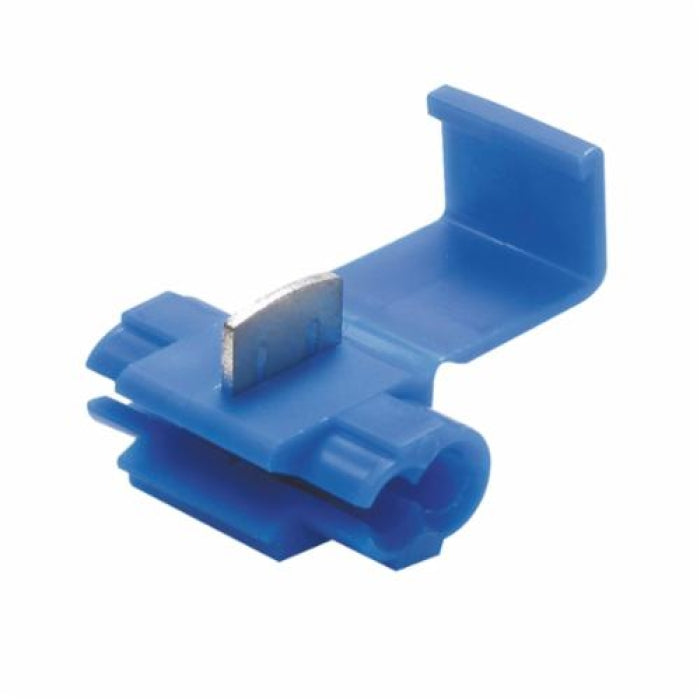

3M 560B-POUCH Scotchlok IDC Double Run or Tap Connector

Product Description

The 3M 560B-POUCH Scotchlok IDC Double Run or Tap Connector electrically connects a tap wire to a run wire while insulating the connection. Constructed with polypropylene insulation, this connector is ideal for tap or parallel splicing. It is designed for use with 18 to 16 AWG solid or stranded wire for taps or 14 AWG stranded for runs.

• Extended run and tap splicing
• Suggested application tool is E-9BM crimping tool
• 2-port configuration

Product Highlights

Connects tap wire to a run wire. Features polypropylene insulation and is designed for use with 18-16 AWG or 14 AWG wire.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 560B-POUCH

Technical Specifications

• Wire Gauge (Tap): 14 AWG
• Wire Gauge (Run): 18 to 16 AWG
• Wire Type: Stranded Wire
• Voltage: 600 VAC
• Maximum Insulation Diameter: 0.145 in
• Insulation Material: Polypropylene
• Maximum Operating Temperature: 194 deg F (90 deg C)
• Contact Material: Brass
• Contact Plating: Tin Plated
• Type: Insulation Displacement
• Brand: 3M
• Sub Brand: Scotchlok
• Wire Size: 18-16 AWG / 14 AWG Stranded
• Conductor Size: 18-16 AWG/18-14 AWG
• Temperature Rating: 194 F
• AWG: 18–16 (solid/stranded), 14 (stranded)
• Conductor Material: Tinned or untinned copper
• Standards/Approvals: RoHS Compliant|UL Listed
