3M 5535A-1/0-CU Cold Shrink QS-III Splice Kit 35 Kv

Product Description

3M Cold Shrink QS-III Inline Shielded Cable Splice Kit 5535A-1/0-CU is designed for splicing 35 kV shielded power cables. This kit features a molded silicone rubber splice body and an EPDM rubber jacket. It is suitable for inline splicing, feeder circuits, and direct burial installations.

• Rated for 35 kV cables.
• Compatible with tape shield, wire shield, UniShield, and longitudinally corrugated shielded cables.
• Designed for high-voltage applications with excellent thermal performance.

Product Highlights

This splice kit helps ensure reliable connections in electrical systems.

Product Information

Standard Information

• Brand: 3M
• MPN: 5535A-1/0-CU

Technical Specifications

• Voltage Rating: 35 kV
• Conductor Size: 1/0 AWG
• Number of Conductors: 1
• Cable Type: Longitudinally Corrugated, Tape Shielded, UniShield, Wire Shielded
• Operating Temperature: 105 degrees Celsius

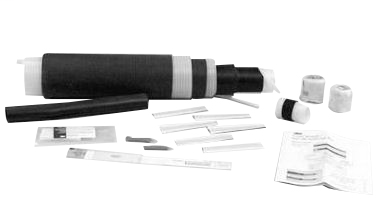

• Contents: Cold Shrink Silicone Rubber Splice Body, Adapter Tube, Jacketing Tube, Red Compound, Mastic Sealing Strip, Rubber Mastic Tape Roll, Cable Cleaning Pad, Cable Preparation Template, Instruction Booklet
• Made in USA: Yes
