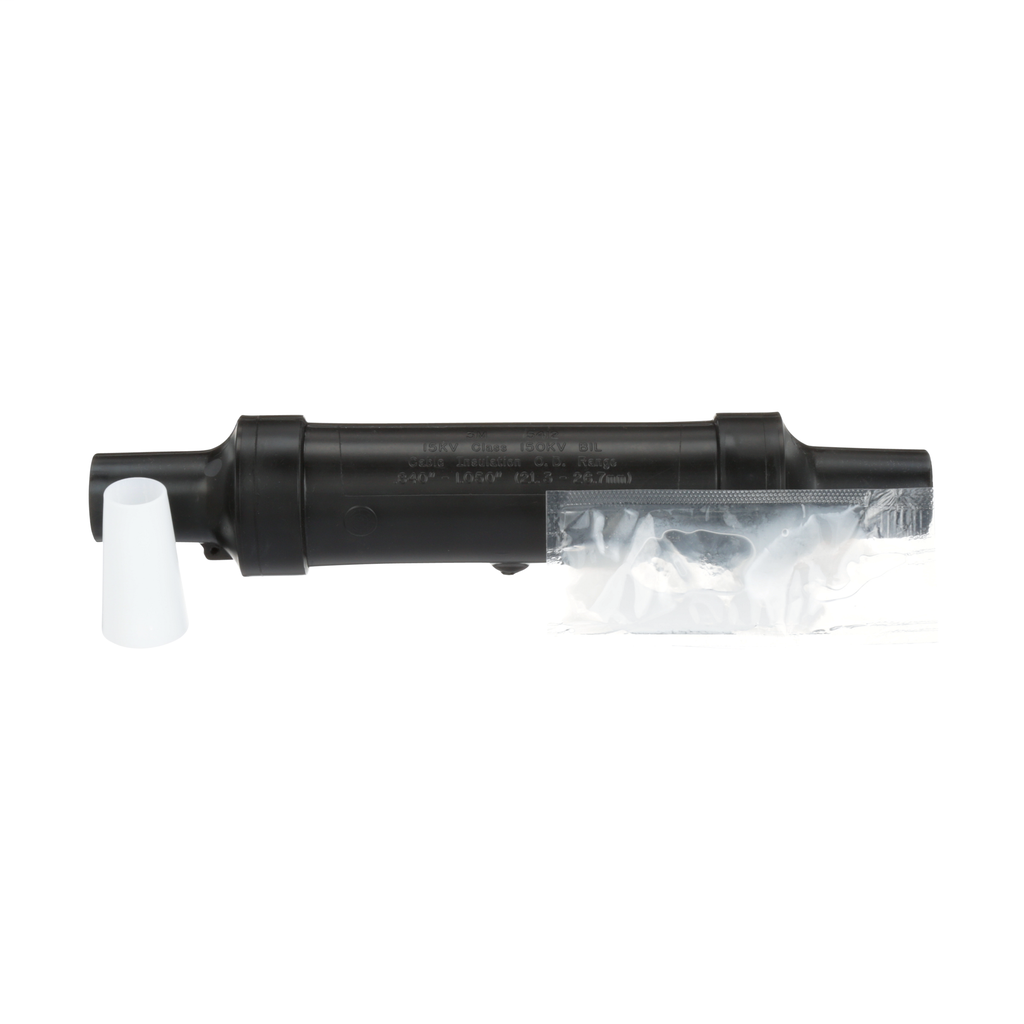

3M 5411-CI-21 Molded Rubber Inline 15 kV Splicing Kit

Product Description

The 3M Molded Rubber Inline Splicing Kit, MPN 5411-CI-21, is a one-piece solution specifically designed for 15 kV jacketed concentric neutral (JCN) and concentric neutral (CN) cables. This kit features a cold shrink jacket made from peroxide-cured EPDM rubber, ensuring moisture resistance and long-lasting durability.

• Inline splice for easy installation on JCN and CN cables.
• Factory-tested for reliability and performance.
• Includes silicone grease and an instruction sheet.

Product Highlights

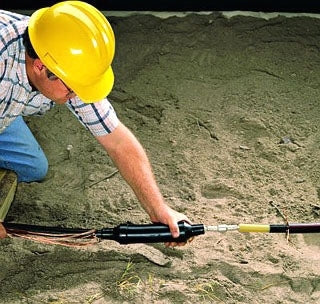

This splicing kit provides an efficient and secure way to create electrical connections. It meets IEEE 404 standards and is ideal for dry or direct buried applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 5411-CI-21

Technical Specifications

• Voltage Rating: 15 kV

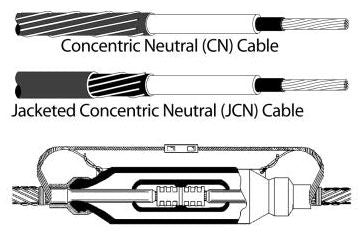

• Cable Type: Concentric Neutral, Jacketed Concentric Neutral
• Conductor Size: 2 AWG Stranded, 1 AWG Stranded (Aluminum/Copper), 1 AWG Solid, 1/0 AWG Solid (Aluminum/Copper)
• Cable Insulation Outer Diameter: 0.637 to 0.9 inch
• Number of Splices: 1
• Insulator Type: Molded Rubber
• Connector Type: CI-21
• Temperature Rating: 194 degrees F
• Contents: (1) Molded Rubber Splice, (1) Pocket of Silicone Grease, (1) Instruction Sheet
