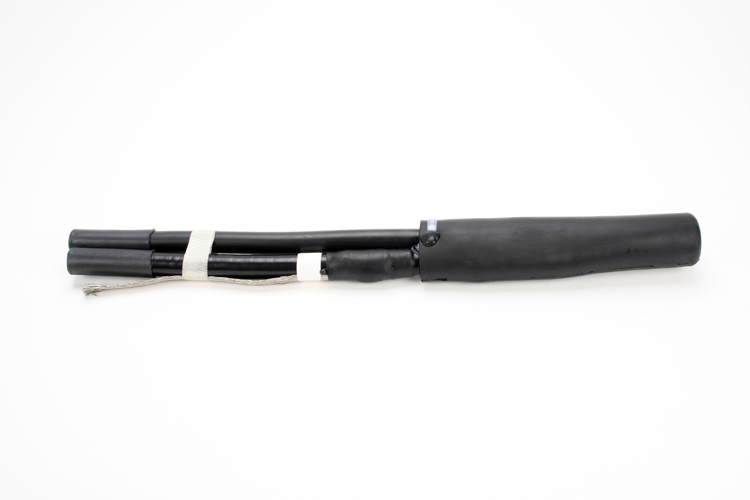

3M 5384 Motor Lead Splicing Kit, 5/8 kV, 3 Splices/Kit

Product Description

The 3M Motor Lead Splicing Kit 5384 allows for reliable connections between motor lead cables and feeder cables. This kit includes components suited for pigtail connections and accommodates both shielded and non-shielded cables. It is rated for up to 5/8 kV. The kit is designed to be used with UL-listed copper compression lugs. Each kit contains materials for three splices. Key components include silicone grease, cold shrink jackets, and grounding straps.

• Designed for use with 30000 Series copper compression lugs or other UL listed copper lugs
• Withstands temperature ranges from 90 to 130 degrees Celsius
• Perfect for use with shielded and non-shielded cables

Product Highlights

The splicing kit is effective for creating secure, moisture-resistant connections in both industrial and commercial settings.

Product Information

Standard Information

• Brand: 3M
• MPN: 5384

Technical Specifications

• Application: Splicing motor lead cables
• Voltage Rating: 5/8 kV
• Cable Size: 250 - 500 kcmil
• Includes: 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps
• Material: EPDM rubber
• Temperature Rating: 90 - 130 degrees Celsius
• Item Type: Pigtail
• Country of Origin: United States
