Product Description

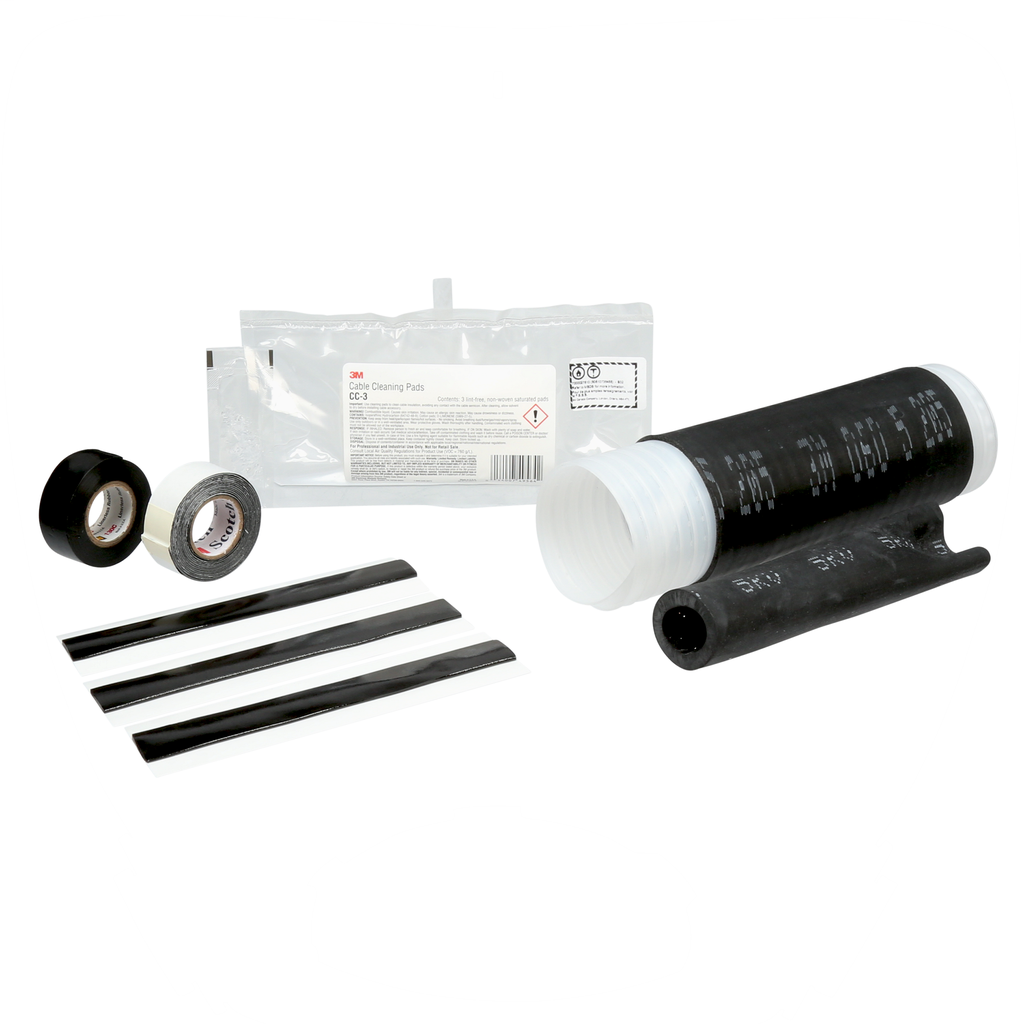

The 3M 5322 Motor Lead Pigtail Splice kit is designed for creating three splices in motor lead cables. It is suitable for feeder cables between 2 to 1/0 AWG and motor leads of 4 to 1/0 AWG. The kit does not include lugs.
- Provides splicing for polyethylene and cross-linked cable.
- Includes cold shrink tubes and sealing materials.
- Rated for voltage up to five-eighths kV.
Product Highlights
This splice kit is ideal for applications requiring high-performance insulation and moisture resistance. The materials used enhance reliability and safety in electrical installations.
Product Information
Standard Information
-
Catalog Number: 5322
-
Brand: 3M
Technical Specifications
-
Voltage Rating: 5/8 kV
-
Conductor Size: 2 to 1/0 AWG (Feeder), 4 to 1/0 AWG (Motor Lead)
-
Operating Temperature: 90 degrees C
-
Material: EPDM
-
Length: 8 to 9 inches
-
Application: For splicing motor lead cables to incoming feeder cable applications
