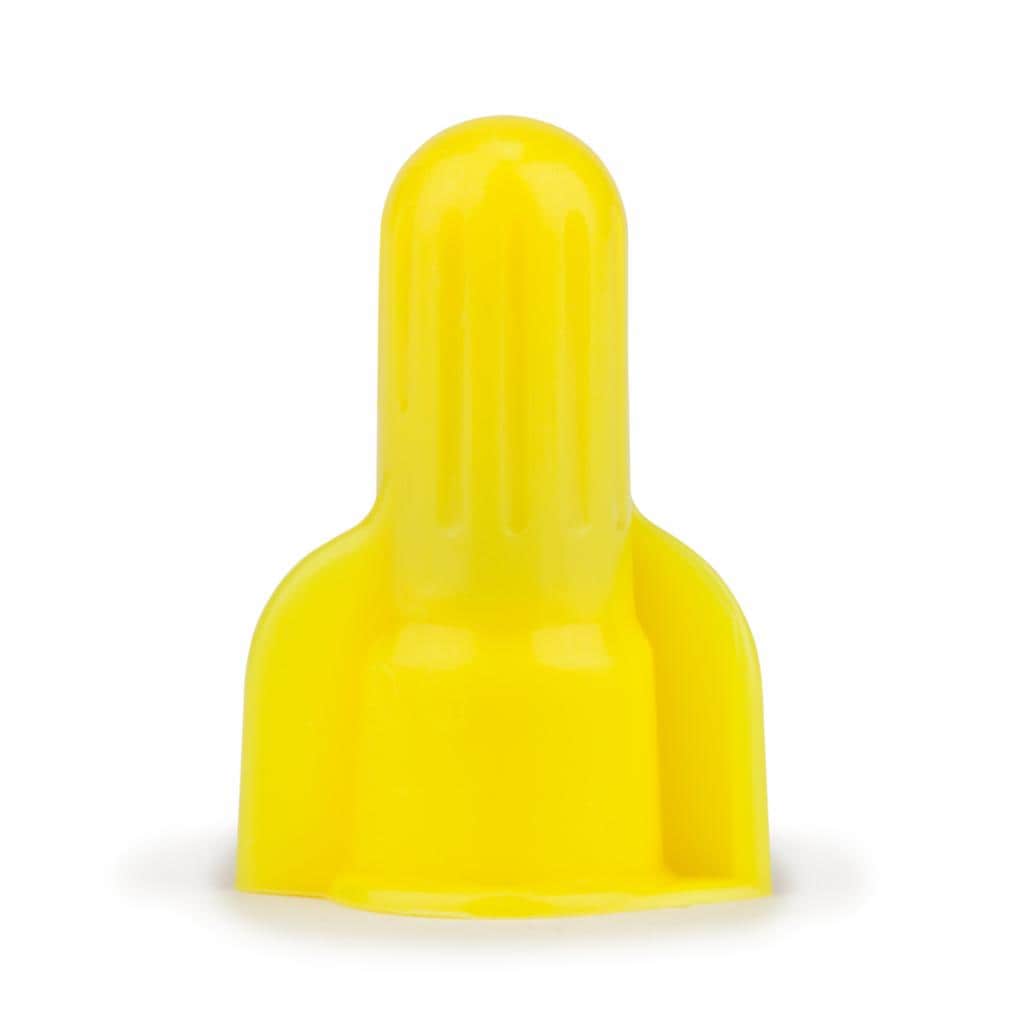

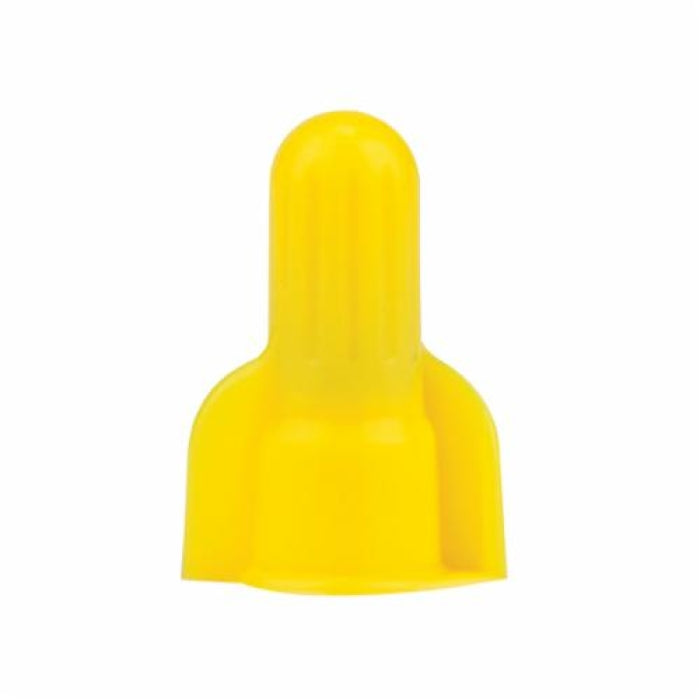

3M 312-bag twist-on wire connector 500/bag

Product Description

The 3M 312-BAG twist-on wire connectors are designed for speed and efficiency, spinning on quickly and tightening easily. Engineered for easy back-off, the live inner spring action delivers uniform holding power. These connectors are suitable for connecting 2 or more copper conductors in a pigtail application.

• Nylon insulated
• Generous expansion room accommodates a wide range of solid or stranded wire
• Corrosion resistant coating

Product Highlights

Ideal for use in applications that require safety, these connectors are UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 312-BAG
• Country of Origin: USA

Technical Specifications

• Wire Type: ALUMINUM/COPPER
• Wire Gauge: 22 to 8 AWG
• Voltage: 600 VAC
• Temperature: 221 deg F
• Material: Spring Steel
• Type: Twist On
• Brand: 3M
• Product Type: Connector
• TC Connection: Wire
• Conductor Size: 22-8 AWG
• Connection Type: Wire
• Temperature Rating: 221 Degree Fahrenheit
• Max Operating Temperature: 221 degrees F
• Voltage Rating: 600 V
• Conductor Range: 22 - 8 AWG
• Shell Style: Winged
• Spring Type: Live Action/Square Wire
• AD Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection or to Insulate a Single Wire End
• Category: FIXTURE CONNECTORS (WIRE NUTS, ETC.)
• Wire Size: 22 To 8
• Wire Size UOM: AWG
• Manufacturer Part Number: 312-BAG
• Primary Type: Non-Crimp Splice

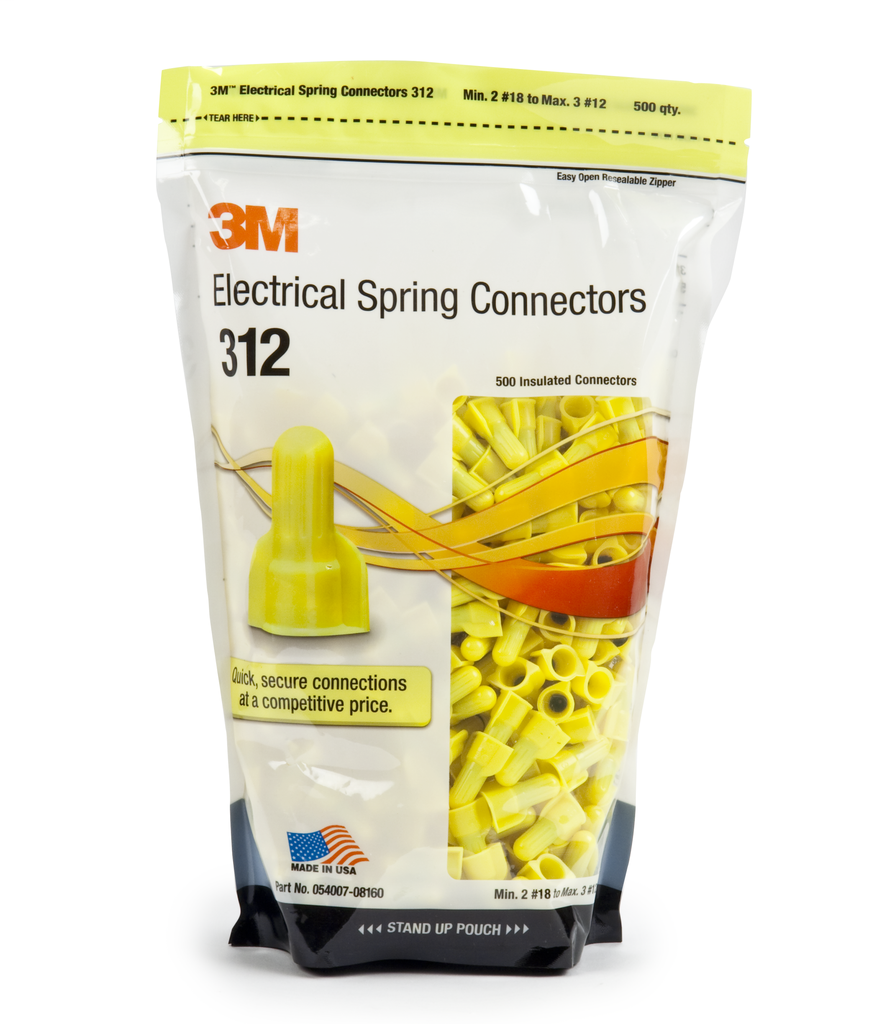

• Packaging: Bag of 500
• Use With: Copper Conductor
• Insulation Material: Nylon
• Color Family: Yellow
• Standard: UL; IEC; and CSA
• Connection: Wire
• Manufacturer: 3M
• Shell Material: Flame Retardant Nylon
• Height: 1.03 in.
• Width: 0.725 in.
• RoHS: Yes
• Country of Origin: United States
