3M 23-1.5X30FT Scotch Rubber Splicing Tape (1-1/2 in x 30 ft) 7000138529

3M
Brand: 3M
SKU: 23-1.5X30FT
Availability: In Stock

Ships same day if ordered by 12 pm
$64.91
$64.91
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

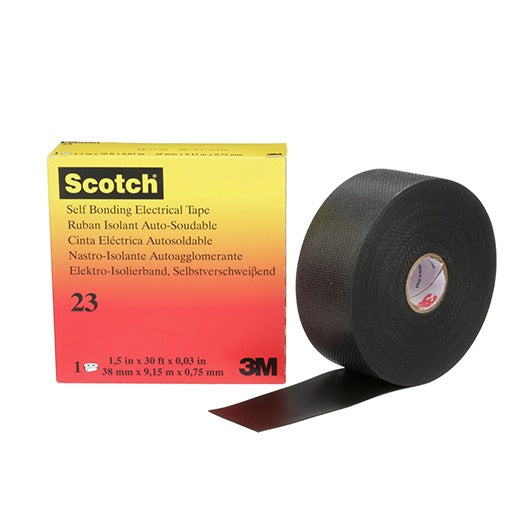

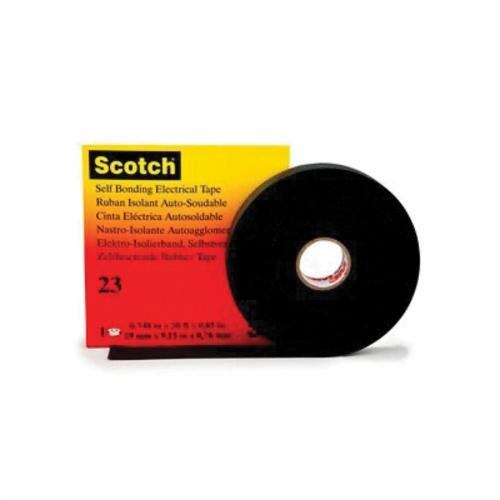

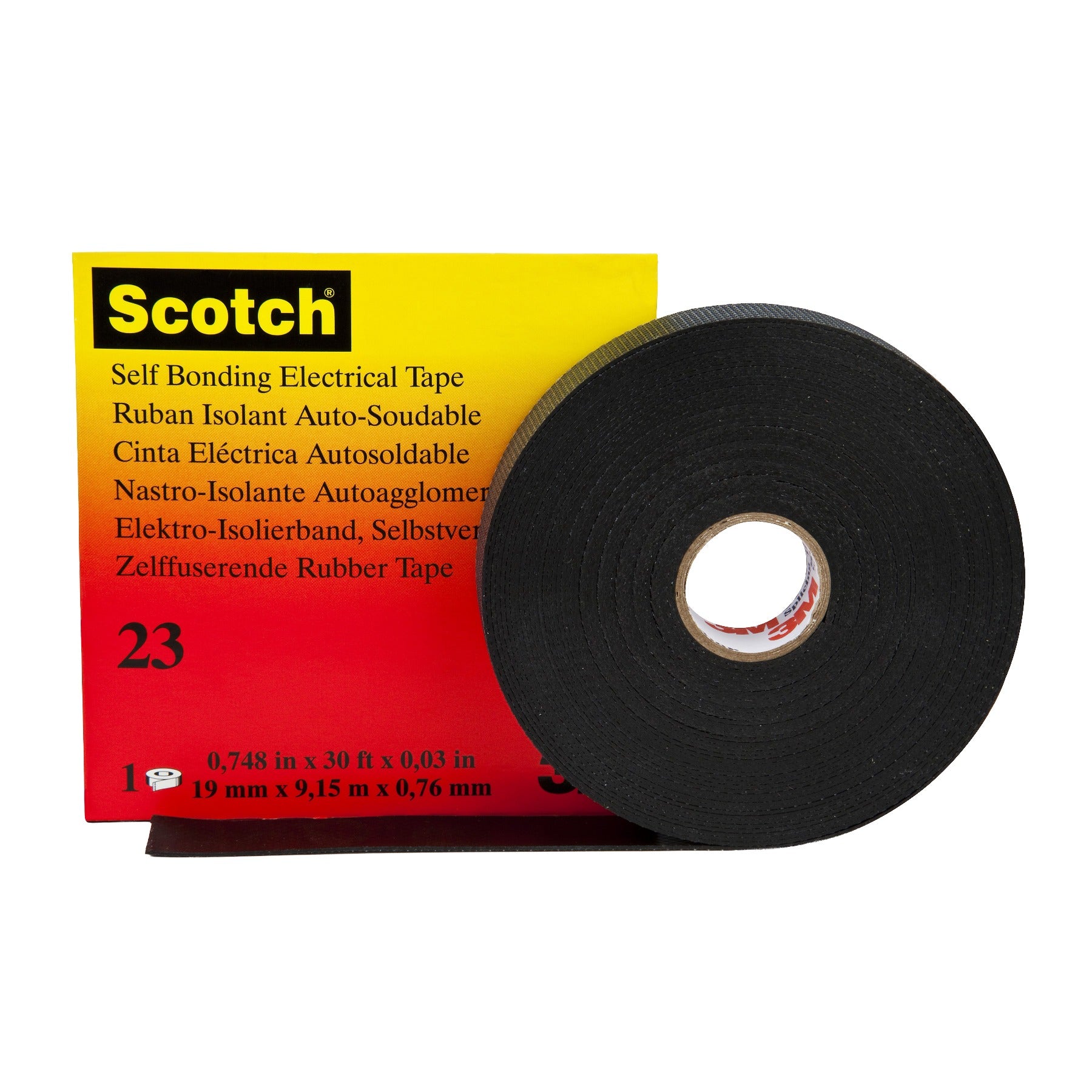

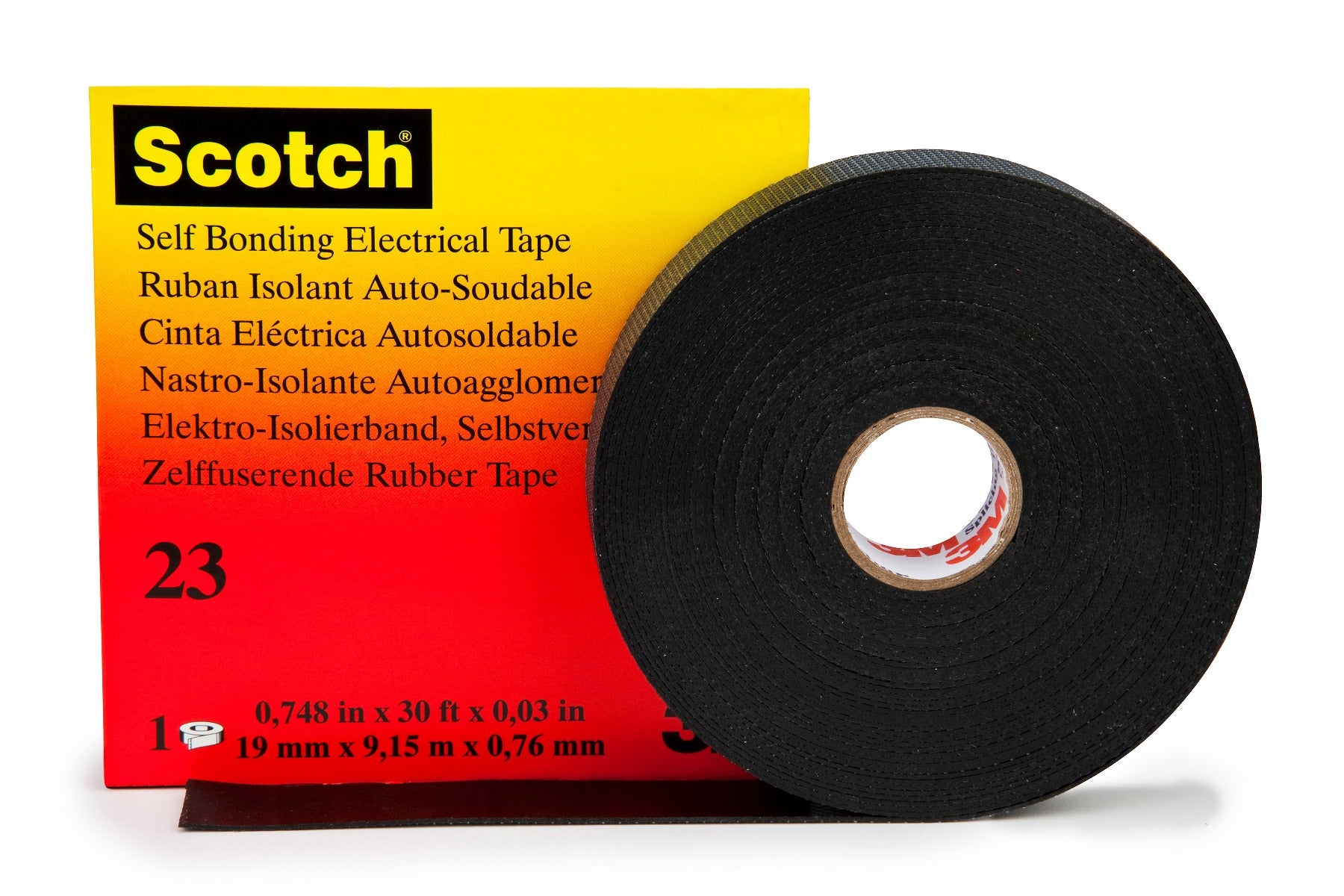

3M 23-1.5X30FT is a Scotch series 23 self-fusing ethylene propylene rubber (EPR) splicing tape for electrical splices, insulation, and jacketing. The tape is 1-1/2 in wide, 30 ft long and 30 mil thick with rubber adhesive and backing and a removable polyester snakeskin liner. It is rated for continuous use to 194 F (90 C), compatible with common cable insulations, and suitable for applications through 69 kV.

  • Self-fusing EPR construction with rubber adhesive and rubber backing; includes removable polyester snakeskin liner.
  • Dimensions: 1-1/2 in width, 30 ft length, 30 mil thickness; elongation up to 1000%.
  • Electrical ratings: voltage rating through 69 kV, dielectric strength 700 V/mil; continuous temperature to 194 F (90 C), emergency overload to 266 F (130 C).

Product Highlights

Premium-grade rubber splicing tape for insulation, sealing, and cable splices up to 69 kV with a self-amalgamating, conformable EPR backing.

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: 23-1.5X30FT
  • Country of Origin: Brazil
Technical Specifications
Manufacturer
3M
Manufacturer Part Number
23-1.5X30FT
Alternate Part Numbers
7000138529, 3MI-7000138529, 891040248145
Product Name
Scotch Rubber Splicing Tape 23
Series
23
Material
Ethylene propylene rubber (EPR)
Adhesive
Rubber adhesive / rubber-resin adhesive
Backing
Rubber
Liner
Polyester snakeskin liner (removable)
Length
30 ft (360 in, 9.1 m)
Width
1-1/2 in (38 mm)
Thickness
30 mil (0.030 in, 0.76 mm)
Elongation
1000%
Dielectric Strength
700 V/mil
Voltage Rating
Suitable for applications through 69 kV
Operating Temperature - Maximum
194 F (90 C)
Emergency Overload Temperature
266 F (130 C)
Applications
Splicing, insulation, sealing, end-sealing, jacketing for electrical cables
Compatibility
PE, XLPE, PVC, butyl rubber, EPR, oil-based rubber and other solid dielectric cable insulations
Standards
ASTM D4388-08 Type 1, 2 and 3; RoHS compliant; HH-I-3825B
Shelf Life
60 months
Country of Origin
Brazil (subject to change)
