Product Description

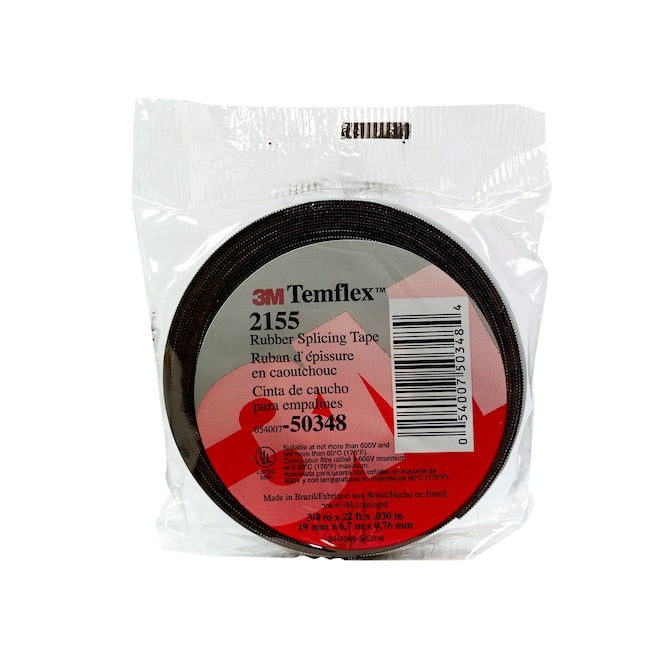

The 3M 2155 Temflex Rubber Splicing Tape measures 3/4 in. W x 22 ft. L. This self-fusing tape is designed for use with solid dielectric cable insulations and has a liner that will not stick upon unwind. It is UL Listed and RoHS 2011/65/EU Compliant.
- Rubber resin provides excellent adherence
- Self-fusing rubber backing offers durability and resists tears as well as abrasion
- Withstands temperatures up to 176 °F (80 °C)
Product Highlights
The 3M Temflex 2155 splicing tape offers optimized adherence and is designed for low voltage electrical insulating and moisture sealing applications.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 2155
Technical Specifications
-
Brand: 3M
-
MPN: 2155
-
Manufacturer: 3M Company
-
Application: Electrical Maintenance, Insulation
-
Backing Material: Rubber
-
Backing (Carrier) Thickness (Metric): 0.76 mm
-
Dielectric Strength: 600 V/mil
-
Elongation at Break: 700%
-
Features: Vulcanizing, Self-sticking
-
Maximum Operating Temperature (Celsius): 80 °C
-
Maximum Operating Temperature (Fahrenheit): 176 °F
-
Minimum Operating Temperature (Celsius): 0 °C
-
Shelf Life: 3 Year
-
Specifications Met: RoHS 2011/65/EU, UL Listed
-
Tape Grade: General Use
-
Voltage Rating: 600 V
-
Overall Length (Imperial): 22 ft
-
Overall Length (Metric): 6.0 m
-
Overall Width (Imperial): 0.75 in
-
Overall Width (Metric): 19 mm
-
Tensile Strength (Imperial): 300.0 lb/in
-
Tensile Strength (Metric): 2068.4 kPa
-
Total Tape Thickness without Liner (Imperial): 30 mil
-
Total Tape Thickness without Liner (Metric): 0.76 mm
