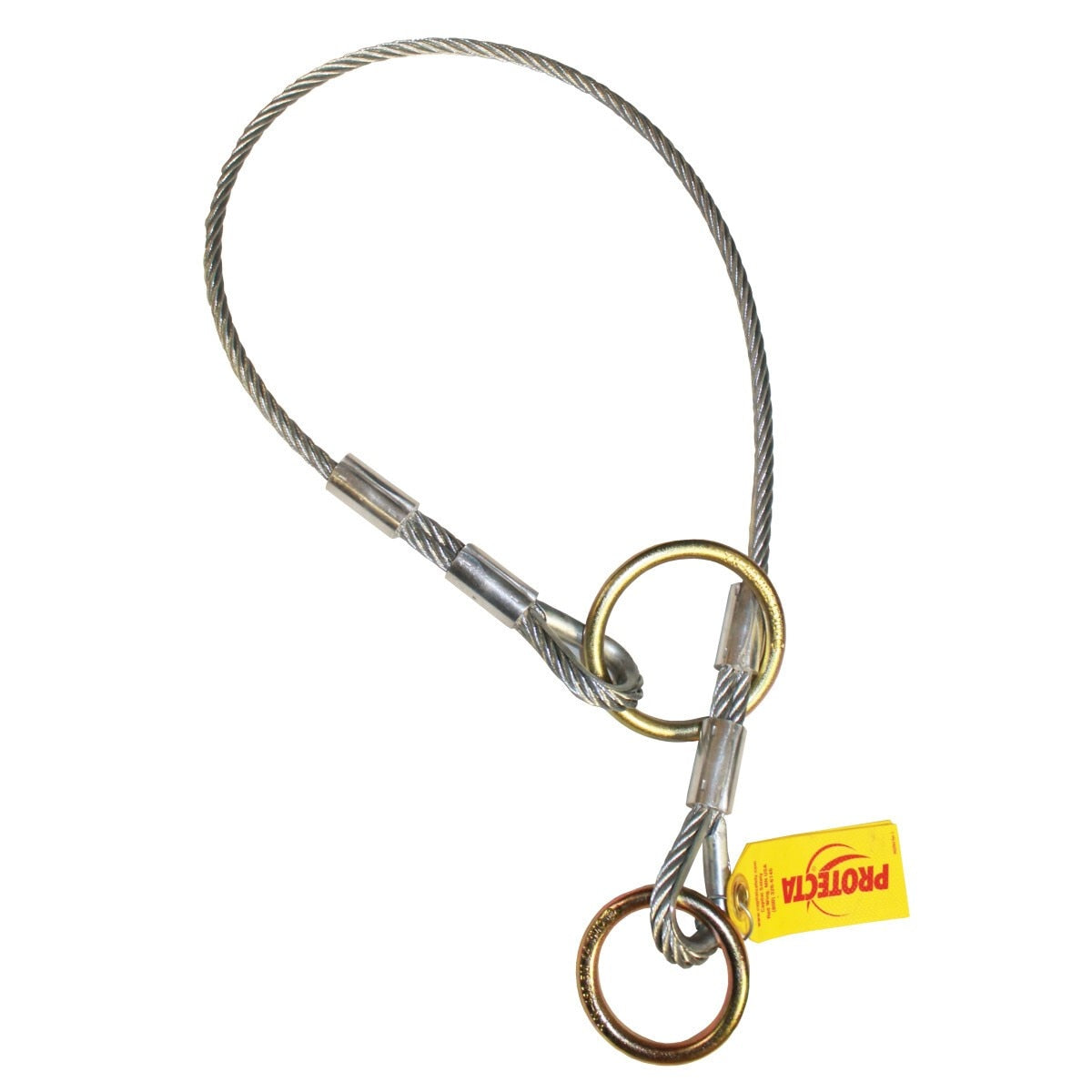

3M 2100193 Cable Tie-off Anchor Adapter 6 Ft 310 Lb

Product Description

The 3M 2100193 is a Pass-Thru Cable Tie-Off Anchor Adapter designed to create a secure anchorage point for personal fall arrest systems in applications where a fixed anchor is not available. Constructed from galvanized steel with a silver finish, it provides corrosion resistance in demanding job site conditions. The adapter extends 6 feet in length and supports a weight capacity of 310 pounds, meeting the load requirements for standard single-user fall protection rigging. It is installed by safety-trained workers and QSSP-certified riggers on commercial and industrial job sites.

This anchor adapter is suited for use on structural steel, beams, columns, and other overhead members where a pass-thru anchorage configuration is required. It is commonly used in construction, steel erection, roofing, and maintenance applications where workers need a temporary or portable tie-off point at height. The 6-foot length provides flexibility when routing the anchor around irregular structural members. Sold individually as a single unit.

Key Features

• Galvanized steel construction provides corrosion resistance in outdoor and industrial environments
• 6-foot length accommodates a range of structural member sizes and pass-thru configurations
• 310-pound weight capacity meets OSHA and ANSI Z359 single-user fall arrest anchor requirements
• Silver finish aids visual identification on site
• Compact, portable design allows repositioning as work progresses

Compatibility

Designed as an OEM-style anchorage component compatible with standard personal fall arrest systems requiring a pass-thru cable tie-off anchor point. Confirm compatibility with the connected harness, lanyard, or self-retracting lifeline before use.

Installation Notes

Installation should be performed by a qualified person familiar with fall protection standards including OSHA 29 CFR 1926 Subpart M and ANSI Z359 requirements. Inspect the anchor adapter and all connected components for damage before each use. Ensure the anchorage structure itself is capable of supporting the required load before attaching the adapter. Never connect more users than the rated capacity allows.

Technical Specifications

• Material: Galvanized Steel
• Length: 6 feet
• Weight Capacity: 310 pounds
• Color: Silver
• Product Weight: 3.25 pounds
• Sold As: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 2100193
