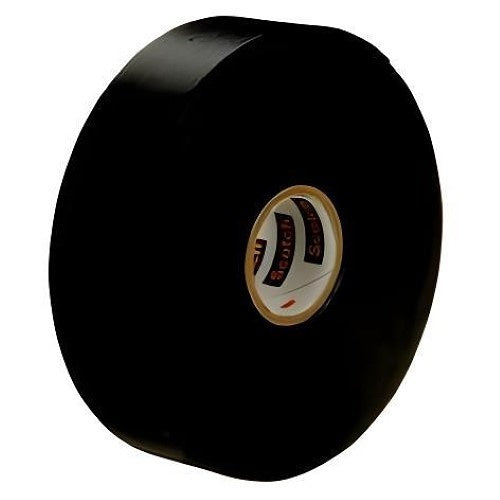

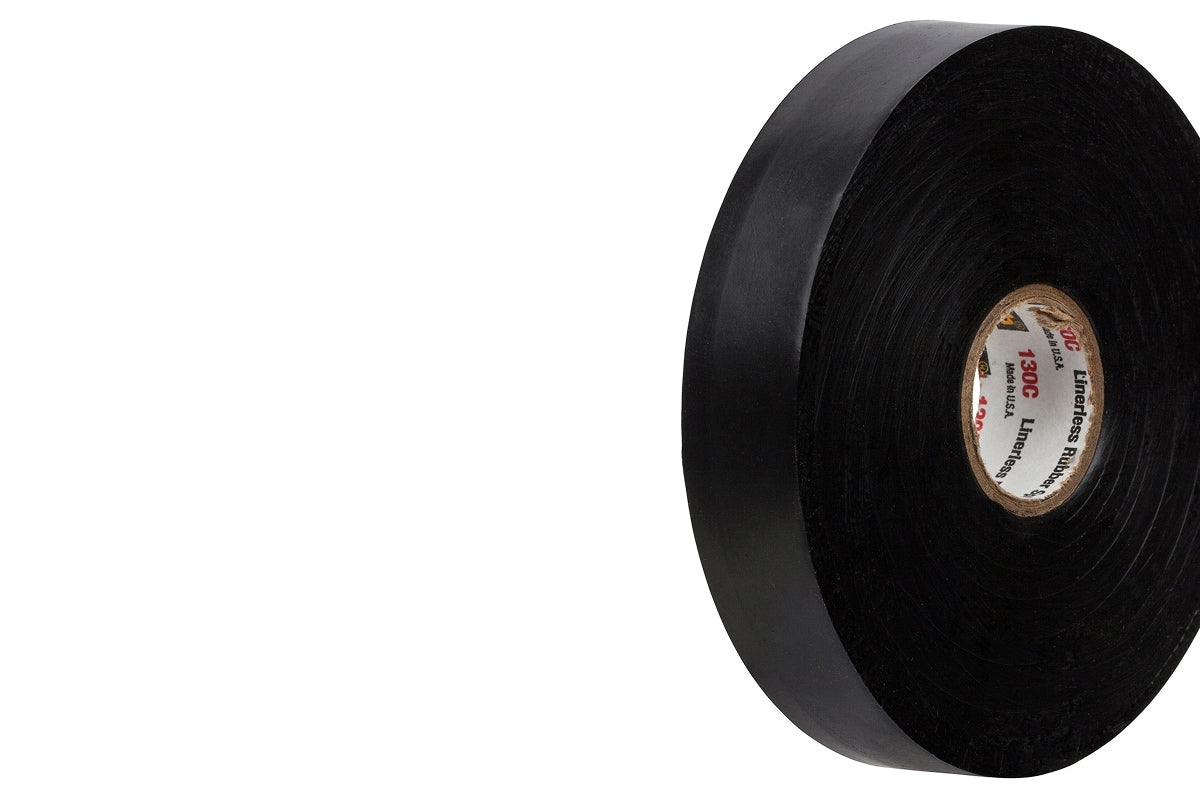

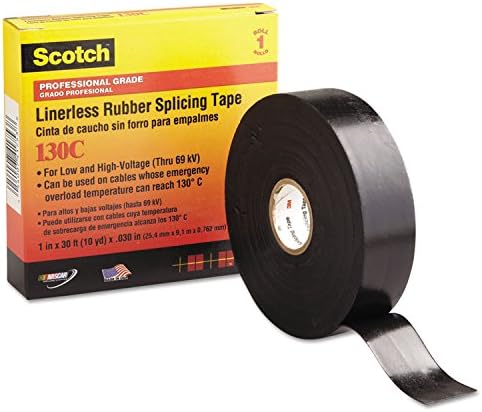

3M 130C Scotch Linerless Rubber Splicing Tape 1 inch x 30 ft

Product Description

The 3M 130C Scotch Linerless Rubber Splicing Tape is a premium-grade rubber tape designed for low- and high-voltage applications. Its self-fusing EPDM rubber backing and fusible adhesive interlayer help deliver a void-free, moisture-sealed build-up suitable for splicing and terminating solid dielectric insulated cables rated through 69 kV. It withstands temperatures up to 194 °F (90 °C).

• Provides primary insulation for solid dielectric cables up to 69 kV
• Offers excellent electrical and mechanical properties for moisture seal protection
• Highly conformable with a rubber-resin adhesive and self-fusing, ethylene propylene, rubber backing for UV resistance

Product Highlights

This linerless rubber splicing tape is ideal for splicing, terminating, end-sealing, bus bar insulation, and jacket repair applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 130C
• Country of Origin: USA

Technical Specifications

• Adhesive Type: Rubber, Acrylic
• Application: Insulation
• Application/Industry: Appliance and Fixture, Commercial Construction, Industrial Construction, Maintenance and Repair Operations, Communications, Mining, Solar, Utility, Wind Power
• Backing (Carrier) Material: Ethylene Rubber, Ethylene Propylene Rubber
• Backing (Carrier) Thickness (Imperial): 30 mil
• Backing (Carrier) Thickness (Metric): 0.76 mm
• Brands: Scotch®
• Dielectric Strength: 750 V/mil
• Elongation at Break: 850%
• Features: UV-resistant, Vulcanizing, Self-sticking
• Insulation Resistance: >10^15 ohms
• Maximum Operating Temperature (Celsius): 90 ℃
• Maximum Operating Temperature (Fahrenheit): 194 ℉
• Minimum Operating Temperature (Celsius): 0 ℃
• Product Color: Black
• Specifications Met: HH-I-553C, ASTM D-4325, RoHS 2011/65/EU, ASTM D-4388 Type 1, 2 & 3
• Tape Grade: Professional, Premium
• Voltage Rating: 69 kV
• Overall Length (Imperial): 30 ft
• Overall Length (Metric): 9.1 m
• Overall Width (Imperial): 1 in
• Overall Width (Metric): 25.4 mm
• Tensile Strength (Imperial): 250.0 psi
• Tensile Strength (Metric): 1723 kPa
• Total Tape Thickness without Liner (Imperial): 30 mil
• Total Tape Thickness without Liner (Metric): 0.76 mm
• Material: Rubber
• Number of Items: 1
• Recommended Uses For Product: Fleet and plant maintenance.
• Special Feature: Uv-Resistant
• Surface Recommendation: Miscellaneous
• Water Resistance Level: Water Resistant
• Size: 1 inch x 30 feet x 30 mils
• Item Thickness: 30 Mils
• Upper Temperature Rating: 194 Degrees Fahrenheit
• Compatible Material: Rubber
• Unit Count: 1.0 Count
• Item Resistance: High
• Foil Thickness: 30 Mils
• Adhesive Format: Linerless
• Adhesive Side Count: 1
• Adhesive Location: One side
• Product Type: Splicing Tape
• Application/Usage: Insulation
• Durability: UV Resistant
• Thickness: 30 mil
• Width: 1"
• Backing Material: Rubber
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
