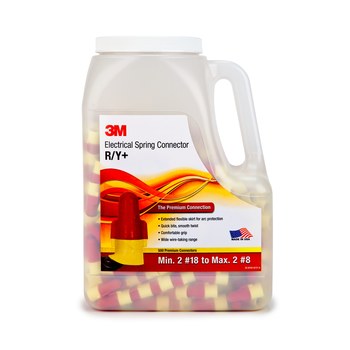

3M 054007-43155 Performance Plus R/Y Flame Retardant Twist-On Wire Connector Rounded Wing Shell Live Action/Square Wire Spring

Product Description

The 3M 054007-43155 Performance Plus R/Y Flame Retardant Twist-On Wire Connector features a rounded wing shell and live action/square wire spring. It is designed to electrically connect two or more conductor ends in a pigtail application and insulate the connection. It is suitable for 22 to 8 AWG aluminum or copper wire.

• Features polypropylene and thermoplastic elastomer insulation.
• New design allows easier installation, smooth, fast and easy-on the hands.
• Flexible skirts provide safety and protection against potential shock situations.

Product Highlights

This flame retardant twist-on wire connector simplifies wire connection with corrosion resistant coating and a secure, reliable connection.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-43155
• Country of Origin: USA

Technical Specifications

• Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
• Color: Red/Yellow
• Material: Spring Steel
• Mfg Standards/Approvals: C22.2 #188-MI983 File No LR15503 CSA Certified, CE Certified, IEC, RoHS Compliant, UL 486C UL File No E23438 Listed
• Series: Performance Plus R/Y
• Shell Style: Rounded Wing
• Spring Type: Live Action/Square Wire
• Temperature Rating: 221 deg F
• Type: Flame Retardant
• Voltage Rating: 600 VAC
• Wire Size: 22 to 8 AWG
• Wire Type: Aluminum/Copper
• Connector Type: Wire Connector
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 22 AWG
• Flame Retardant: Yes
• Cable Type: Solid, Stranded
• Connection Type: Twist-On
• Insulated/Non-Insulated: Insulated
• Insulation Material: Polypropylene/Thermoplastic Elastomer
• Length: 1.43 in
• Width: 0.76 in
