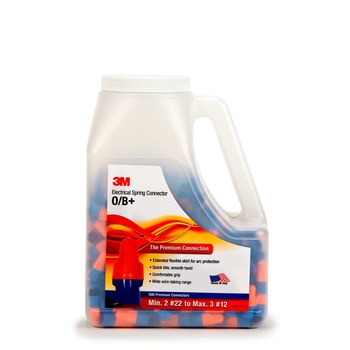

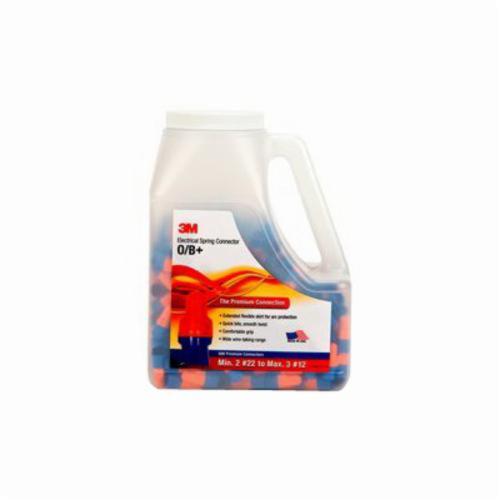

3M 054007-43153 Performance Plus O/B Flame Retardant Twist-On Wire Connector Rounded Wing Shell

Product Description

The 3M 054007-43153 Performance Plus O/B Flame Retardant Twist-On Wire Connector features a rounded wing shell and live action/square wire spring. It is designed to electrically connect two or more conductor ends in a pigtail application and insulate the connection. It supports wire sizes from 22 AWG to 12 AWG and has a voltage rating of 600 VAC.

• Features polypropylene and thermoplastic elastomer insulation.
• New design allows easier installation, smooth, fast and easy-on the hands.
• Flexible skirts provide safety provides protection against potential shock situations.

Product Highlights

This flame retardant twist-on wire connector simplifies the selection process for a wide range of wiring jobs and reduces inventory management.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-43153
• Country of Origin: USA

Technical Specifications

• Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
• Color: Blue/Orange
• Country of Origin: USA
• Material: Spring Steel
• Mfg Standards/Approvals: C22.2 #188-MI983 File No LR15503 CSA Certified, CE Certified, IEC, RoHS Compliant, UL 486C UL File No E23438 Listed
• Series: Performance Plus O/B
• Shell Style: Rounded Wing
• Spring Type: Live Action/Square Wire
• Temperature Rating: 221 deg F
• Type: Flame Retardant
• Voltage Rating: 600 VAC
• Wire Size: 22 to 12 AWG
• Wire Type: Aluminum/Copper
• Connector Type: Wire Connector
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 22 AWG
