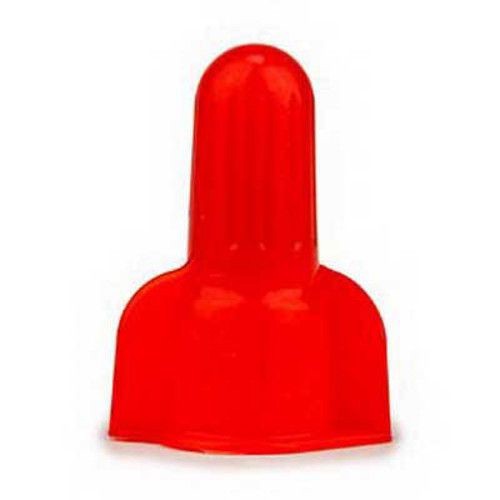

3M 054007-08162 512 Flame-Retardant Insulated Twist-On Wire Connector (500 count)

Product Description

The 3M 054007-08162 512 Flame-Retardant Insulated Twist-On Wire Connector features a winged shell and live-action/square wire spring, accommodating 22 - 8 AWG wires. Constructed with nylon insulation and a corrosion-resistant coating, it's designed for quick and easy spin-on installation. Suitable for electrically connecting two or more conductor ends or insulating a single wire end, with a voltage rating of 600 VAC and 1000V for signs, fixtures or luminaires.

• Nylon insulated for electrical safety.
• Accommodates a wide range of solid or stranded wire sizes.
• Corrosion-resistant coating ensures long-term performance.

Product Highlights

Flame-retardant twist-on wire connector with winged shell and live-action spring. Designed for connecting or insulating wire ends, offering generous expansion and corrosion resistance.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-08162

Technical Specifications

• Voltage Rating: 600 VAC
• Temperature Rating: 221 deg F
• Material: Steel Spring
• Standard & Approvals: C22.2 #188-MI983 File No LR15503 CSA Certified, IEC, 2011/65/EU RoHS Compliant, UL 486C UL File No E23438 Listed
• Spring Type: Live-Action/Square Wire
• Shell Style: Winged
• Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection or to Insulate a Single Wire End
