3M 051128-60037 Ring Terminal 600 V (10Bag/Case)

Product Description

The 3M 051128-60037 Highland Ring Terminal is designed for secure and reliable electrical connections. This terminal features a vinyl-insulated, butted-seam barrel that can endure a temperature range from negative forty to two hundred twenty-one degrees Fahrenheit. Constructed from electrolytic copper, it ensures efficient electrical conductivity and includes a tin-plated finish to prevent corrosion.

• Vinyl-insulated design for safety and performance
• Constructed from electrolytic copper for high conductivity
• Temperature range of -40 to 221 degrees F

Product Highlights

This terminal is essential for connecting wires in a safe and efficient manner, making it ideal for electricians and HVAC technicians.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Temperature Rating: -40 to 221 degrees F
• Finish: Tin Plated
• Barrel Size: 1/4 in

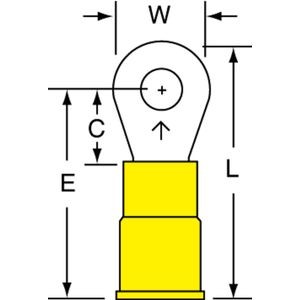

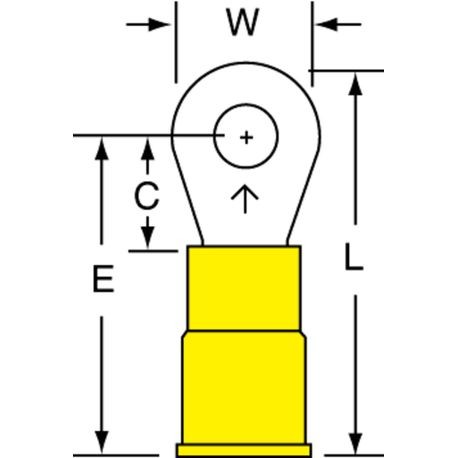

• Dimensions: 0.38 in W x 0.04 in THK
• Stud Size: NO 8
• Voltage Rating: 1000 VAC
• Material: Electrolytic Copper
• Conductor Size: 12 to 10 AWG
