Product Description

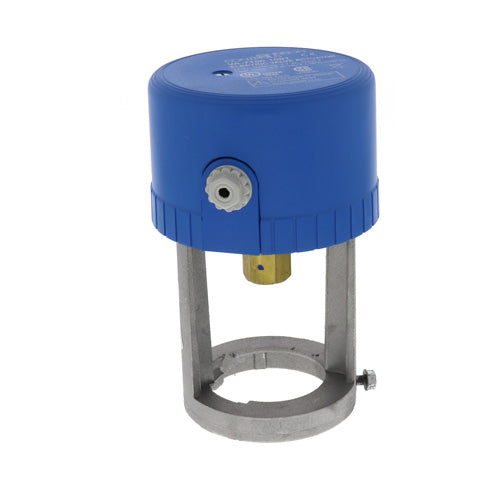

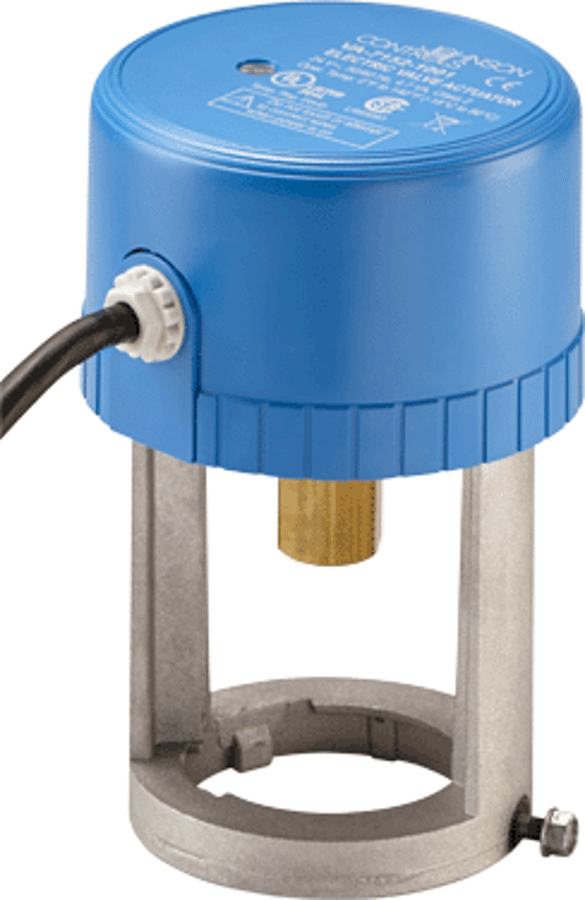

The Johnson Controls VA-7150-1001 is an electric valve actuator designed for HVAC applications. This actuator operates on a 24 VAC power supply and provides reliable and precise control for valve mechanisms with a force output of 90 lb-in.
- Provides a compact unit for efficient operation.
- Features a magnetic clutch for ensured valve closeoff.
- Selectable direct and reverse action simplifies setup and installation.
Product Highlights
The actuator is ideal for tasks requiring accurate motion control. Its robust construction ensures a long service life, making it suitable for various HVAC control systems.
Product Information
Standard Information
-
Brand: Johnson Controls
-
MPN: VA-7150-1001
Technical Specifications
-
Power Requirements: 24 VAC (20 to 30 VAC), 50/60 Hz
-
Electrical Connections: Screw terminals for 16 AWG maximum
-
Mechanical Output: 90 lb force (400N) minimum
-
Stroke Range: 25/32 inches (20 mm) maximum
-
Operating Conditions: 0 to 140°F (-18 to 60°C)
-
Enclosure: NEMA 2, IP42
-
Dimensions: 3.84 inches diameter x 6.06 inches high
