Description

Product Description

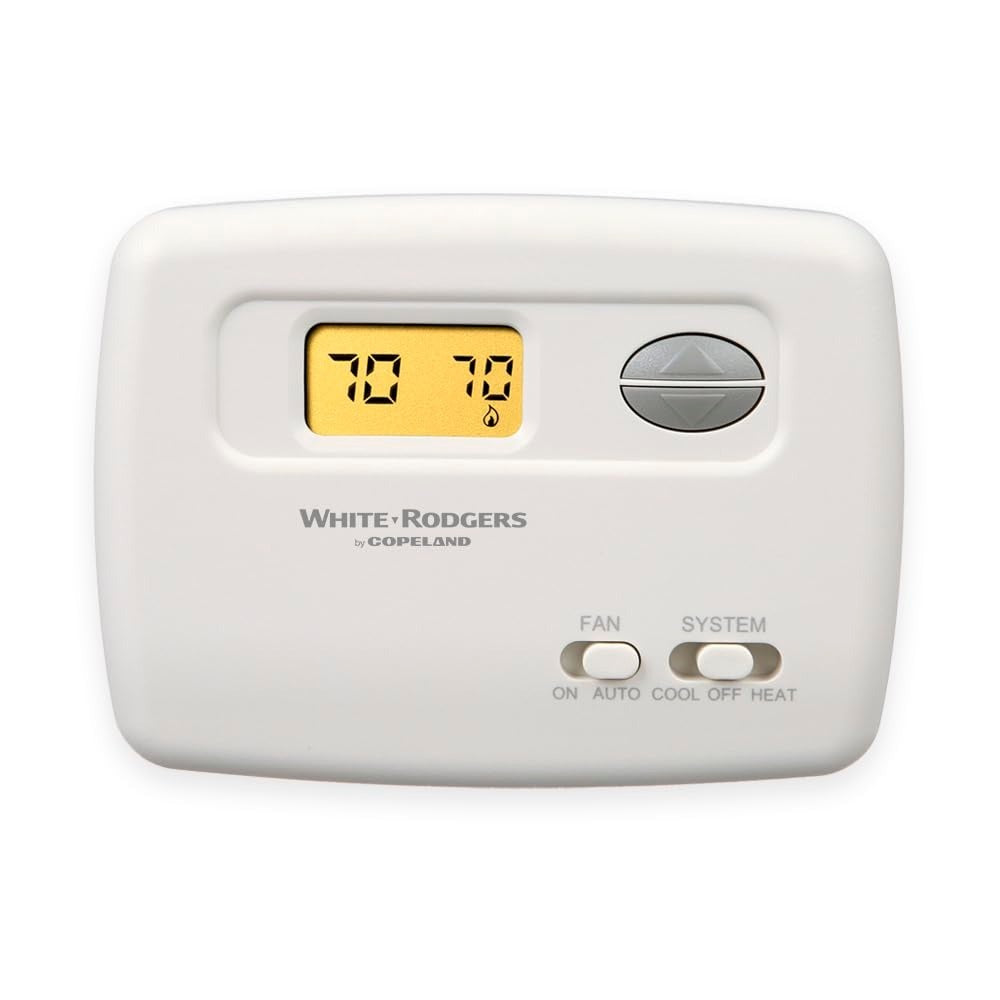

The White-Rodgers 1F78-144 is a 70 Series non-programmable digital thermostat designed for 24-volt HVAC systems. It provides basic temperature control using a digital display and button controls in a compact rectangular housing. The unit supports single-stage heating and cooling and can be battery powered for installations without a continuous 24V supply.

  • Digital LCD display with button controls; display size 1.2 sq in.
  • Designed for 24 Vac HVAC systems; compatible with millivolt systems and single-stage (1H/1C) operation.
  • Battery powered (2 x AAA) with horizontal mounting.

Product Highlights

Compact 70 Series non-programmable thermostat for 24V and millivolt single-stage systems with digital display and battery power.

Product Information

Standard Information

  • Brand: WHITE-RODGERS
  • Manufacturer Part Number: 1F78-144
Technical Specifications
Brand
White-Rodgers
MPN
1F78-144
Series
70 Series
Product Type
Non-Programmable Thermostat
Stages
1 Heat / 1 Cool (Single Stage)
Input Voltage
24 Vac
Millivolt Compatible
Yes
Power Source
Battery (2 x AAA)
Batteries Included
Yes
Battery Life
Up to 2 years (max.)
Control Type
Button control
Display Type
Digital LCD
Display Size
1.2 square inch
Display Backlight
No
Current Rating
1 A (per terminal), 1.5 A (all terminals combined)
Power Rating
Approx. up to 36 VA (typical for 1.5 A @ 24 Vac) - listed as 1.5 to 45 W in source
Frequency
50/60 Hz
Temperature Rating (Ambient)
32 to 105 F
Setpoint Temperature Range
45 to 90 F
Display Temperature Range
32 to 99 F
Humidity Rating
90% non-condensing
Terminal Designations
RC, RH, W, Y, O, B, G
Mounting Type
Horizontal
Approval
NEC Class II
Dimensions (Product)
5-1/8 in W x 1-1/8 in D x 3-13/16 in H
Package Dimensions
6.34 x 4.29 x 1.85 inches
Weight (packaged)
7 ounces
Display Orientation / Style
Horizontal
Applications
Conventional air conditioning; gas, oil, electric heat; heat pump; millivolt heat systems; recreational vehicle
Included Items
Thermostat, instructions, mounting hardware, (2) AAA batteries, wire labels
