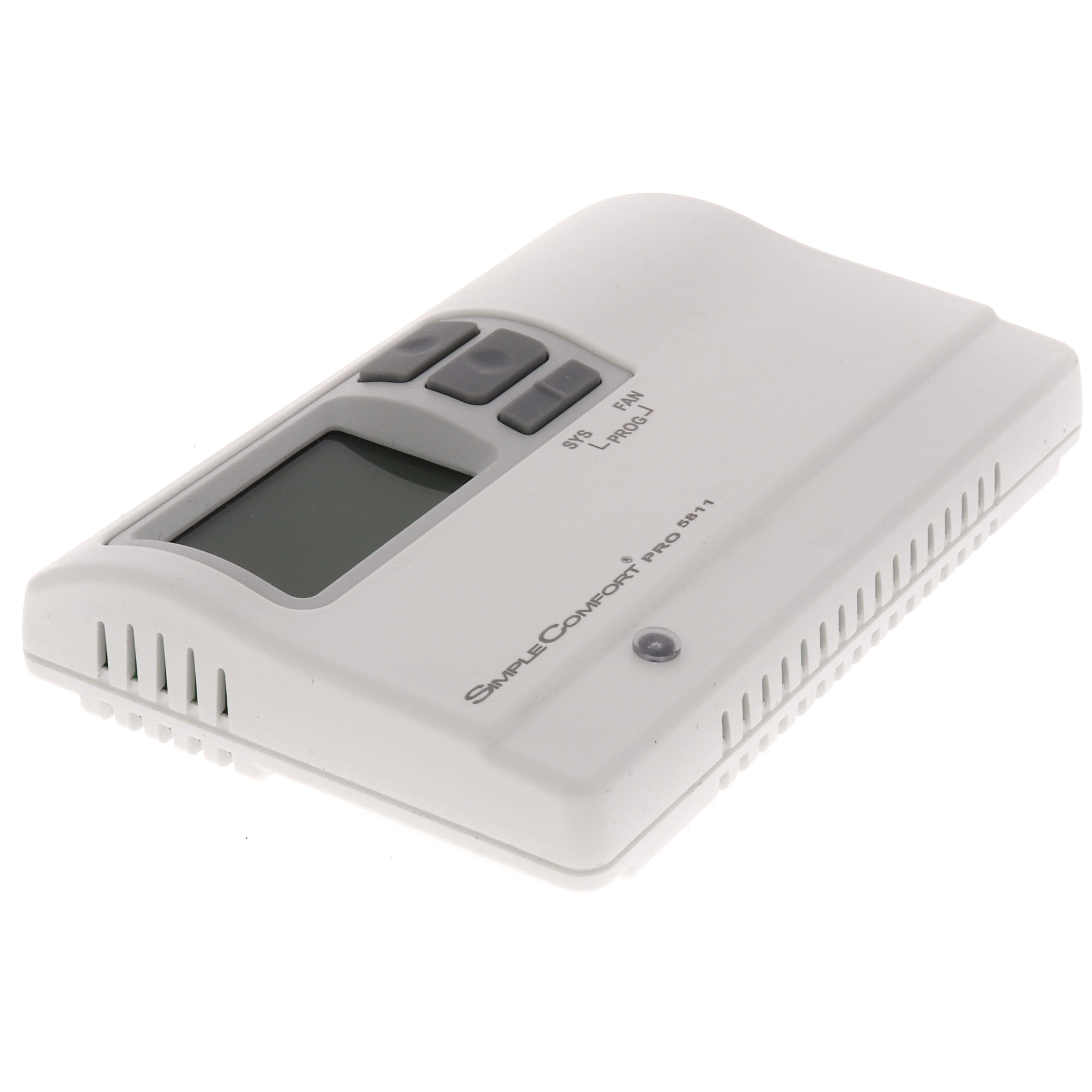

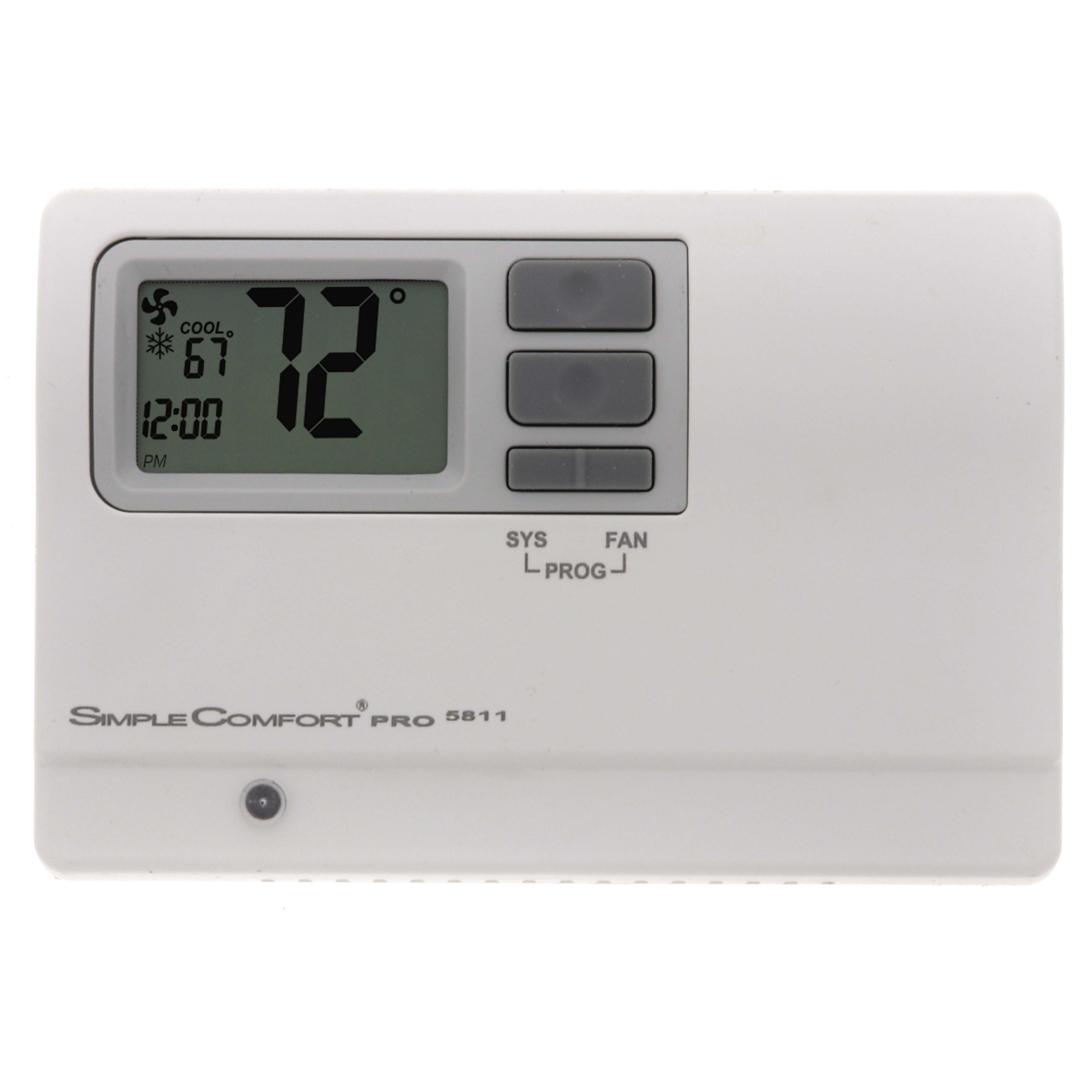

ICM Controls SC5811 2stage1H/1C, 7-dayProg, Auto C/O

Product Description

The ICM Controls SC5811 Multi-Stage Programmable Thermostat is an efficient and reliable choice for controlling temperature in various environments. It provides flexible 7-day, 5-2-day and 5-1-1-day programmable options, suitable for two-stage heating and cooling systems. This thermostat is designed to optimize comfort and energy savings.

• Flexible programming options
• Two-stage heating and cooling
• Backlit display

Product Highlights

Optimized for energy efficiency and precise temperature control, the SC5811 ensures a comfortable environment. Suitable for commercial and industrial applications.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: SC5811
• Programmable: Yes

Technical Specifications

• Voltage: 18-32 VAC
• Stages Heat: 2
• Stages Cool: 2
• Width: 5.5 inches
• Height: 1.2 inches
• Length: 3.75 inches
• Accuracy: +/- 1°F (0.5°C)
• Weight: 0.35 lbs
• Display: Yes
• Backlit: Yes
• Mounting: Wall Mount
• Power Method: AC
• Auto Changeover: Yes
• Digital-Programmable: Yes
• Indoor Remote Sensor: No
• Heat Pump Compatible: Yes
• Daylight Savings Time Ready: No
• Programmable Fan: Yes
• Display Options: LCD
• Manual: Yes
• Temperature Range: 45°F to 90°F (7.22°C to 32.22°C)
• Terminal Designations: R, C, W1/O/B, Y1, W2, Y2, G, S1, S2
• Electrical Rating: 24 VAC
• Electrical Connection Type: Spring Terminal
• Prop 65: Yes
• Country of Origin: USA
