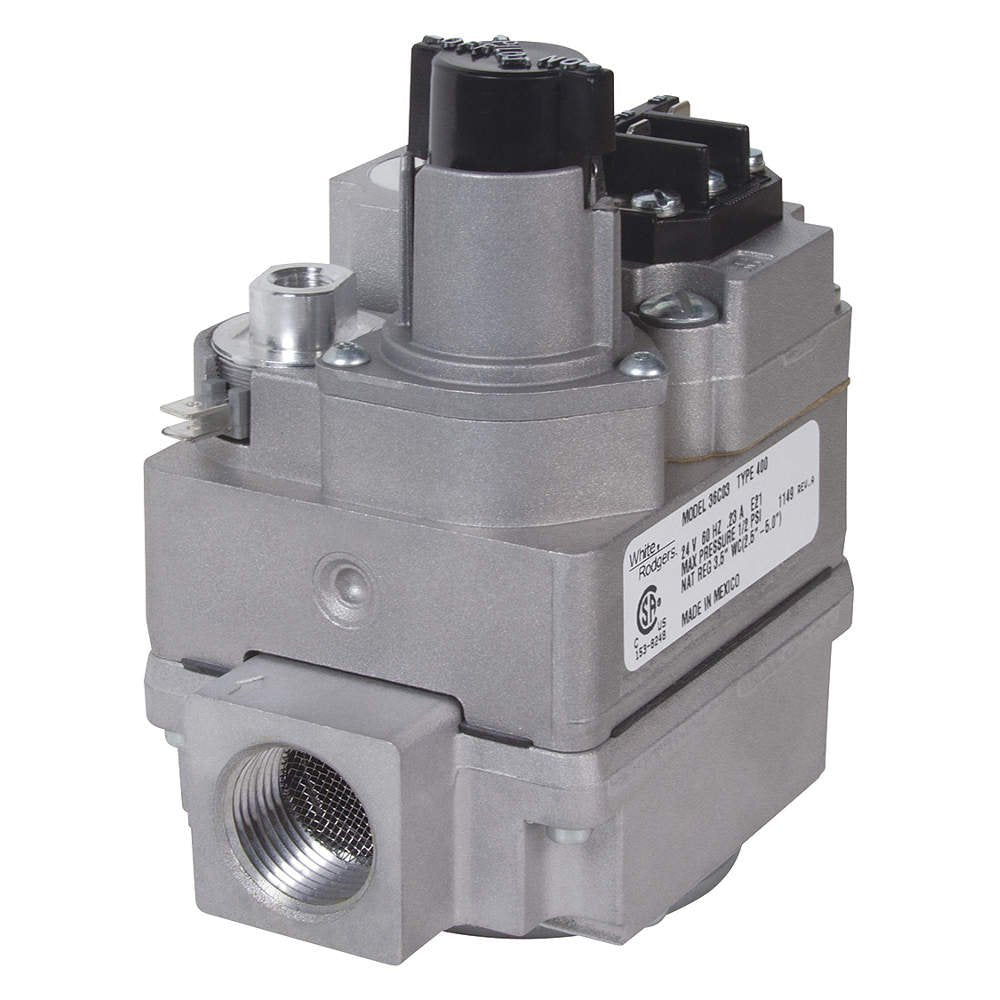

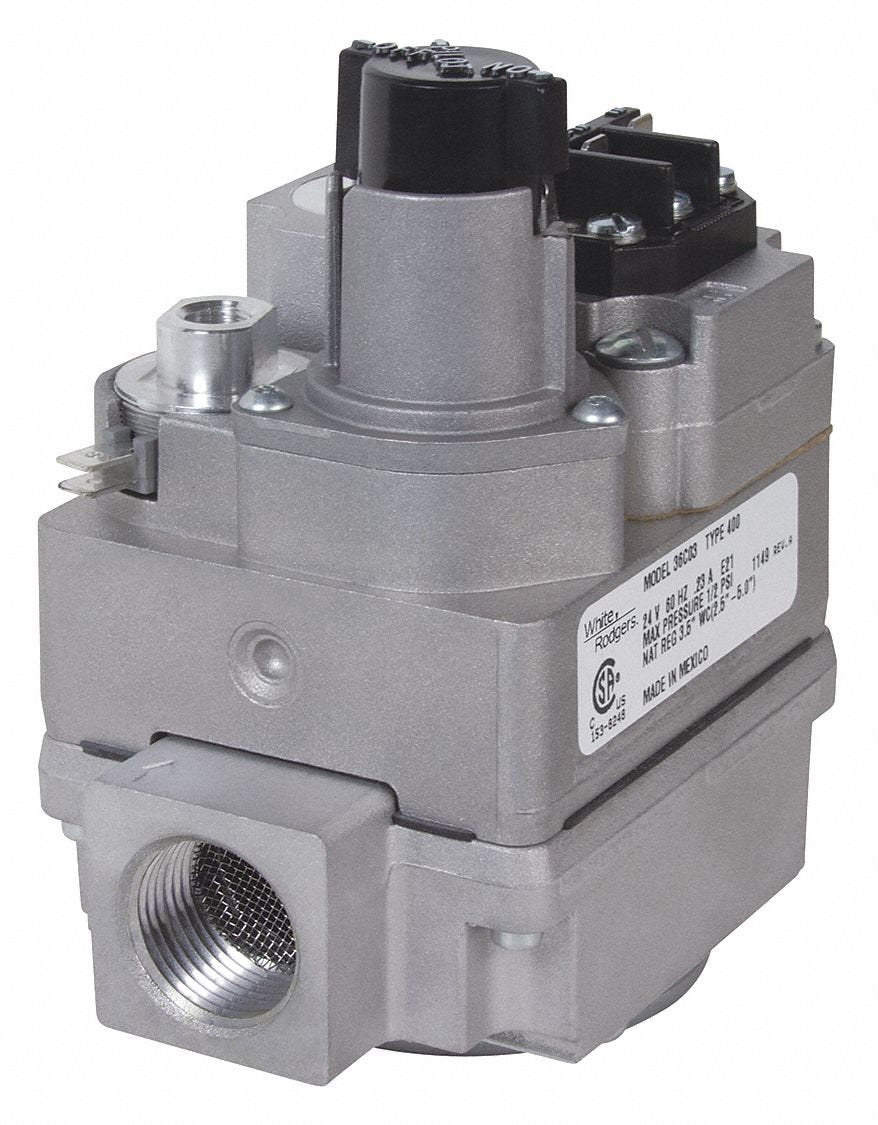

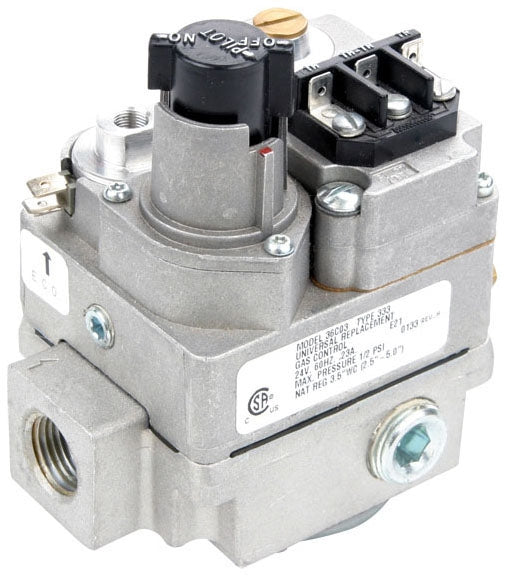

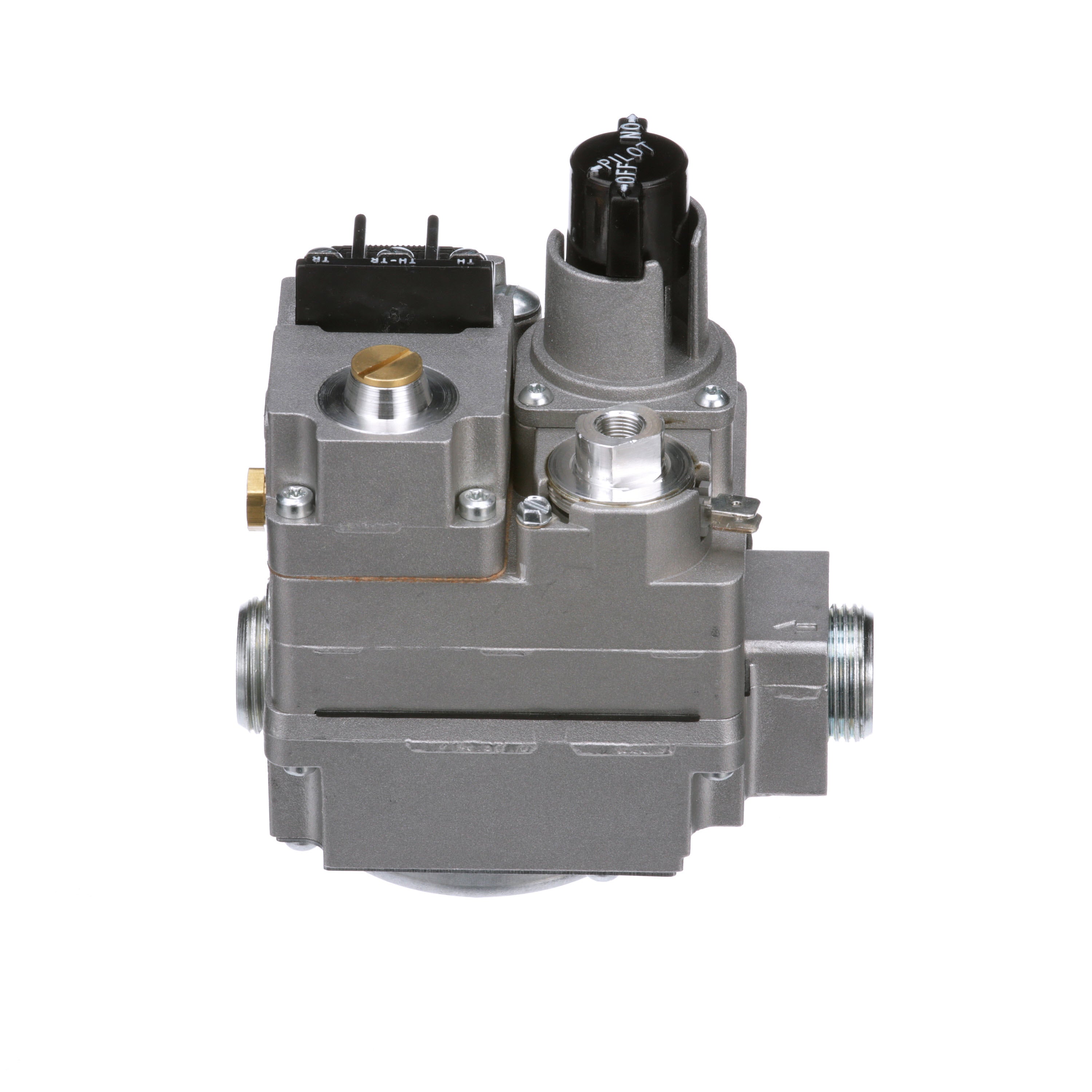

White-Rodgers 36C03-400 Gas Valve 24V 3/4 inches x 3/4 inches

WHITE-RODGERS
SKU: 36C03-400
Availability: In Stock

Ships same day if ordered by 12 pm

Same-day delivery
Greater Boston, MA & Chicago, IL areas
If ordered prior to 4pm local time (Mon-Fri)
$196.44
$196.44
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The White-Rodgers 36C03-400 is a gas valve designed for standing continuous pilot systems. This 24V gas valve features a 3/4" x 3/4" size and includes a pressure regulator, 100% shut-off automatic pilot, and main operator. It is designed for use with standing pilot systems and replaces many existing models.

  • Designed for standing pilot systems
  • Includes LP conversion kit
  • Features a pressure regulator and automatic pilot

Product Highlights

This White-Rodgers gas valve ensures safe and reliable operation for gas-fired appliances. It is a crucial replacement part for furnaces and boilers.

Product Information

Standard Information

  • Brand: WHITE-RODGERS
  • Manufacturer Part Number: 36C03-400
  • Country of Origin: Mexico
Technical Specifications
Voltage
24 VAC
Item model number
36C03-400
Part Number
36C03-400
MPN
36C03-400
UPC
786710547706
Brand
WHITE-RODGERS
Ignition Type
Standing Pilot
BtuH Capacity
280,000
Valve Type
Fast Opening
Coil Volts
24
Gas Type
NG/LP
Inlet Size
3/4 in
Outlet Size
3/4 in
Inlet Pressure Tap
Yes
Ambient Temp. Range
40 Degrees to 175 Degrees F
Amps AC
0.41 A
Pressure Setting Range
2.5 to 5.0 in wc
For Use With
Furnaces
Manufacturer
White-Rodgers
Product Type
VALVE
Number of Items
1.0
Cycle/Hertz
50/60 Hz
Fuel Type
LP
GTIN
00786710547706
Includes

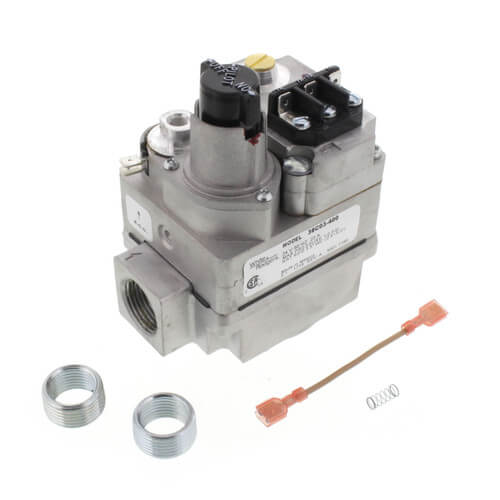

Includes Gas Valve, LP Conversion Kit, Reducer Bushings, Instructions
Height
5
Length
6.5
Width
3.75
Stage
Single
Country of Origin
MEX
Item Number
36C03-400
Applicable Standard
CSA (Canada and US)
End Connection
Female Threaded x Female Threaded
Inclusions Features
Convertible Natural/Liquid Propane, Liquid Propane Conversion Kit, Line Interrupter, Reducer Bushing Kit, Inlet Pressure Tap
Input Supply Rating
24 Volt at 0.23 Amp
Manufacturer Name
White-Rodgers
Manufacturer Part Number
36C03-400
Nominal Size
3/4 Inch
Pressure Rating
1/2 PSI
Series/Model
36C
Temperature Rating
-40 to 175 Deg F
Type
Straight Through, Fast Opening, Standing Plot, 1-Stage
Ambient Temperature
-40°F (-40°C) Min, 175°F (80°C) Max
Amperage
0.23 Amps
Flow Direction
Straight Through
Frequency
60 Hz
Material
Brass
Inlet Connection Type
Flange
Number of Ports
2
Specification Met
ECO, Potential others
Is Discontinued By Manufacturer
No
