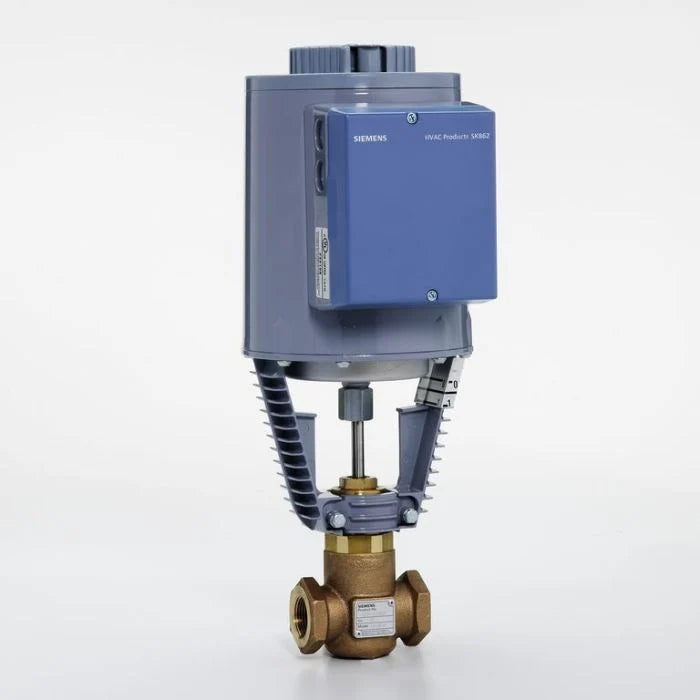

Siemens 291-03134 Globe Valve Assembly, 2 Way, 2 in.

Product Description

The Siemens 291-03134 is a globe valve assembly designed for HVAC control systems. This two-way valve features a connection size of two inches and a flow coefficient of 40 Cv. It is equipped with a direct-coupled actuator powered at twenty-four volts AC and a power consumption of seventeen VA. The spring return mechanism allows for reliable operation.

• NPT threaded connection
• Normally closed, modulating control with input options of 0 to 10 VDC or 4 to 20 mA
• Suitable for saturated steam, water, and glycol solutions

Product Highlights

This valve is ideal for managing flow in HVAC systems, ensuring optimal performance and control.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 291-03134

Technical Specifications

• Housing: NEMA 1
• Service: Saturated steam, water, glycol solutions up to 50%
• Power Consumption: 17 VA
• Close-Off Pressure: 126 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: 5 F to 130 F (-25 C to 150 C)
