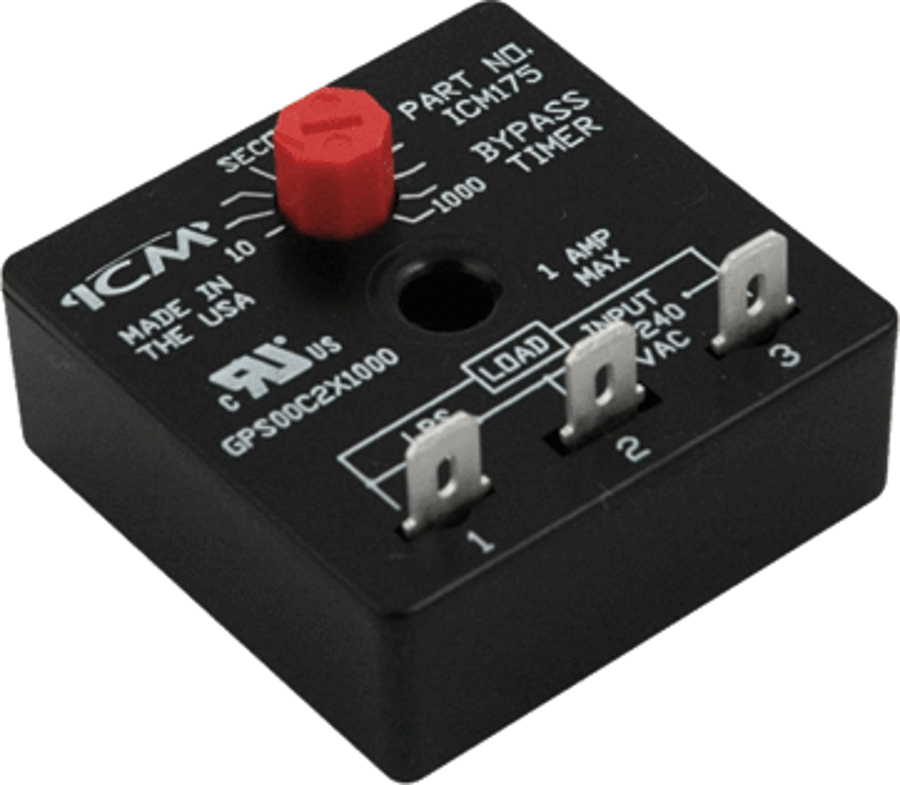

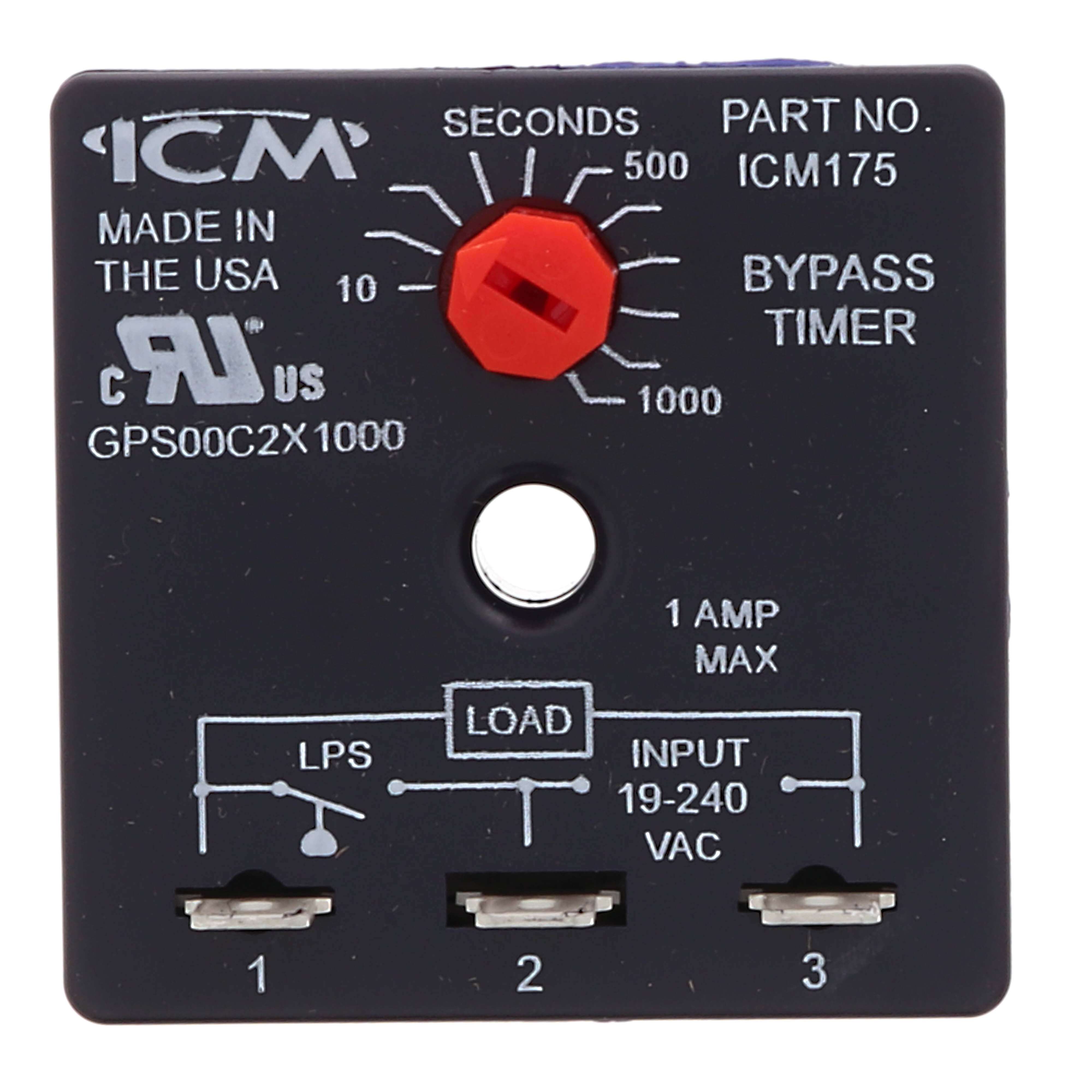

ICM ICM175B Bypass Timer 240VAC 10-1000 Seconds Adjustable

Product Description

The ICM bypass timer model ICM175B operates at 240VAC and is designed for a range of timing applications. This device features an adjustable time delay from ten to one thousand seconds. It is suitable for various HVAC controls and aids in bypassing switches during start-up. It is ideal for situations where controlling the timing of operations is necessary.

• Adjustable timing from ten to one thousand seconds
• Universal AC voltage of eighteen to two hundred forty volts
• Bypass capability supports low pressure switch operations

Product Highlights

It is built for reliable performance in industrial HVAC applications.

Product Information

Standard Information

• Brand: ICM Controls
• Part Number: ICM175B

Technical Specifications

• Voltage: 18-240 VAC
• Amperage: 1 Amp max
• Frequency: 50-60 Hz
• Time Delay: 10-1000 Sec Knob Adjustable
• Weight: 0.1 lbs
• Dimensions: 2 x 2 inches
• Replaces: TMR00159, 40E53, 32395, TDP68 GPS00C2X1000
• Application: HVAC systems, industrial automation, and process timing
