Product Description
The Hoffman 402011 Thermostatic Steam Trap features a straight pattern design optimized for institutional, commercial, and residential heating system applications. Engineered for efficiency and reliability, this device operates under a maximum pressure of 25 pounds per square inch.
- 25 PSI operating pressure; suitable for low to moderate water hammer conditions.
- Constructed with robust stainless steel components.
- Includes a replaceable Dura-Stat module for extended operation.
Product Highlights
Known for its subcooling capability, the Hoffman 402011 enhances system efficiency by preventing flash steam losses in low-pressure systems. It meets the rigorous MIL specification WW-T-696-E Type V, Style A, Classes 1 and 2, ensuring top performance and durability.
Product Information
Standard Information
-
Brand: Hoffman
-

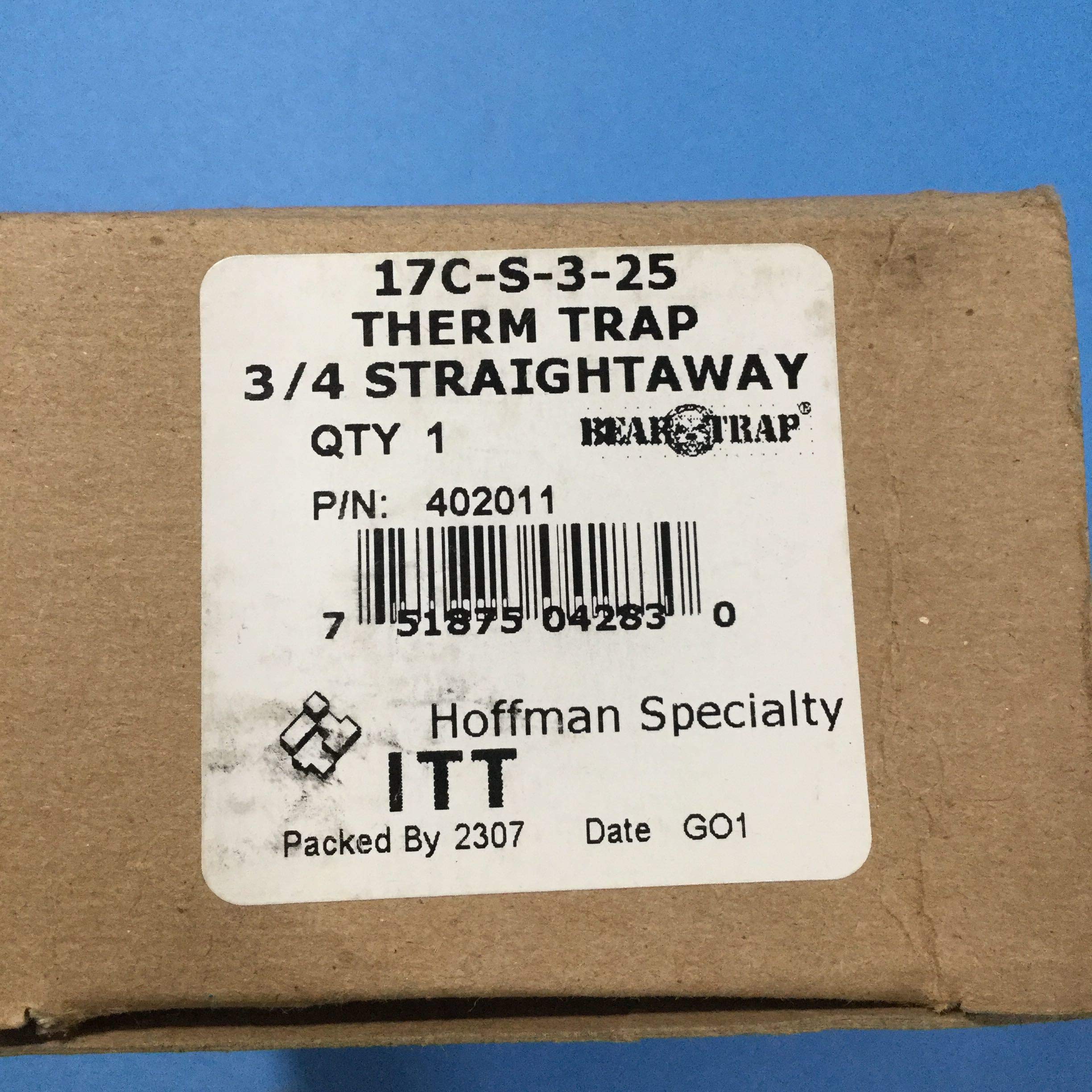

MPN: 402011
Technical Specifications
-
Product Type: Mechanical Components, specifically Steam Traps
-
Maximum Operating Pressure: 25 PSI
-
Connection Type: Threaded
-
Body Pattern: Straight Away
-
Series: 17C
-
Weight: 1.8 pounds
-
Dimensions: 4.5 inches depth, 3.75 inches width, 2.5 inches height
